Tractor · Unverified

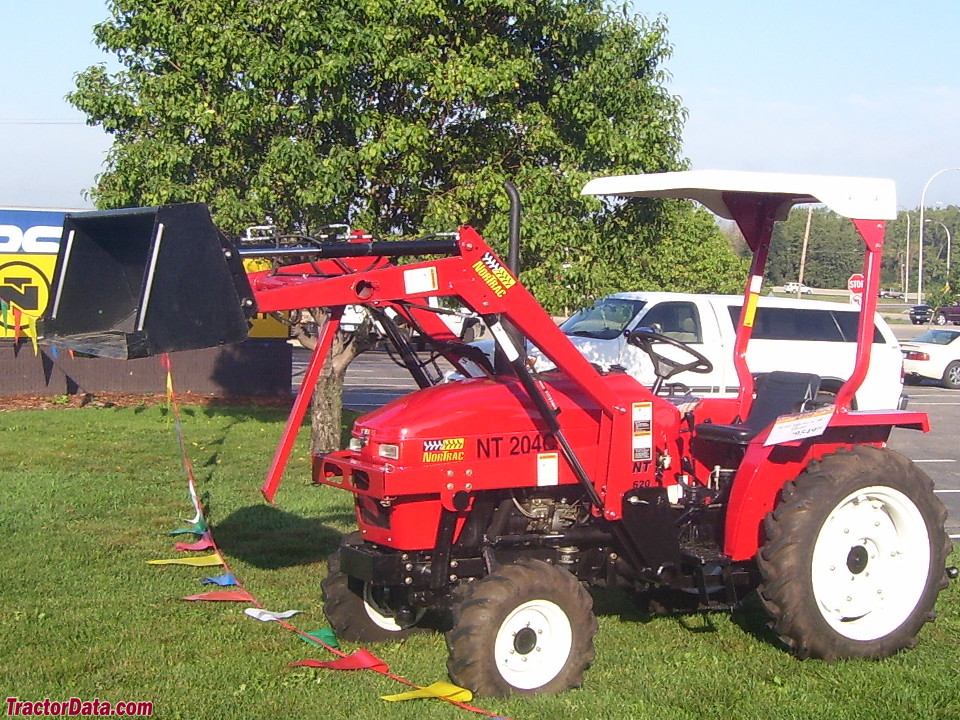

NorTrac NT-204C
NorTrac NT-204C — Compact Utility tractorJinma built · 19 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
19 hp
Weight
1240 kg
Hover a source tag to verify
Overview
DistributorNorTracReference
ManufacturerJinmaReference
Compact Utility tractorReference
Built in ChinaReference
Original price$7,000 (2009)Reference
Four-wheel driveReference
SteeringpowerReference
ROPS with canopy.Reference
Engine
Jinma 1.4L 3-cyl dieselReference
Engine14.9 kWReference
Jinma 380Reference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement1.4 LReference
Power14.9 kWReference
Rated RPM2300Reference
Oil capacity3.5 LReference
Coolant capacity10.0 LReference
Transmission
6-speedReference
Gears6 forward and 2 reverseReference
Oil capacity14.0 LReference
PTO & Hydraulics
PTO (claimed)14.2 kWReference
Hydraulic system9.1 LReference
Capacity9.1 LReference
Steering flow32.6 lpmReference
Steering press.193.7 barReference
Rear TypeIReference
Rear lift366 kgReference
Rear PTOlive (two-stage clutch)Reference
Rear PTO Type540/1000Reference
Capacities
Fuel21.0 LReference
Front axle4.5 LReference
Dimensions
Wheelbase162 cmReference
Weight1240 kgReference
Front tire6.00-12Reference
Rear tire8.3-24Reference
Ag front6.00-12Reference
Ag rear8.3-24Reference
Lawn/turf front26x7.5-12Reference
Lawn/turf rear11.3-20Reference
Length269 cmReference
Width121 cmReference
Height213 cmReference
Ground clearance29 cmReference
NorTrac NT-204C attachments
front-end loaderReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
