The NorTrac NT-824 is a tractor model with a rated output of 73 hp, positioning it roughly in the middle of its class for power. It is equipped with a 4-cylinder diesel liquid-cooled engine, which drives through a four-wheel drive system with a 16-speed gearbox. The listed weight of the tractor is 3989 kg, and it is designed for use on land areas of up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
73 hp
Weight
3989 kg
Catalogue coverage
Variants represented
2
Richest spec table
34 rows
Recorded power
73 hp
Recorded weight
3989 kg
Transmissions
16-speed
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerNorTracReference
Four-wheel driveReference
standard with A/CReference
Engine
Perkins 3.7L 4-cyl dieselReference
Fuel tank129.1 LReference
Engine61.1 kWReference
Perkins 1004Reference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Power61.1 kWReference
Rated RPM2200Reference
Oil capacity3.6 LReference
Coolant capacity12.0 LReference
Transmission
16-speedReference
Gears16 forward and 8 reverseReference
PTO & Hydraulics
PTO (claimed)54.4 kWReference
Total flow38.2 lpmReference
Rear TypeIIReference
Rear lift1733 kgReference
Rear PTOliveReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase219 cmReference
Weight3989 kgReference

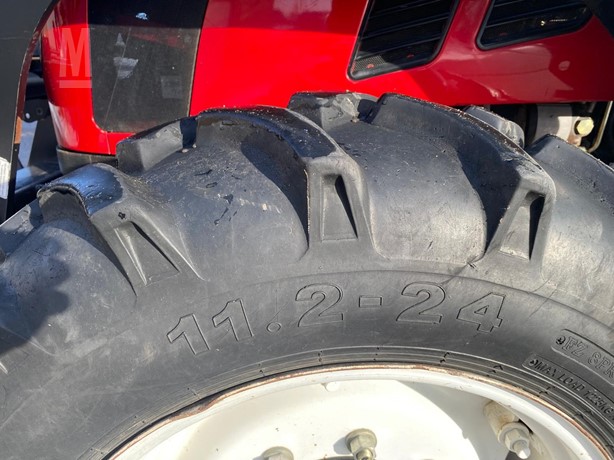

Front tire11.2-24Reference
Rear tire16.9-34Reference
Ag front11.2-24Reference
Ag rear16.9-34Reference
Ag rear13.6-38 (rice)Reference
Length439 cmReference
Width203 cmReference
Height280 cmReference
Ground clearance37 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
