Tractor · 1964Unverified

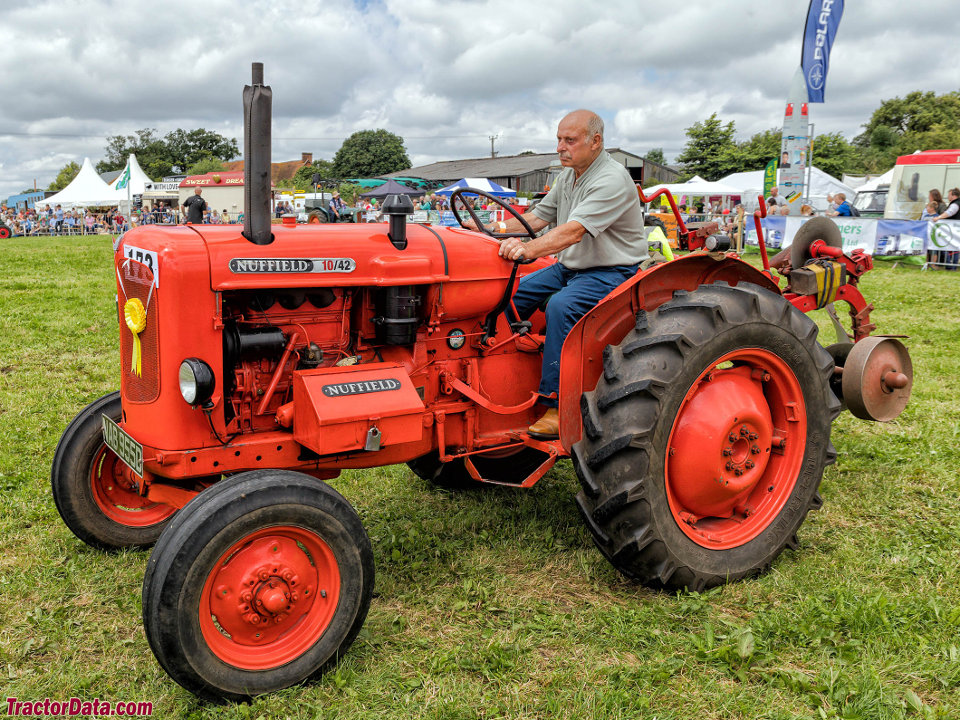

Nuffield 10/42
Nuffield 10/42 — Utility tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Max power
24.4 kW
Weight
2417 kg
Hover a source tag to verify
Overview
ManufacturerNuffieldReference
Utility tractorReference
Two-wheel driveReference
SteeringmanualReference
Independent mechanical dry disc brakesReference
Engine
BMC 2.8L 3-cyl dieselReference
Drawbar (claimed)24.6 kWReference
Drawbar (tested)24.4 kWReference
BMCReference
dieselReference
3-cylinderReference
liquid-cooledReference
Displacement2.8 LReference
Bore/Stroke100 x 120 mmReference
Air cleaneroil bathReference
Compression16.5:1Reference
Rated RPM2000Reference
Starter volts12Reference
Power at rated engine speed29.1 kWReference
Max power24.4 kWReference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)29.1 kWReference
PTO (tested)29.1 kWReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540Reference
Power at rated PTO speed23.2 kWReference
Dimensions
Weight2417 kgReference
Front tire6.00-16Reference
Rear tire14.9-28Reference
Ag front6.00-16Reference
Ag rear14.9-28Reference
Operating weight2417 kgReference
Ballasted weight4100 kgReference
Test results
Diesel 10-speed 2WDJune 25 - July 3, 1965Link: Nebraska Tractor Test 905 fileReference
PTO performanceReference
Fuel use9.8 l/hourReference
Fuel use7.6 l/hourReference
Drawbar performanceReference
Gear 5 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
