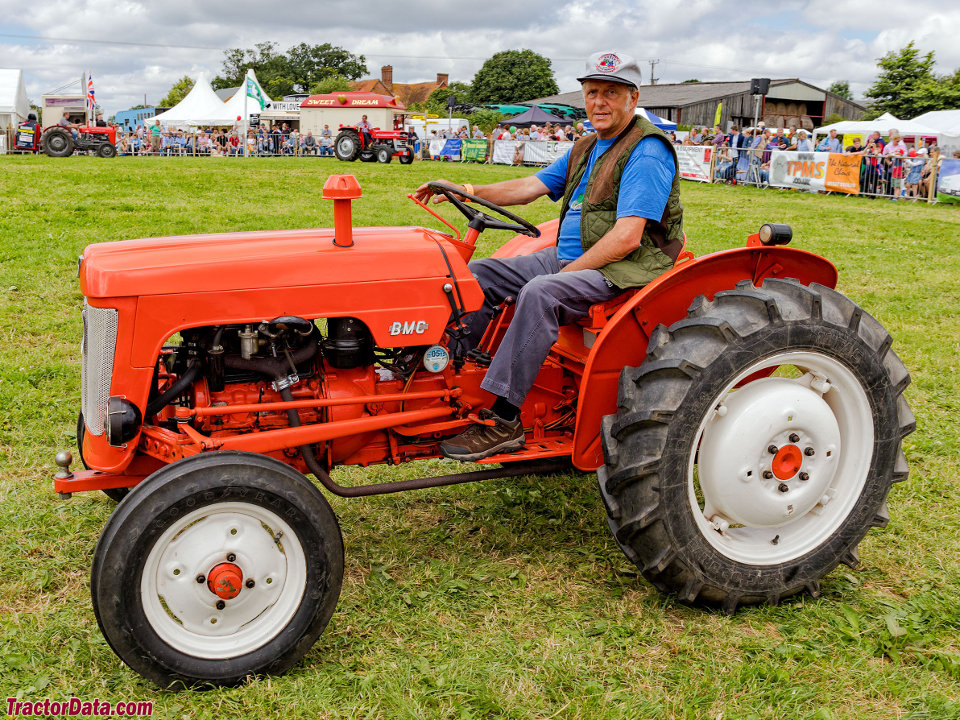

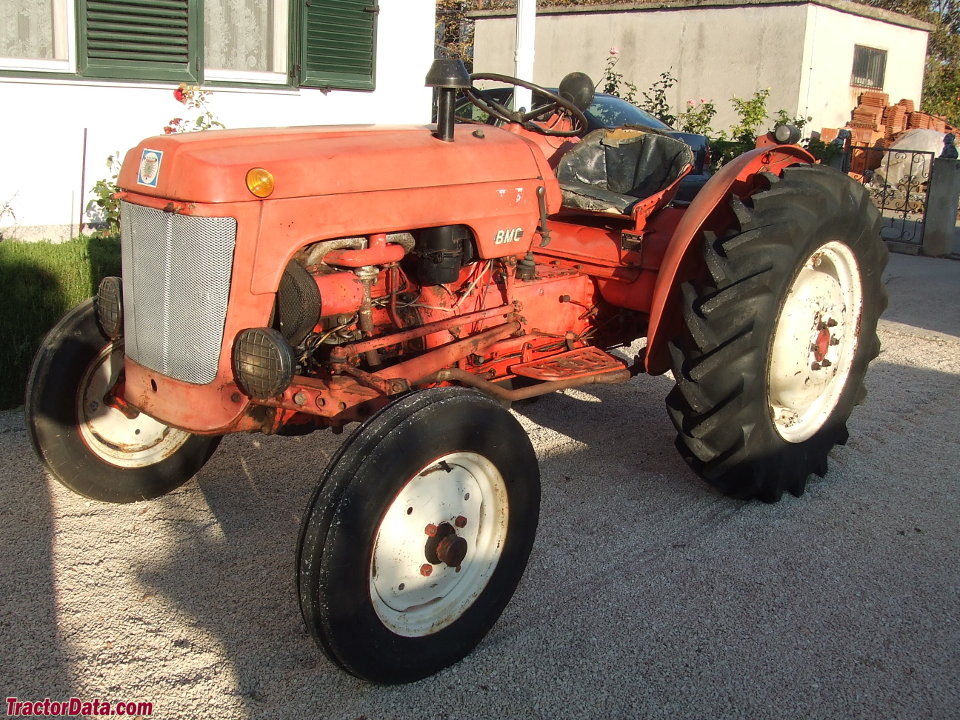

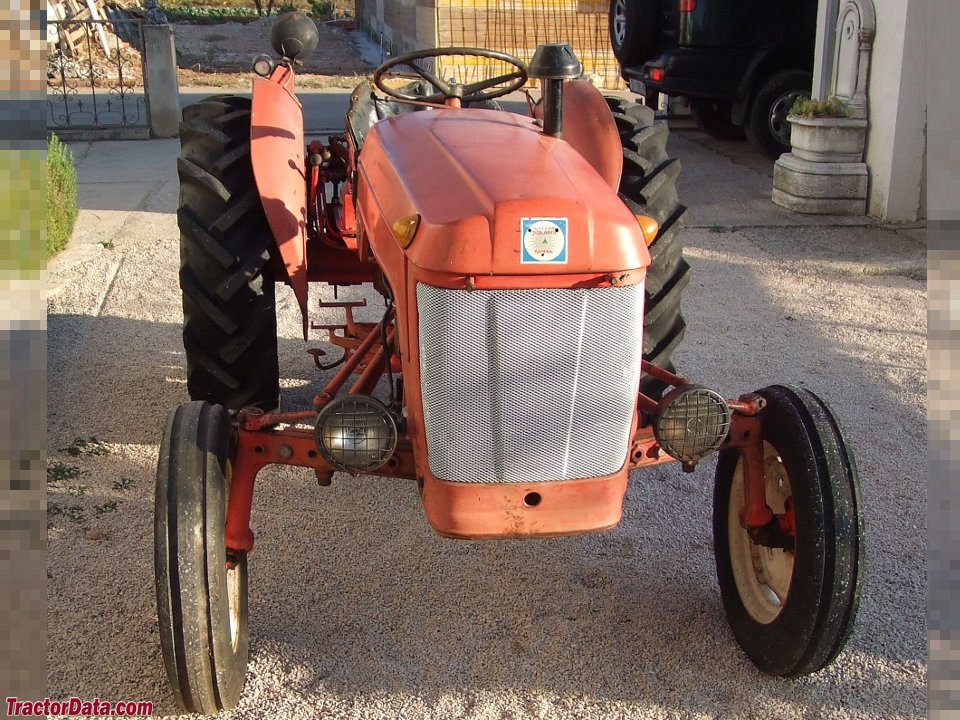

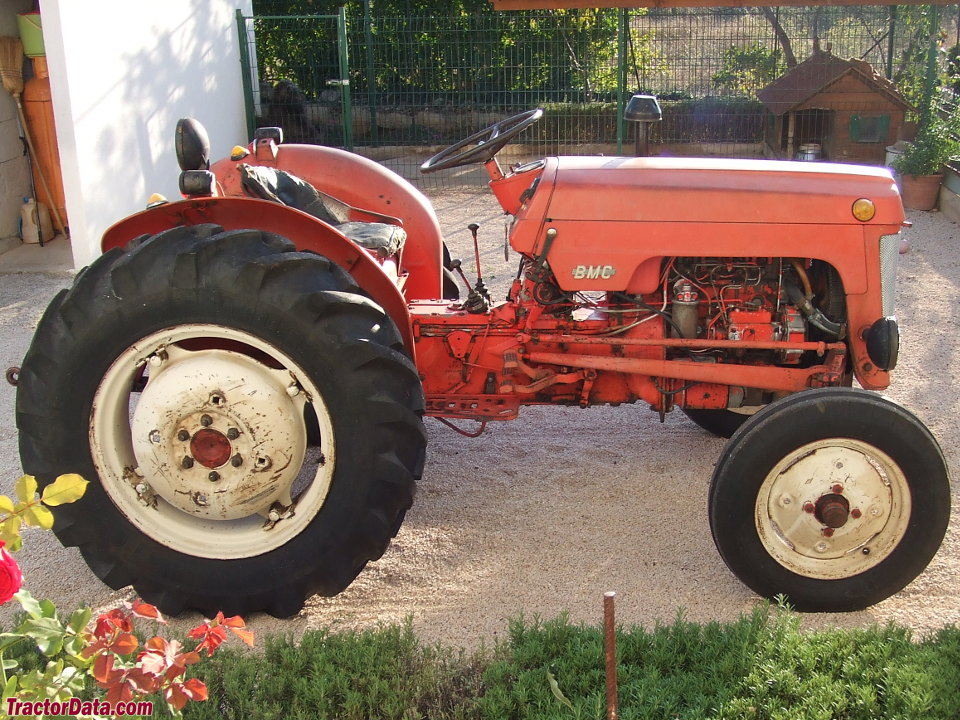

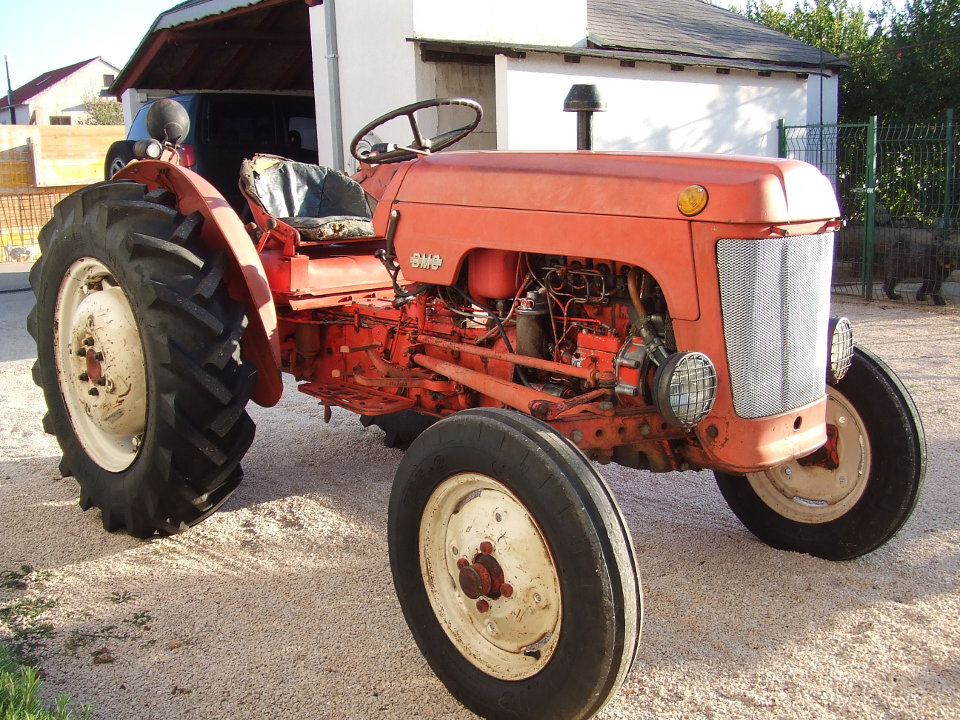

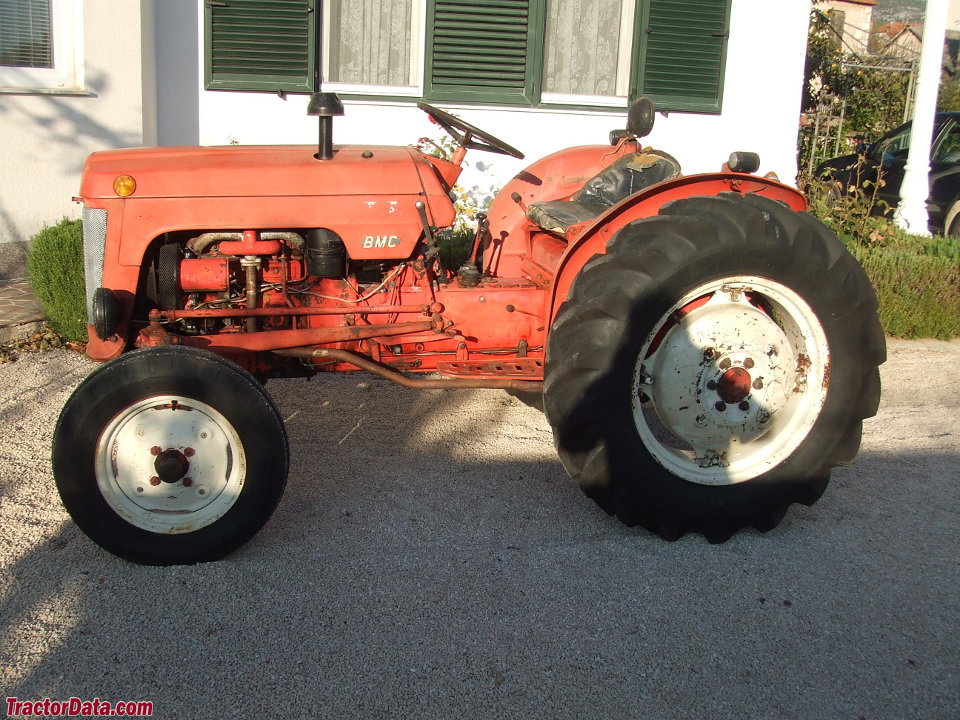

The Nuffield Mini 9/16 is a tractor with a rated power of 16 hp, positioned at the lower end of its class in terms of power output. Production of this model spanned the period from 1965 to 1968. It is equipped with a 4-cylinder diesel liquid-cooled engine, paired with two-wheel drive and a 9-speed gearbox. The tractor's operating weight is specified as 884 kg and it is suitable for operations covering up to 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
16 hp
Weight
884 kg
Catalogue coverage
Variants represented
2
Richest spec table
35 rows
Recorded power
16 hp
Recorded weight
884 kg
Transmissions
9-speed gear
Production years
1965-1968
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerNuffieldReference
Utility tractorReference
Two-wheel driveReference
Final drivesspur gearReference
Differential lockmechanical rearReference
Manual steeringReference
Open operator station.Reference
Engine
BMC 0.9L 4-cyl dieselReference
Engine11.9 kWReference
BMCReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement0.9 LReference
Bore/Stroke62 x 76 mmReference
Power11.9 kWReference
Fuel systemindirect injectionReference
Air cleaneroil bathReference
Compression22.5:1Reference
Rated RPM2500Reference
Starter typeelectricReference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutch228.6mm dry discReference
PTO & Hydraulics
Pump flow11.4 lpmReference
Rear TypeIReference
Rear lift453 kgReference
Rear PTO Type540/1000Reference
Dimensions
Weight884 kgReference
Front tire4.00x15Reference
Rear tire9.00x24Reference
Ag front4.00x15Reference
Ag rear9.00x24Reference
Mini 9/16 Serial Number Location
Serial number plate in front of, and below, the seat of the BMC 9/16.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
