Tractor · 1957Unverified

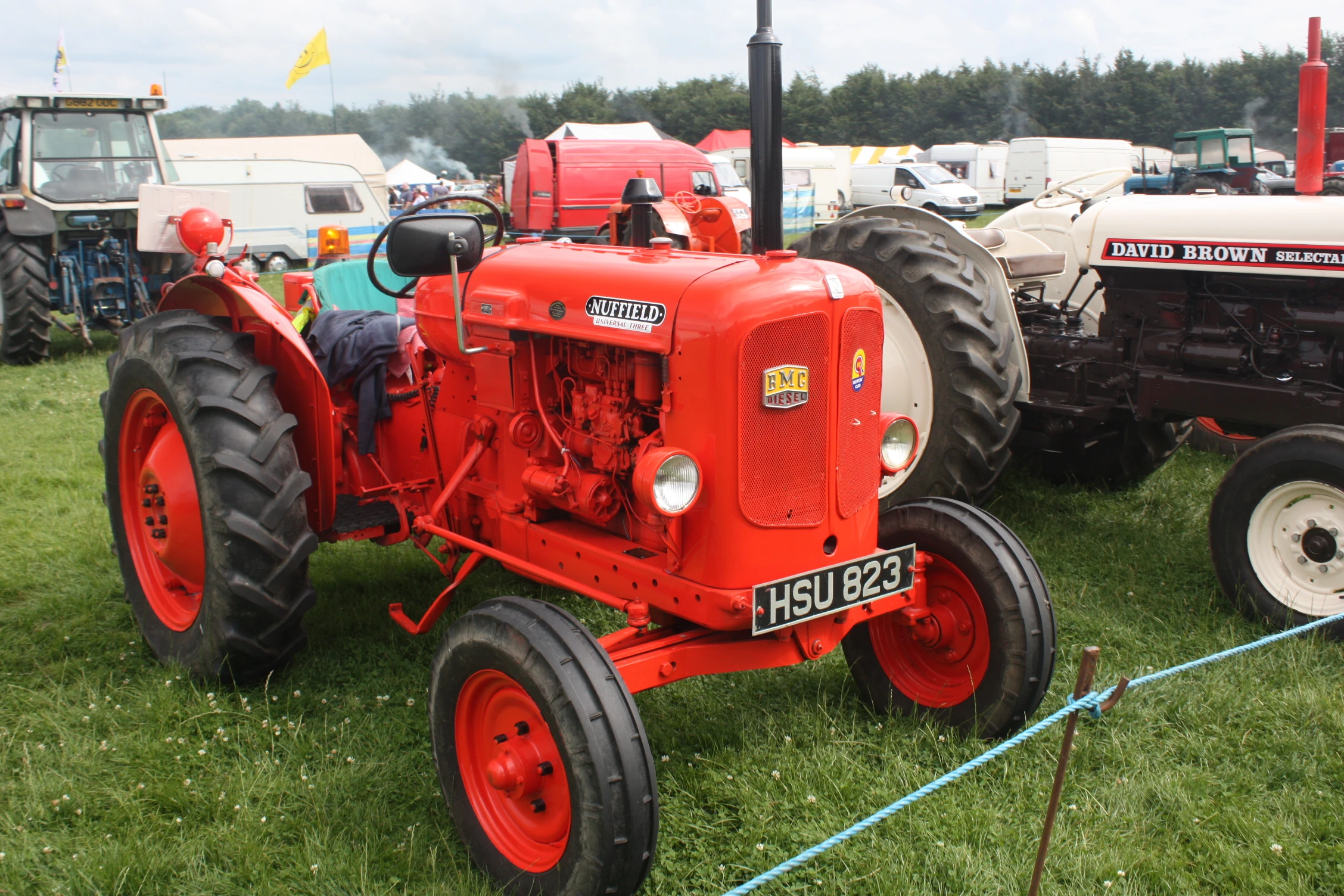

Nuffield Universal 3
Nuffield Universal 3 — Farm/Agricultural tractor · 34 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
34 hp
Max power
22.2 kW
Weight
2184 kg
Hover a source tag to verify
Overview
ManufacturerNuffieldReference
Farm/Agricultural tractorReference
Two-wheel driveReference
Engine
Morris 2.6L 3-cyl dieselReference
Drawbar (claimed)18.6 kWReference
Drawbar (tested)22.2 kWReference
MorrisReference
dieselReference
3-cylinderReference
liquid-cooled vertical I-headReference
Displacement2.6 LReference
Bore/Stroke95 x 120 mmReference
Air cleaneroil bathReference
Compression16.5:1Reference
Rated RPM2000Reference
Power at rated engine speed25.5 kWReference
Max power22.2 kWReference
Transmission
5-speedReference
Gears5 forward and 1 reverseReference
PTO & Hydraulics
PTO (claimed)23.1 kWReference
PTO (tested)25.5 kWReference
Dimensions
Weight2184 kgReference
Front tire6.00x16Reference
Rear tire13x24Reference
Ag front6.00x16Reference
Ag rear13x24Reference
Operating weight2184 kgReference
Ballasted weight3667 kgReference
Test results
Diesel 5-speed 2WDAugust 15, 1985 - August 20, 1958Link: Nebraska Tractor Test 663 fileReference
PTO performanceReference
Fuel use9.1 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
