Tractor · 1948Unverified

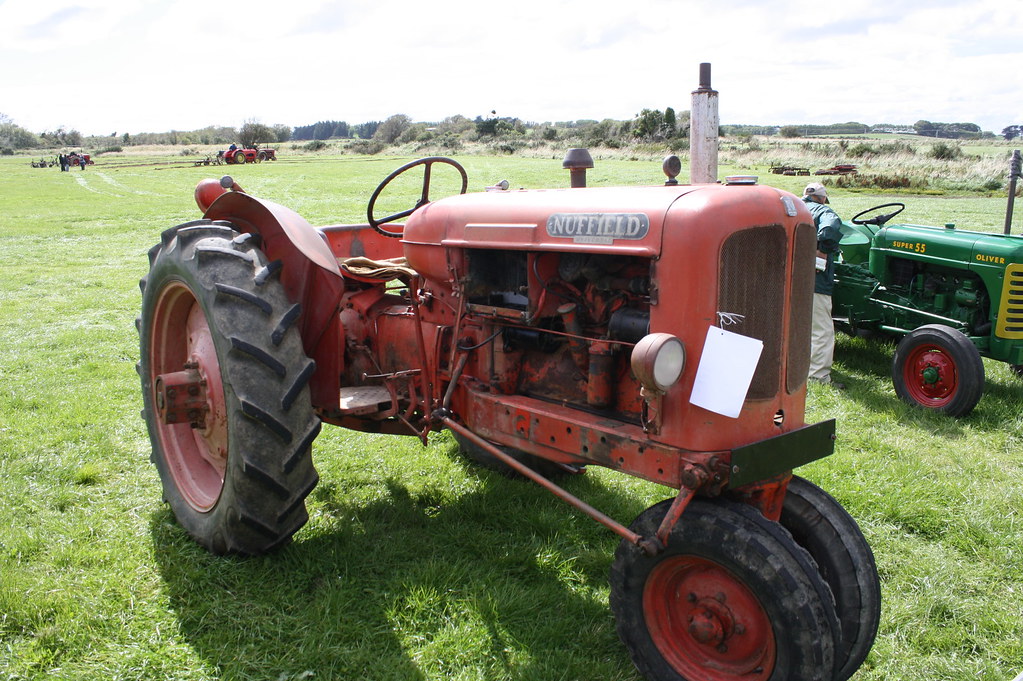

Nuffield Universal M3
Nuffield Universal M3 — Row-Crop tractor · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
2199 kg
Hover a source tag to verify
Overview
ManufacturerNuffieldReference
Row-Crop tractorReference
Built in Birmingham, EnglandReference
Two-wheel driveReference
Manual steeringReference
Mechanical drum brakesReference
Open operator station.Reference
Variants
M3tricycle frontReference
M4wide frontReference
Engine
Morris 3.8L 4-cyl tvoReference
Fuel tank72.7 LReference
Aux. fuel27.3 LReference
Engine28.3 kWReference
Drawbar (claimed)18.9 kWReference
Belt (claimed)24.2 kWReference
MorrisReference
tvoReference
4-cylinderReference
liquid-cooledReference
Displacement3.8 LReference
Bore/Stroke100 x 120 mmReference
Power28.3 kWReference
Air cleaneroil bathReference
Rated RPM2000Reference
Idle RPM600-2000Reference
Torque187.1 NmReference
Torque RPM1000Reference
Starter volts12Reference
Oil capacity7.4 LReference
Coolant capacity18.2 LReference
Transmission
5-speed gearReference
TypegearReference
Gears5 forward and 1 reverseReference
Clutch280mm mechanical dry discReference
Oil capacity47.7 LReference
PTO & Hydraulics
Typeopen centerReference
Pressure69.0 barReference
Rear TypeIReference
Rear lift1678 kgReference
Rear PTOtransmissionReference
Rear PTO Type540 (1.375)Reference
Engine RPM527@1400Reference
Dimensions
Wheelbase210 cmReference
Weight2199 kgReference
Front tire9.00-10Reference
Rear tire11.00-36Reference
Ag front9.00-10Reference
Ag rear11.00-36Reference
Ag rear9.00-36Reference
Length320 cmReference
Width210 cmReference
Height (hood)156 cmReference
Height (exhaust)210 cmReference
Operating weight2199 kgReference
Clearance (rear axle)58 cmReference
Rear tread134 to 223 cmReference
Capacities
Diameter26 cmReference
RPM1039Reference
Speed884.53 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
