Tractor · 1965Unverified

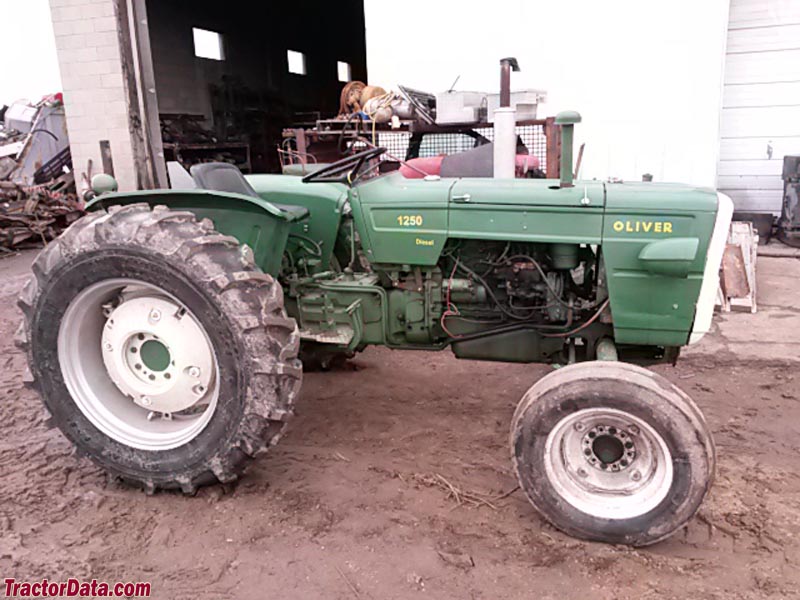

Oliver 1250
Oliver 1250 — Utility tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
3180 to 3280 pounds
Hover a source tag to verify
Overview
DistributorOliverReference
ManufacturerFiatReference
Utility tractorReference
Built in ItalyReference
The Oliver 1250 was similar to the Fiat 415.Reference
Two-wheel driveReference
Differential lockmechanical rearReference
SteeringmanualReference
SteeringpowerReference
Mechanical band brakesReference
Open operator station.Reference
Engine
Fiat 2.3L 4-cyl dieselReference
Fiat 1.9L 4-cyl gasolineReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement2.3 LReference
Bore/Stroke84 x 102 mmReference
Air cleaneroil bathReference
Compression21.5:1Reference
Rated RPM2500Reference
Starter volts24Reference
Oil capacity9.5 LReference
Coolant capacity10.4 LReference
gasolineReference
Displacement1.9 LReference
Bore/Stroke83 x 89 mmReference
Compression7.5:1Reference
Oil capacity5.9 LReference
Transmission
6-speed partially synchronizedReference
Typepartially synchronizedReference
Gears6 forward and 2 reverseReference
Oil capacity13.2 LReference
Gears 2/3 and 5/6 are synchronized.Reference
PTO & Hydraulics
Diesel PTO (claimed)28.7 kWReference
Gasoline PTO (claimed)26.1 kWReference
Hydraulic system12.3 LReference
Capacity12.3 LReference
Valves1Reference
Rear TypeIReference
Controlposition and draft controlReference
Rear lift1202 kgReference
Rear PTOliveReference
Rear PTO Type540Reference
Capacities
Fuel49.2 LReference
Dimensions
Wheelbase192 cmReference
Weight3180 to 3280 poundsReference
Front tire6.00-16Reference
Rear tire12.4/11-28Reference
Ag front6.00-16Reference
Ag rear12.4/11-28Reference
Ag rear13.6-28Reference
Ag rear14.9-28Reference
Length302 cmReference
Width152 cmReference
Height (steering wheel)149 cmReference
Gas Shipping weight1442 kgReference
Diesel Shipping weight1487 kgReference
Ground clearance47 cmReference
Oliver 1250 attachments
front-end loaderReference
1250 Serial Numbers
1965705376Reference
1966712833Reference
1967728661Reference
1968739527Reference
1969742526Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Charging systemgeneratorReference
Batteries2Reference
Battery volts12Reference
Attachment overview
Oliver 1210 loaderReference
Oliver 1510 loaderReference
Oliver 1514 loaderReference
Speeds
With 12.4-28 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
