Tractor · 1969Unverified

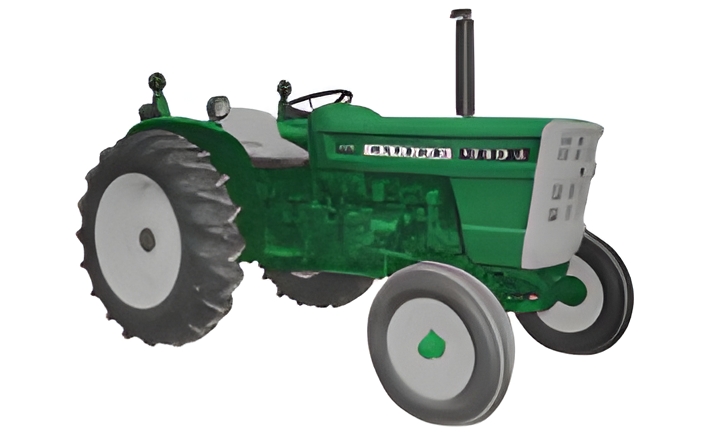

Oliver 1250-A
Oliver 1250-A — Utility tractor · 39 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
39 hp
Weight
3710 to 4300 pounds
Hover a source tag to verify
Overview
DistributorOliverReference
ManufacturerFiatReference
Utility tractorReference
Built in ItalyReference
Original price was $4,600 in 1971Reference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical band brakesReference
Open operator station.Reference
Variants
450similar Fiat modelReference
Engine
Fiat 2.3L 3-cyl dieselReference
Fuel tank53.9 LReference
Fiat 8035Reference
dieselReference
3-cylinderReference
liquid-cooled inlineReference
Displacement2.3 LReference
Bore/Stroke95 x 110 mmReference
Rated RPM2400Reference
Starter volts12Reference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
PTO & Hydraulics
PTO (claimed)28.7 kWReference
Rear TypeII/IReference
Rear PTOliveReference
Rear PTO Type540 (1.375)Reference
Dimensions
4WD Wheelbase181 cmReference
2WD Wheelbase192 cmReference
Weight3710 to 4300 poundsReference
Front tire6.00-16Reference
2WD Rear tire12.4-28Reference
2WD Standard tires (ag)Front: 6.00-16. Rear: 12.4-28Reference
4WD Standard tires (ag)Front: 9.50-24. Rear: 16.9-30Reference
4WD Length303 cmReference
2WD Length292 cmReference
4WD Height (steering wheel)160 cmReference
2WD Height (steering wheel)148 cmReference
2WD Weight1682 kgReference
4WD Weight1950 kgReference
1250-A Serial Numbers
1969305-985Reference
Final309-380Reference
FAQ: How to read a serial number table.Reference
Electrical
GroundnegativeReference
Batteries2Reference
Battery volts6Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
