Tractor · 1969Unverified

Oliver 1255

Name: Oliver 1255
Brand: Oliver

Oliver 1255 — 55 Series · 39 hp. Reference specifications; pending source verification.

The Oliver 1255 is a tractor with a rated power output of 39 hp, categorising it as a lighter model within its class. Production of the Oliver 1255 took place between 1969 and 1971. It features a 3-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a 6-speed gearbox. The tractor has an operating weight of 3710 to 4300 pounds.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

39 hp

Weight

3710 to 4300 pounds

Catalogue coverage

Variants represented

Richest spec table

88 rows

Recorded power

39 hp

Recorded weight

1682 kg

Transmissions

6-speed gear

Production years

1969-1971

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorOliverReference

ManufacturerFiatReference

Utility tractorReference

Built in ItalyReference

Original price was $4,600 in 1971Reference

The Oliver 1255 is the same tractor as the earlier model 1250-A. The name was changed to 1255 for the 1970 model year, to correspond with the other 55-series Oliver tractors.Reference

Two- or four-wheel driveReference

SteeringmanualReference

SteeringpowerReference

Mechanical band brakesReference

Open operator station.Reference

Variants

1255utilityReference

1255 Vineyardnarrow profileReference

450similar Fiat modelReference

Engine

Fiat 2.3L 3-cyl dieselReference

Fiat 8035Reference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.3 LReference

Bore/Stroke95 x 110 mmReference

Fuel systemdirect injectionReference

Air cleaneroil bathReference

Compression17:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity7.8 LReference

Coolant capacity12.8 LReference

Transmission

6-speed gearReference

9-speed creeperReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch254mm dry discReference

Oil capacity17.0 LReference

TypecreeperReference

Gears9 forward and 3 reverseReference

PTO & Hydraulics

PTO (claimed)28.7 kWReference

Hydraulic system17.0 LReference

Capacity17.0 LReference

Pressure147.1 barReference

Pump flow21.8 lpmReference

Pump flow45.4 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift1206 kgReference

Rear PTOlive (two-stage clutch)Reference

Rear PTO Type540/ground (1.375)Reference

Capacities

Fuel53.9 LReference

Dimensions

2WD Wheelbase192 cmReference

4WD Wheelbase181 cmReference

Weight3710 to 4300 poundsReference

Front tire6.00-16Reference

Rear tire12.4-28Reference

2WD Ag front6.00-16Reference

4WD Ag front9.50-24Reference

2WD Ag rear12.4-28Reference

4WD Ag rear16.9-30Reference

Ag front7.50-10Reference

Ag front7.50-16Reference

Ag rear13.6-28Reference

Ag rear14.9-28Reference

Ag rear18.4-16AReference

2WD Length292 cmReference

4WD Length303 cmReference

2WD Width159 cmReference

4WD Width172 cmReference

2WD Height (steering wheel)148 cmReference

4WD Height (steering wheel)160 cmReference

2WD Shipping weight1682 kgReference

4WD Shipping weight1950 kgReference

2WD Clearance (front axle)46 cmReference

4WD Clearance (front axle)36 cmReference

Oliver 1255 attachments

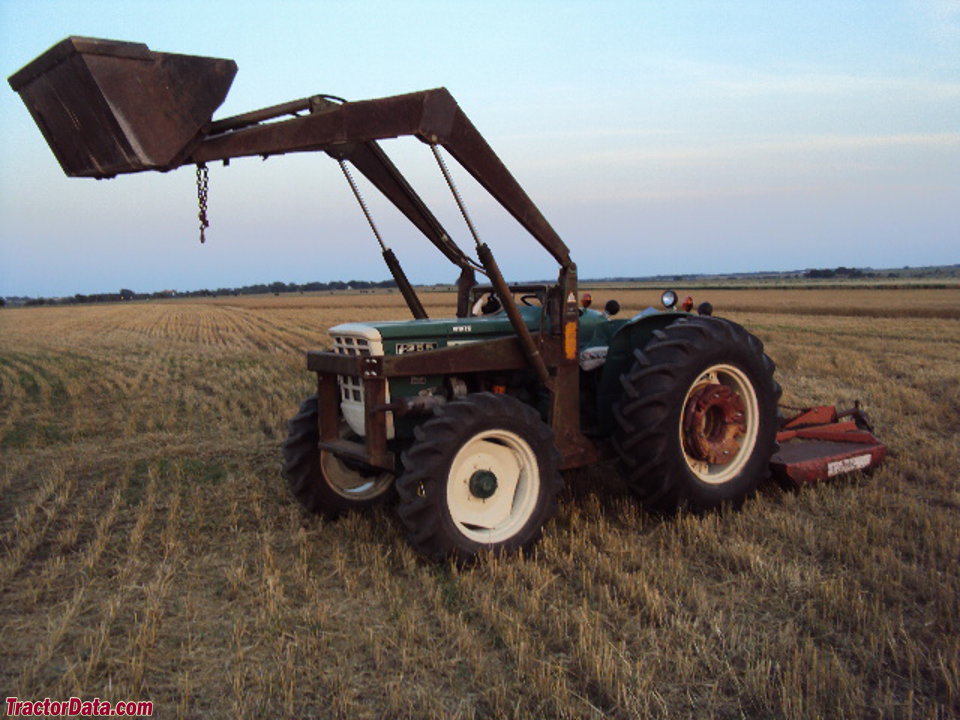

front-end loaderReference

1255 Serial Numbers

Location:Serial number plate below the steering column.Reference

1969309-381Reference

1970312-957Reference

1971317-338Reference

Final318-385Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

Charging amps42Reference

Batteries2Reference

Battery volts6Reference

Attachment overview

Oliver 1210 loaderReference

Oliver 1510 loaderReference

Oliver 1514 loaderReference

Speeds

With 14.9-28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
