Tractor · 1971Unverified

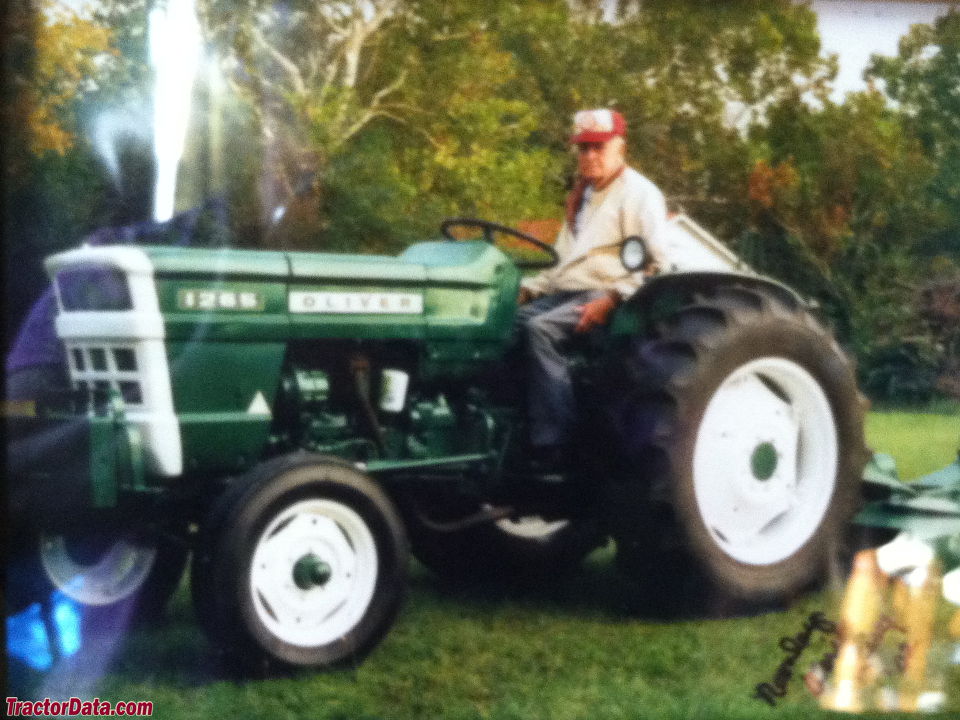

Oliver 1265

Name: Oliver 1265
Brand: Oliver

Oliver 1265 — Utility tractor · 41 hp. Reference specifications; pending source verification.

The Oliver 1265 is a tractor with a rated power output of 41 hp, positioning it at the lighter end of its class. Manufactured between 1971 and 1975, this model features a 3-cylinder diesel liquid-cooled engine and four-wheel drive, paired with a 6-speed gearbox. The operating weight of the Oliver 1265 is listed as 3710 to 4300 pounds. Its capabilities include operation on areas up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

41 hp

Weight

3710 to 4300 pounds

Catalogue coverage

Variants represented

Richest spec table

81 rows

Recorded power

41 hp

Recorded weight

1682 kg

Transmissions

6-speed partially synchronized

Production years

1971-1975

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

DistributorOliver (a part of White)Reference

ManufacturerFiatReference

Utility tractorReference

Original price was $6,900 in 1975Reference

Two- or four-wheel driveReference

Final drivesplanetaryReference

Mechanical band brakesReference

Open operator station.Reference

Engine

Fiat 2.6L 3-cyl dieselReference

FiatReference

dieselReference

3-cylinderReference

liquid-cooledReference

Displacement2.6 LReference

Bore/Stroke100 x 110 mmReference

Air cleaneroil bathReference

Pre-heatingthermostartReference

Compression17:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity12.8 LReference

Transmission

6-speed partially synchronizedReference

9-speed creeperReference

Typepartially synchronizedReference

Gears6 forward and 2 reverseReference

Clutch254mm dry discReference

Oil capacity17.0 LReference

Synchronized shifts between gears 2-3 and 5-6.Reference

TypecreeperReference

Gears9 forward and 3 reverseReference

PTO & Hydraulics

PTO (claimed)30.6 kWReference

Hydraulic system17.0 LReference

Typeopen centerReference

Capacity17.0 LReference

Pressure147.1 barReference

Pump flow21.8 lpmReference

Rear TypeII/IReference

Controlposition and draft controlReference

Rear lift1206 kgReference

Rear PTOliveReference

Rear PTO Type540/groundReference

Engine RPM540@1970Reference

Capacities

Fuel53.9 LReference

Dimensions

Wheelbase191 cmReference

Weight3710 to 4300 poundsReference

Front tire6.00-16Reference

Rear tire13.6-28Reference

2WD Ag front6.00-16Reference

4WD Ag front7.50x20Reference

2WD Ag rear13.6-28Reference

4WD Ag rear12.4-28Reference

2WD Ag front7.50-16Reference

2WD Ag rear12.4-28Reference

2WD Ag rear14.9-28Reference

2WD Length292 cmReference

4WD Length303 cmReference

Width158 cmReference

2WD Height (steering wheel)143 cmReference

2WD Shipping weight1682 kgReference

4WD Shipping weight1950 kgReference

2WD Clearance (front axle)46 cmReference

4WD Clearance (front axle)35 cmReference

2WD Front tread128 to 198 cmReference

4WD Front tread139/149 cmReference

Rear tread120 to 189 cmReference

Oliver 1265 attachments

front-end loaderReference

1265 Serial Numbers

Location:Serial number plate below instrument panel.Reference

1971302402Reference

1972304497Reference

1973307221Reference

1974314369Reference

1975317000Reference

Final321497Reference

FAQ: How to read a serial number table.Reference

Electrical

Charging systemalternatorReference

Charging amps42Reference

Battery volts12Reference

Attachment overview

Cockshutt 1522 loaderReference

Cockshutt 1524 loaderReference

Speeds

With 13.6-28 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
