Tractor · 1969Unverified

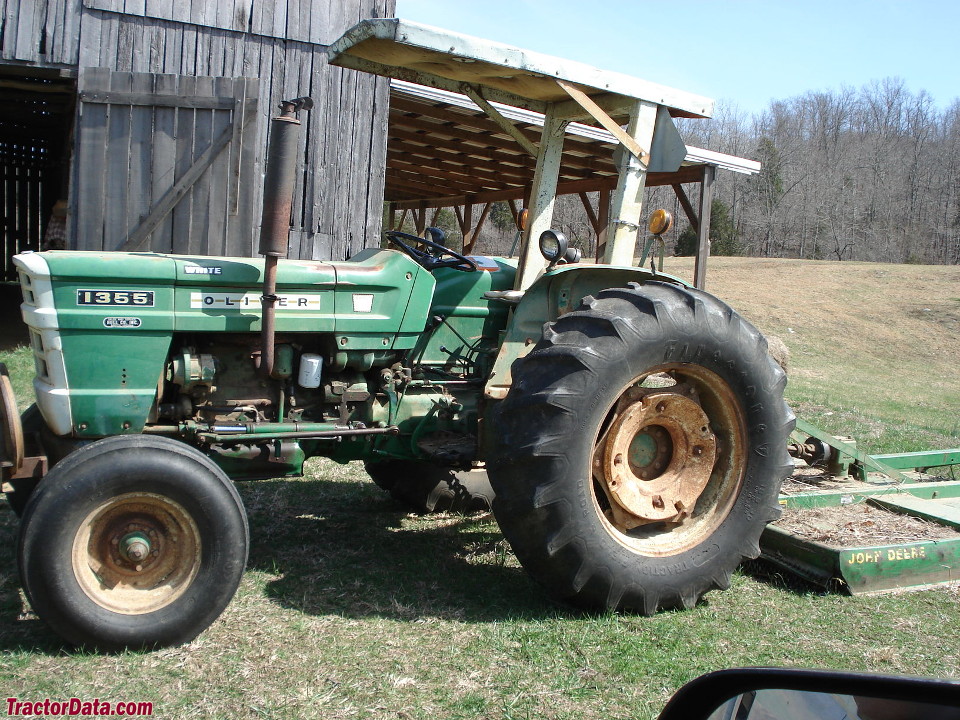

Oliver 1355
Oliver 1355 — 55 Series · 51 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
51 hp
Weight
4410 to 4940 pounds
Hover a source tag to verify
Overview
DistributorOliverReference
ManufacturerFiatReference
Utility tractorReference
Original price was $5,500 in 1971Reference
Two- or four-wheel driveReference
SteeringmanualReference
SteeringpowerReference
Mechanical band brakesReference
Open operator station.Reference
Engine
Fiat 3.1L 4-cyl dieselReference
Fiat 8045Reference
dieselReference
4-cylinderReference
liquid-cooled inlineReference
Displacement3.1 LReference
Bore/Stroke95 x 110 mmReference
Fuel systemdirect injectionReference
Air cleaneroil bathReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity13.2 LReference
Transmission
8-speed gearReference
12-speed creeperReference
TypegearReference
Gears8 forward and 2 reverseReference
Clutch279.4mm dry discReference
Oil capacity18.0 LReference
TypecreeperReference
Gears12 forward and 4 reverseReference
PTO & Hydraulics
PTO (claimed)38.0 kWReference
Hydraulic system18.0 LReference
Capacity18.0 LReference
Pressure147.1 barReference
Pump flow21.8 lpmReference
Pump flow45.4 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1406 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Capacities
Fuel53.9 LReference
Dimensions
2WD Wheelbase207 cmReference
4WD Wheelbase198 cmReference
Weight4410 to 4940 poundsReference
Front tire6.00-16Reference
Rear tire14.9-28Reference
2WD Ag front6.00-16Reference
4WD Ag front9.50-24Reference
2WD Ag rear14.9-28Reference
4WD Ag rear16.9-30Reference
Ag front7.50-16Reference
Ag front7.50-10Reference
Ag rear14.9-30Reference
Ag rear16.9-30Reference
Ag rear18.4-16AReference
2WD Length309 cmReference
4WD Length322 cmReference
2WD Width177 cmReference
4WD Width182 cmReference
2WD Height (steering wheel)153 cmReference
4WD Height (steering wheel)160 cmReference
2WD Shipping weight2000 kgReference
4WD Shipping weight2240 kgReference
2WD Clearance (front axle)47 cmReference
4WD Clearance (front axle)27 cmReference
1355 Serial Numbers
Location:Serial number plate below the steering column.Reference
1969505-287Reference
1970512-698Reference
1971523-254Reference
Final526-640Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps42Reference
Batteries2Reference
Battery volts6Reference
Speeds
With 14.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
