Tractor · 1971Unverified

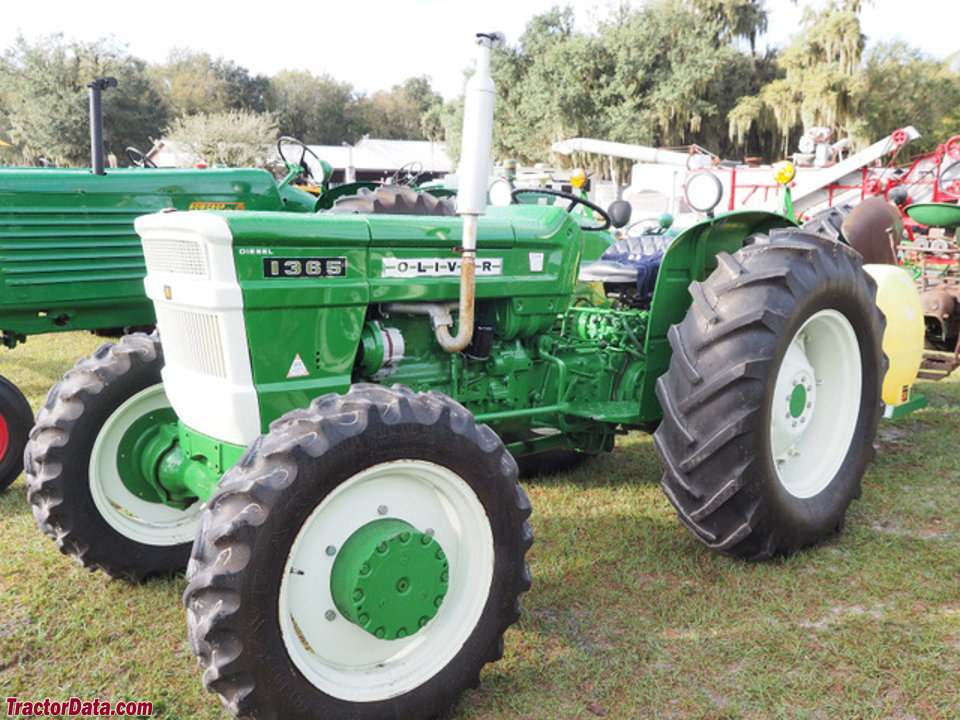

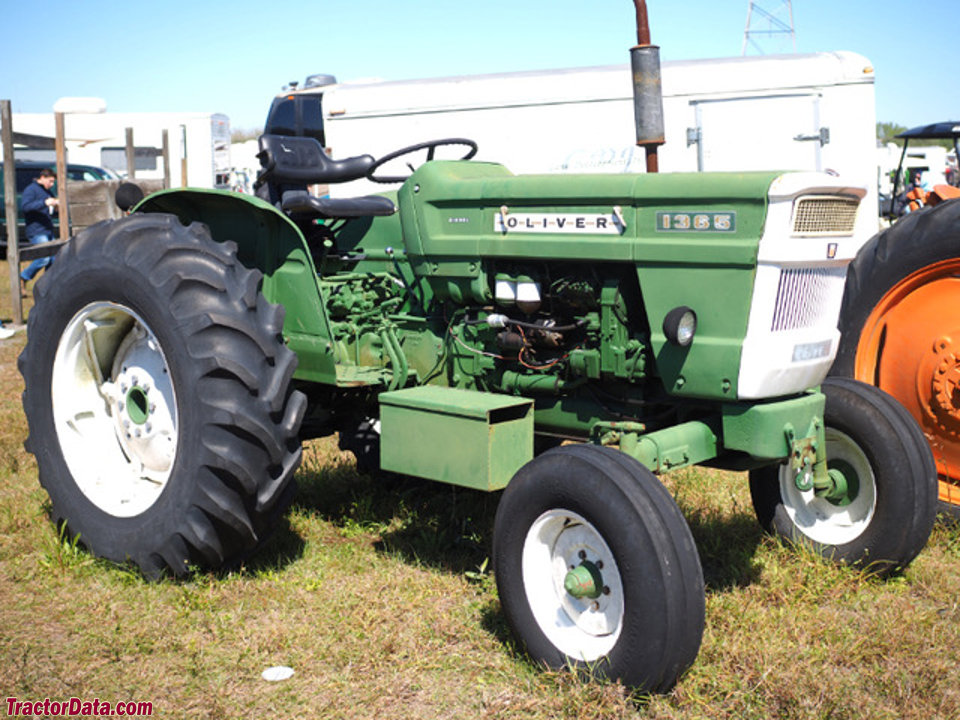

Oliver 1365
Oliver 1365 — Utility tractor · 55 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
55 hp
Weight
4410 to 4940 pounds
Hover a source tag to verify
Overview
DistributorOliver (a part of White)Reference
ManufacturerFiatReference
Utility tractorReference
Original price was $9,000 in 1975Reference
The White/Oliver 1365 was based on the Fiat 600 and Fiat 640.Reference
Two- or four-wheel driveReference
Final drivesplanetaryReference
Mechanical band brakesReference
Open operator station.Reference
Engine
Fiat 3.5L 4-cyl dieselReference
FiatReference
dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.5 LReference
Bore/Stroke100 x 110 mmReference
Air cleaneroil bathReference
Pre-heatingthermostartReference
Compression17:1Reference
Rated RPM2400Reference
Starter volts12Reference
Oil capacity11.4 LReference
Coolant capacity13.2 LReference
Transmission
8-speed partially synchronizedReference
12-speed creeperReference
Typepartially synchronizedReference
Gears8 forward and 2 reverseReference
Oil capacity18.0 LReference
Synchronized shifts between gears 3-4 and 7-8.Reference
TypecreeperReference
Gears12 forward and 3 reverseReference
PTO & Hydraulics
PTO (claimed)41.0 kWReference
Hydraulic system17.0 LReference
Typeopen centerReference
Capacity17.0 LReference
Pressure147.1 barReference
Pump flow21.8 lpmReference
Rear TypeII/IReference
Controlposition and draft controlReference
Rear lift1406 kgReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Engine RPM540@1970Reference
Capacities
Fuel53.9 LReference
Dimensions
Wheelbase205 cmReference
Weight4410 to 4940 poundsReference
Front tire7.50-16Reference
Rear tire16.9-30Reference
2WD Ag front7.50-16Reference
4WD Ag front9.50x24Reference
2WD Ag rear16.9-30Reference
4WD Ag rear16.9-30Reference
2WD Ag front6.00x16Reference
2WD Ag rear14.9-28Reference
2WD Ag rear14.9-30Reference
Utility Length309 cmReference
Row-crop Length317 cmReference
4WD Length322 cmReference
Utility Width177 cmReference
Row-crop Width182 cmReference
4WD Width182 cmReference
Utility Clearance (front axle)48 cmReference
Row-crop Clearance (front axle)65 cmReference
4WD Clearance (front axle)27 cmReference
2WD Front tread132 to 201 cmReference
4WD Front tread139/149 cmReference
Rear tread139 to 200 cmReference
Utility Shipping2000 kgReference
Row-crop Shipping2063 kgReference
4WD Shipping2240 kgReference
Utility Steering wheel153 cmReference
Row-crop Steering wheel171 cmReference
4WD Steering wheel160 cmReference
Oliver 1365 attachments
front-end loaderReference
1365 Serial Numbers
Location:Serial number plate below the instrument panel.Reference
1971706247Reference
1972706277Reference
1973714614Reference
1974725451Reference
1975729125Reference
Final766614Reference
FAQ: How to read a serial number table.Reference
Electrical
Charging systemalternatorReference
Charging amps42Reference
Battery volts12Reference
Attachment overview
Cockshutt 1522 loaderReference
Cockshutt 1524 loaderReference
Speeds
With 16.9-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
