Tractor · 1969Unverified

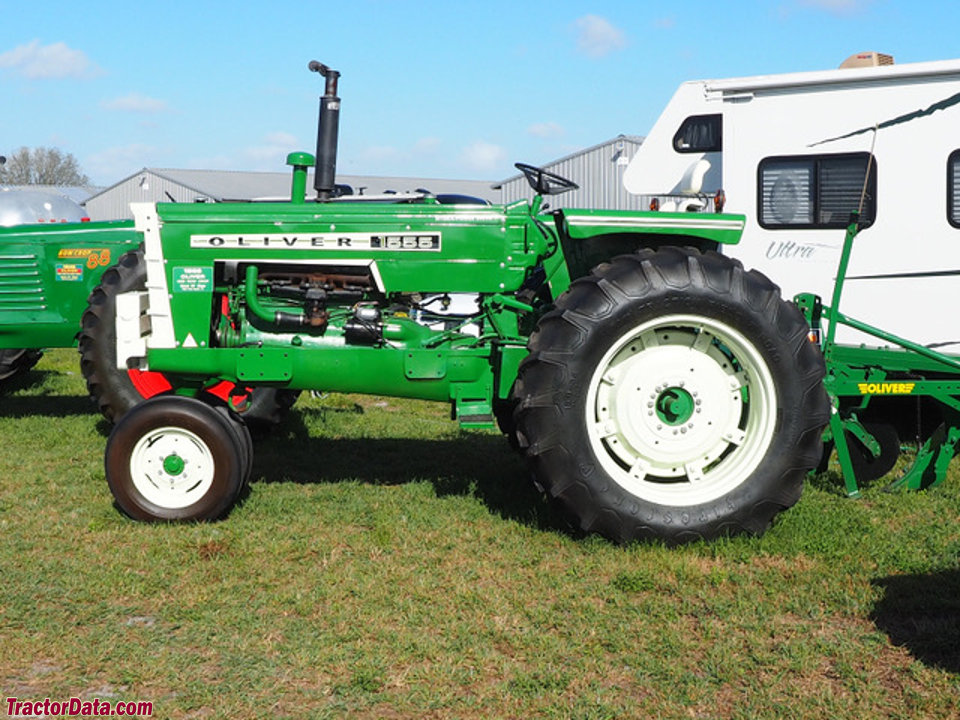

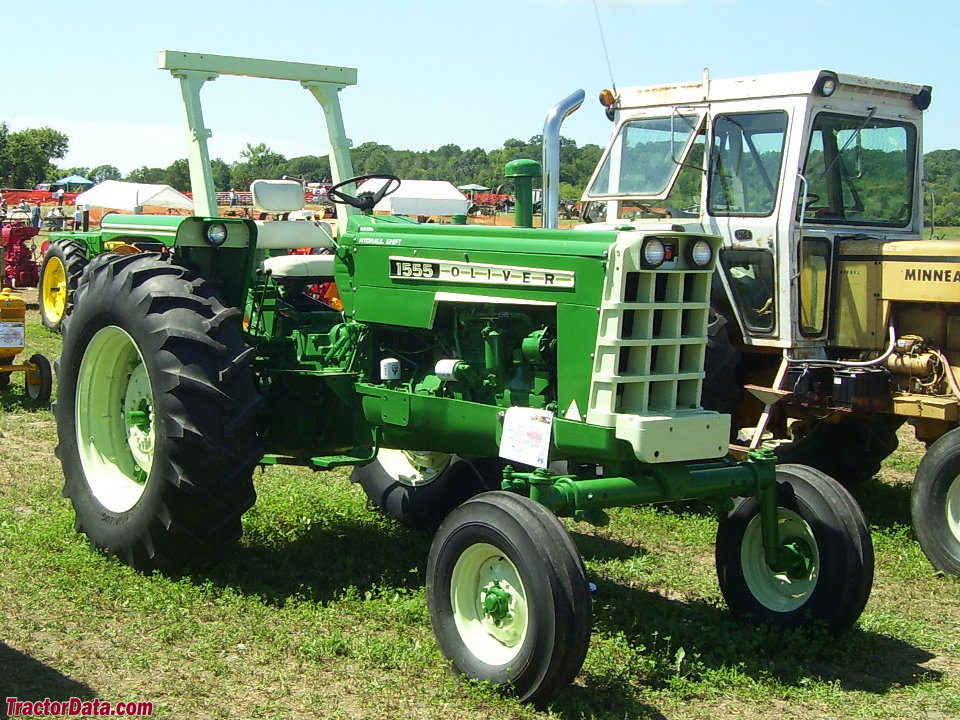

Oliver 1555

Name: Oliver 1555
Brand: Oliver

Oliver 1555 — Row-Crop tractor · 54 hp. Reference specifications; pending source verification.

The Oliver 1555 is a tractor with a rated power of 54 hp, classified as a lighter model within its category. It was manufactured from 1969 to 1975 and features a 6-cylinder diesel liquid-cooled engine, coupled with two-wheel drive and a powershift transmission. The tractor has a listed operating weight of 3103 kg and is suitable for use on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

54 hp

Max power

34.1 kW

Weight

3103 kg

Catalogue coverage

Variants represented

Richest spec table

95 rows

Recorded power

54 hp

Recorded weight

3103 kg

Transmissions

12-speed partial power shift

Production years

1969-1975

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerOliver (a part of White)Reference

Row-Crop tractorReference

Original price was $6,500 in 1975Reference

Two-wheel driveReference

Power steeringReference

Disc brakesReference

Open operator station. Cab optional with available heater.Reference

Engine

Oliver-Waukesha 3.8L 6-cyl dieselReference

Oliver-Waukesha 3.8L 6-cyl gasolineReference

Drawbar (tested)34.1 kWReference

Oliver-WaukeshaReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement3.8 LReference

Bore/Stroke92 x 95 mmReference

Air cleanerdryReference

Compression165:1Reference

Rated RPM2200Reference

Starter volts12Reference

Oil capacity5.7 LReference

Coolant capacity18.9 LReference

gasolineReference

Compression8:1Reference

Power at rated engine speed39.9 kWReference

Max power34.1 kWReference

Power at rated engine speed39.7 kWReference

Max power33.9 kWReference

Transmission

12-speed partial power shiftReference

6-speed unsynchronized gearReference

TransmissionHydra-PowerReference

Typepartial power shiftReference

Gears12 forward and 4 reverseReference

Clutch279.4mm dry discReference

The Hydra-Power transmission provides a two-speed power shift between direct-drive and the lower Hydra-Power range.Reference

Typeunsynchronized gearReference

Gears6 forward and 2 reverseReference

Oil capacity37.9 LReference

PTO & Hydraulics

PTO (claimed)39.5 kWReference

PTO (tested)39.9 kWReference

Hydraulic system53.0 LReference

Typeopen centerReference

Capacity53.0 LReference

Valves2 to 4Reference

Rear TypeII/IReference

Controllower-link draft controlReference

Rear PTOindependentReference

Rear PTO Type540Reference

Rear PTO Type1000Reference

Rear PTO Type540/1000Reference

Capacities

Fuel104.1 LReference

Dimensions

Wheelbase251 cmReference

Weight3103 kgReference

Front tire7.50-16Reference

Rear tire15.5-38Reference

Ag front7.50-16Reference

Ag rear15.5-38Reference

Ag front5.50-16Reference

Ag front6.00-16Reference

Ag front6.50-16Reference

Ag rear12.4-38Reference

Ag rear13.6-38Reference

Ag rear14.9-38Reference

Ag rear16.9-34Reference

Length392 cmReference

Width207 cmReference

Height (steering wheel)203 cmReference

Height (exhaust)247 cmReference

Shipping weight3103 kgReference

Ground clearance64 cmReference

Front tread130 to 222 cmReference

Rear tread143 to 227 cmReference

1555 Serial Numbers

Location:Serial number plate below instrument panel.Reference

1969218-128Reference

1970221-295Reference

1971225-914Reference

1972232-089Reference

1973236-883Reference

1974244-937Reference

1975256-165Reference

Final262-877Reference

FAQ: How to read a serial number table.Reference

Test results

NTTL 943: diesel Hydra-Power 2WDReference

NTTL 944: gasoline Hydra-Power 2WDReference

Diesel Hydra-Power 2WDJune 8 - 15, 1966Link: Nebraska Tractor Test 943 fileReference

PTO performanceReference

Fuel use16.3 l/hourReference

Drawbar performanceReference

Fuel use16.7 l/hourReference

Gear 4-Hydra used for power test.Reference

Max pull3010 kgReference

Gear 2-Hydra used for pull test.Reference

Gasoline Hydra-Power 2WDJune 8 - 16, 1966Link: Nebraska Tractor Test 944 fileReference

Fuel use18.5 l/hourReference

Max pull3084 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
