Tractor · 1962Unverified

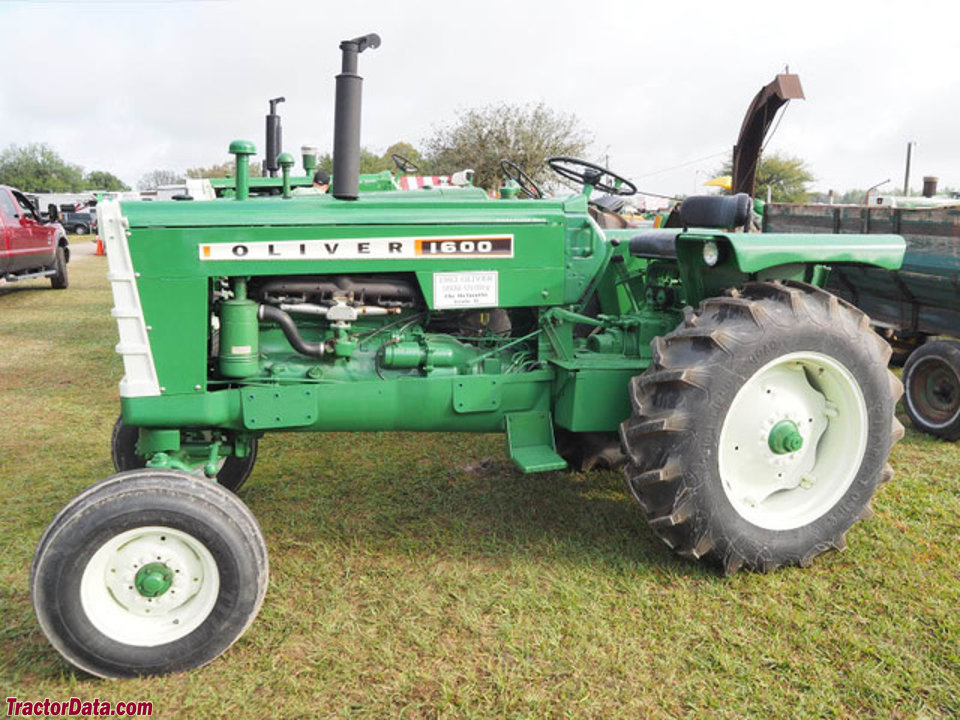

Oliver 1600 Series B
Oliver 1600 Series B — Model year 1962-19631963-1964 · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Weight
7400 to 8140 pounds
Hover a source tag to verify
Overview
ManufacturerOliverReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Original price was $5,000 in 1964Reference
Two- or four-wheel driveReference
SteeringmanualReference
Steeringpower-assist optionalReference
Differential mechanical dry disc brakesReference
Open operator station.Reference
Variants
Row-Croptricycle frontReference
Wheatlandstandard-front axleReference
High-Clearanceextended ground clearanceReference
Engine
Waukesha-Oliver 4.3L 6-cyl dieselReference
Waukesha-Oliver 4.1L 6-cyl gasolineReference
Waukesha-Oliver 4.1L 6-cyl LP gasReference
Gas Fuel tank104.1 LReference
LP-gas Fuel tank104.1 LReference
Diesel Fuel tank128.7 LReference
Gas Drawbar (claimed)38.4 kWReference
LP-gas Drawbar (claimed)35.4 kWReference
Diesel Drawbar (claimed)39.1 kWReference
Plows4-5Reference
Waukesha-OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke95 x 102 mmReference
Air cleaneroil bathReference
Compression16.25:1Reference
Rated RPM1900Reference
Firing order1-5-3-6-2-4Reference
Starter volts12Reference
Oil capacity7.6 LReference
Coolant capacity18.9 LReference
gasolineReference
Displacement4.1 LReference
Bore/Stroke92 x 102 mmReference
Compression8.5:1Reference
LP gasReference
Compression9:1Reference
Transmission
6-speed gearReference
12-speed partial power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch279.4mm dry discReference
Oil capacity30.3 LReference
TransmissionHydra-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Six speeds forward and two reverse. A control knob enables a power shift between direct drive and the Hydra-Power range.Reference
PTO & Hydraulics
Gas PTO (claimed)44.7 kWReference
LP-gas PTO (claimed)41.8 kWReference
Diesel PTO (claimed)45.5 kWReference
Rear TypeII/IReference
Controllower-link draft sensingReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Rear PTO Type1000 (1.375)Reference
Dimensions
2WD Wheelbase252 cmReference
4WD Wheelbase208 cmReference
Weight7400 to 8140 poundsReference
Front tire6.00-16Reference
Rear tire13.6-38Reference
Ag front6.00-16Reference
Ag front7.50-18Reference
Ag rear13.6-38Reference
Ag rear14.9-28Reference
Ag rear15.5-38Reference
Ag rear16.9-28Reference
Ag rear18.4-34Reference
Ag rear16.9-34Reference
Ag rear18.4-30Reference
Ag rear23.1-26Reference
Length392 cmReference
Width207 cmReference
Height (steering wheel)195 cmReference
Ground clearance60 cmReference
2WD Front tread137 to 187 cmReference
4WD Front tread167/179 cmReference
Rear tread143 to 227 cmReference
2WD Operating3356 kgReference
4WD Operating3692 kgReference
Ballasted4998 kgReference
1600 Serial Numbers
Location:Serial plate on instrument panel.Reference
1962124-420 (A)Reference
1963127-044 (A)Reference
1963137-613 (B)Reference
1964140-723 (B)Reference
Final147-568 (B)Reference
FAQ: How to read a serial number table.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
