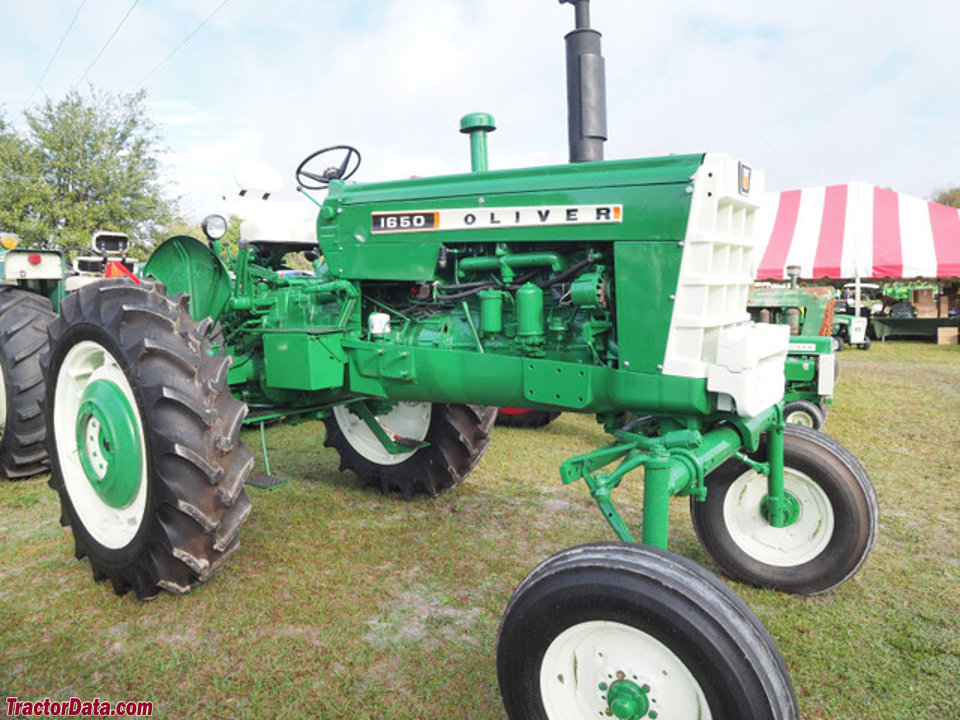

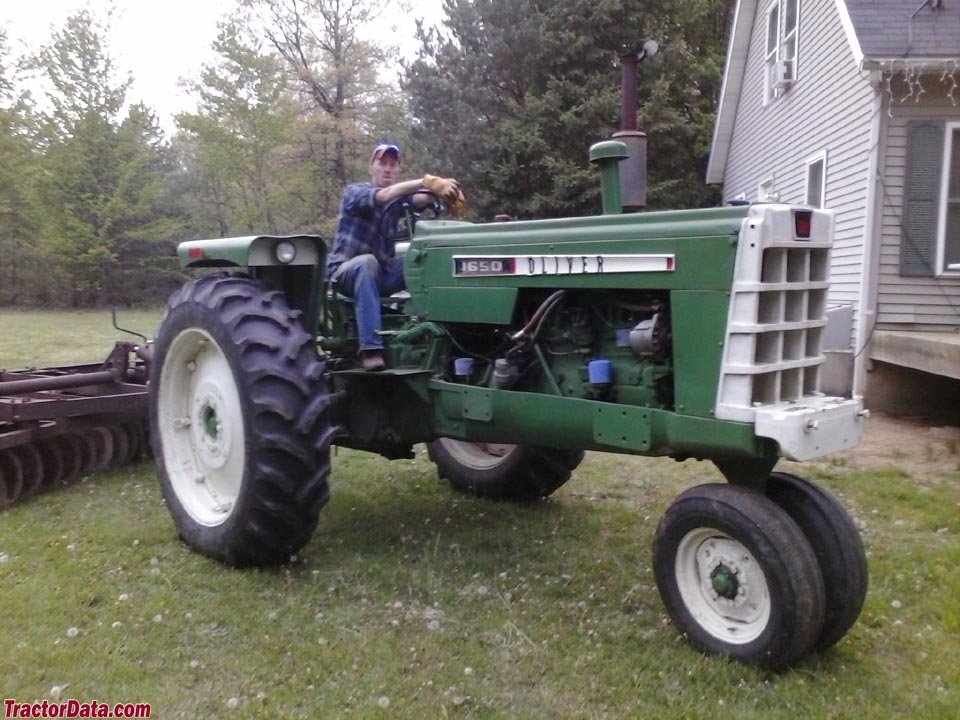

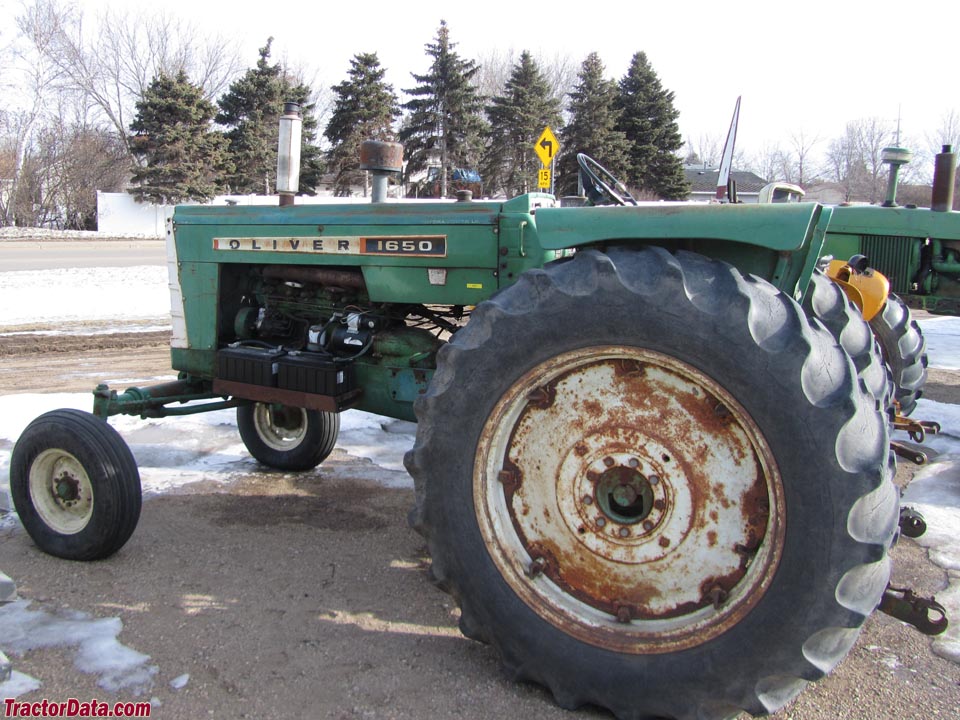

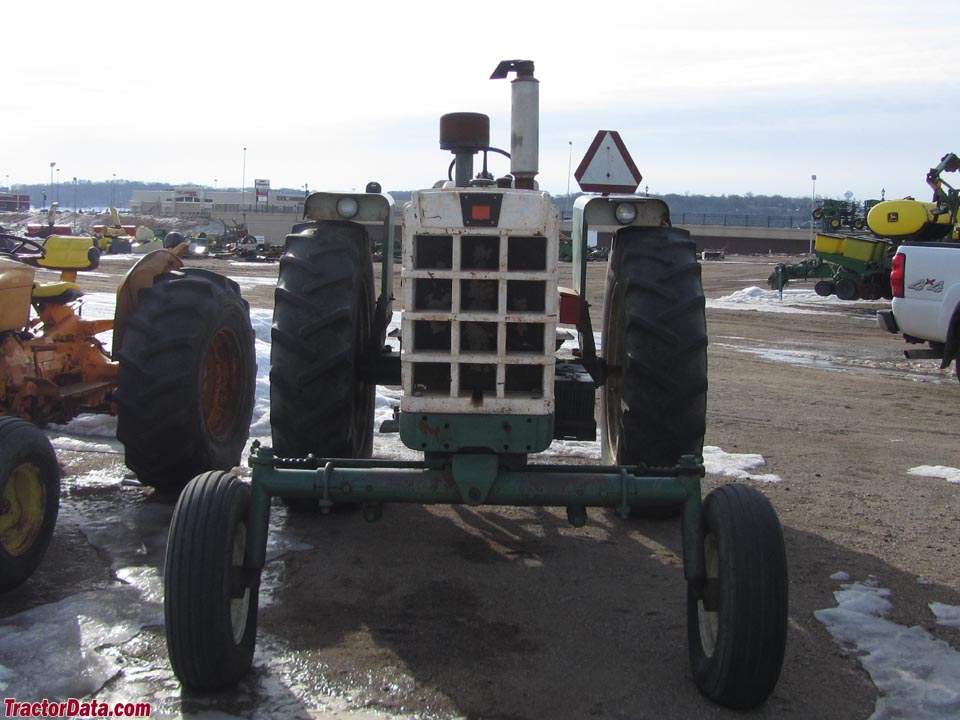

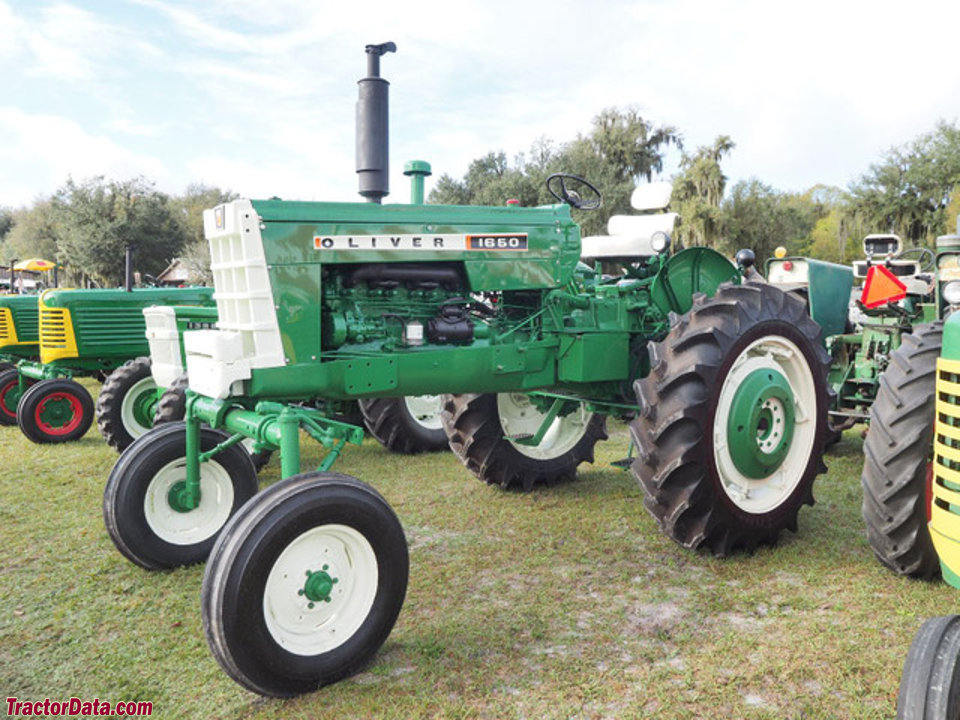

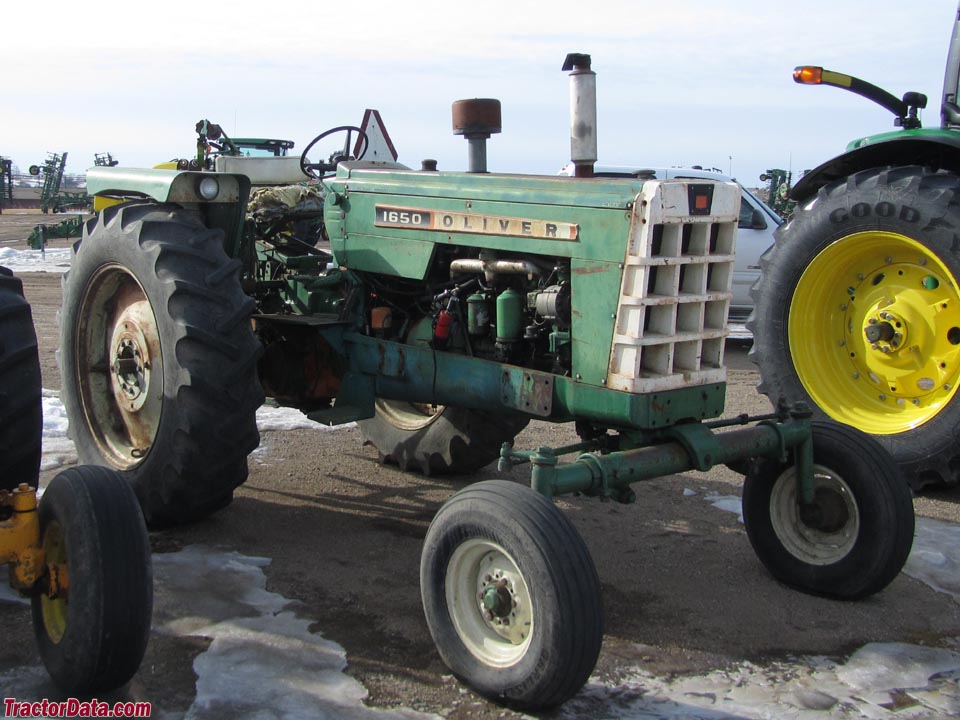

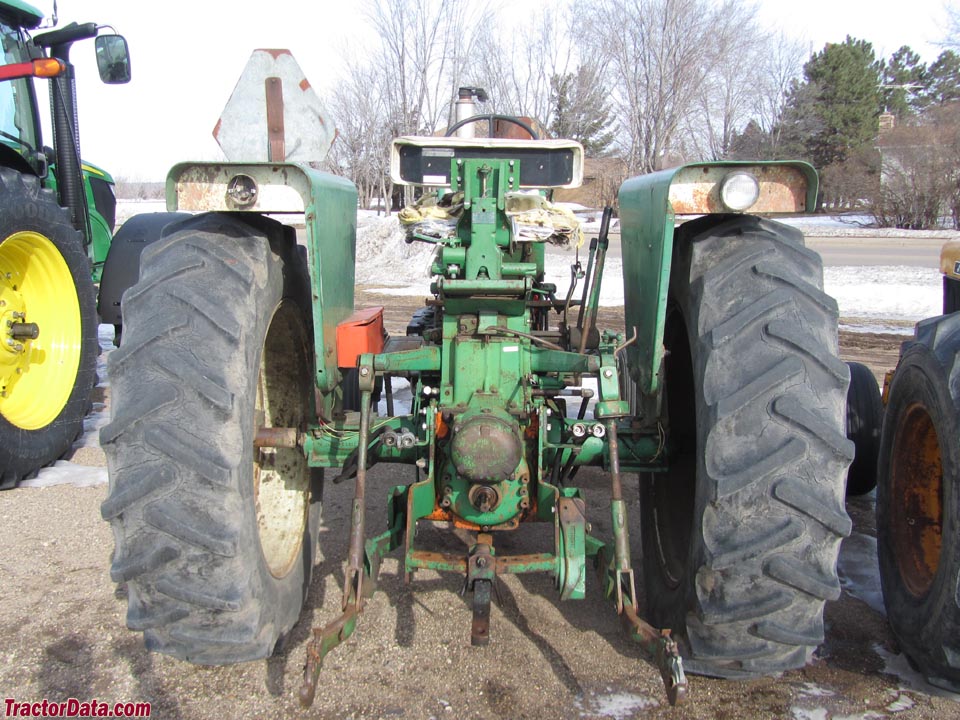

Oliver 1650
Oliver 1650 — 50 Series · 66 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
66 hp
Max power
49.4 kW
Weight
3544 kg
Hover a source tag to verify
Overview
ManufacturerOliverReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Original price$7,100 (1969)Reference
The Hydra-Power transmission offered an under-drive to each drive gear, which could be selected on the move. The Hydraul-Shift offered and on-the-fly under- and over-drive gear.Reference
Two- or four-wheel driveReference
Steeringpower assistReference
Differential disc brakesReference
Cab optionalReference
Engine
Waukesha-Oliver 4.6L 6-cyl dieselReference
Waukesha-Oliver 4.3L 6-cyl gasolineReference
Fuel tank87.1 LReference
Fuel tank87.1 LReference
Fuel tank106.0 LReference
Drawbar (tested)43.8 kWReference
Waukesha-OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke98 x 102 mmReference
Compression16.0:1Reference
Rated RPM2200Reference
Starter volts12Reference
Oil capacity6.3 LReference
Coolant capacity18.9 LReference
gasolineReference
Displacement4.3 LReference
Bore/Stroke95 x 102 mmReference
Air cleanerdryReference
Compression8.5:1Reference
Firing order1-5-3-6-2-4Reference
Max power49.4 kWReference
Power at rated engine speed49.4 kWReference
Max power42.1 kWReference
Max power49.7 kWReference
Power at rated engine speed49.8 kWReference
Max power43.8 kWReference
Transmission
6-speed unsynchronizedReference
12-speed two-speed power shiftReference
18-speed partial power shiftReference
Transmissionhelical gearReference
TypeunsynchronizedReference
Gears6 forward and 2 reverseReference
Clutch304.8mm dry discReference
TransmissionHydra-PowerReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
Clutchdry discReference
TransmissionHydraul-ShiftReference
Typepartial power shiftReference
Gears18 forward and 6 reverseReference
Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive.Reference
PTO & Hydraulics
PTO (claimed)49.2 kWReference
PTO (tested)49.8 kWReference
Rear TypeII/IReference
Rear PTOindependentReference
Rear PTO Type540Reference
Rear PTO Type1000Reference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase252 cmReference
Wheelbase214 cmReference
Wheelbase227 cmReference
Wheelbase209 cmReference
Weight3544 kgReference
Front tire6.50-16Reference
Rear tire15.5-38Reference
Ag front6.50-16Reference
Ag rear15.5-38Reference
Ag front6.00-16 (row-crop)Reference
Ag front7.50-16 (row-crop)Reference
Ag front9.00-10 (row-crop)Reference
Ag front13.6/12-24 (4WD)Reference
Ag rear12.4/11-38Reference
Ag rear13.6/12-38Reference
Ag rear14.9/13-38Reference
Ag rear18.4/15-34Reference
Ag rear23.1/18-26Reference
Ag rear16.9/14-34Reference
Ag rear9.5/9-42Reference
Length392 cmReference
Length356 cmReference
Length373 cmReference
Length369 cmReference
Width207 cmReference
Height (steering wheel)203 cmReference
Operating weight3544 kgReference
Ballasted weight5005 kgReference
Front tread152 to 213 cmReference
Front tread152 cmReference
Front tread167/178 cmReference
Rear tread143 to 227 cmReference
Oliver 1650 attachments
front-end loaderReference
1650 Serial Numbers
Location:Instrument panel supportReference
1964149836Reference
1965153885Reference
1966167668Reference
1967183928Reference
1968201091Reference
1969212733Reference
Final218193Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 873: diesel 12-speed 2WDReference
NTTL 874: gasoline 12-speed 2WDReference
Diesel 12-speed 2WDNovember 4 - 16, 1964Link: Nebraska Tractor Test 873 fileReference
PTO performanceReference
Fuel use18.9 l/hourReference
Drawbar performanceReference
Fuel use18.2 l/hourReference
Gear 4-low used for power test.Reference
Max pull3690 kgReference
Gear 2-low used for pull test.Reference
Gasoline 12-speed 2WDNovember 6 - 23, 1964Link: Nebraska Tractor Test 874 fileReference
Fuel use21.6 l/hourReference
Fuel use22.0 l/hourReference
Max pull3681 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
