Tractor · 1966Unverified

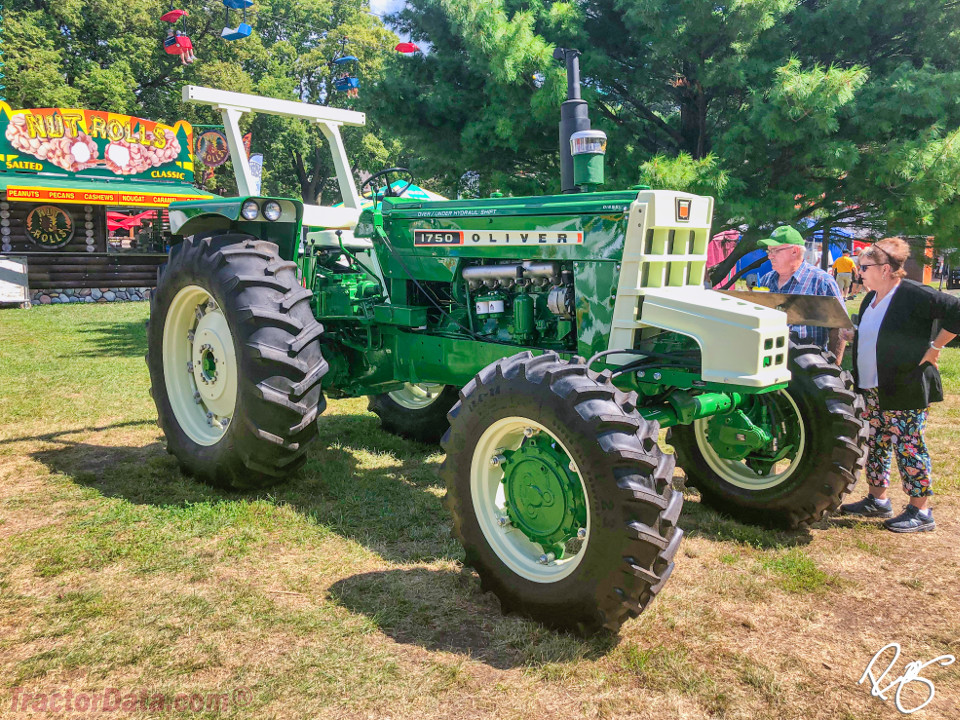

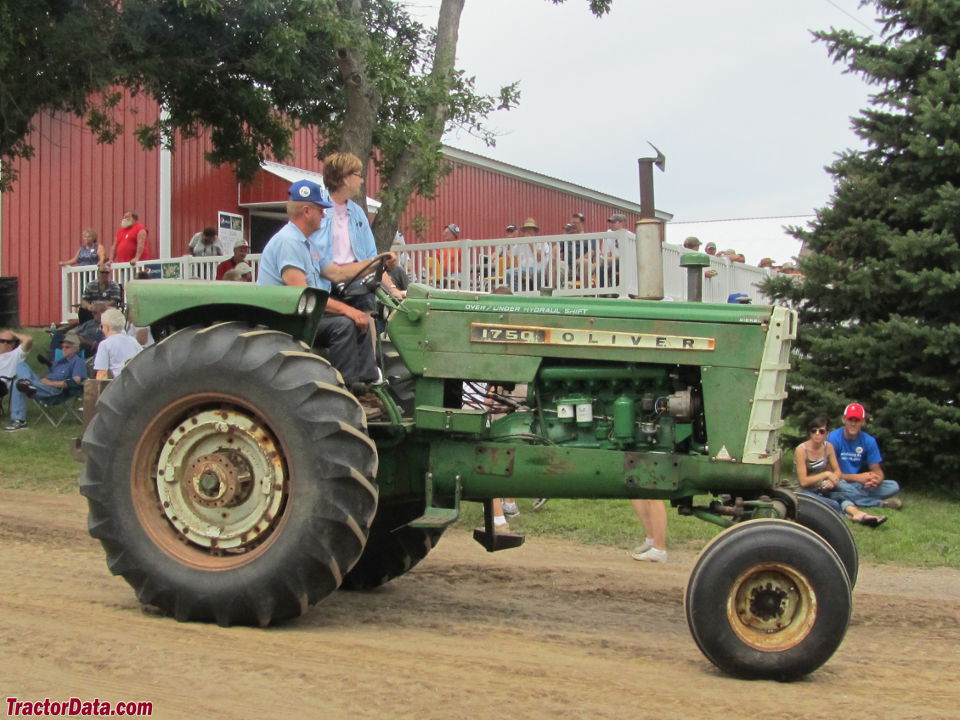

Oliver 1750

Name: Oliver 1750
Brand: Oliver

Oliver 1750 — 50 Series · 80 hp. Reference specifications; pending source verification.

The Oliver 1750 is a tractor with an 80 hp rated power, a mid-range figure for its class. It was manufactured from 1966 to 1969 and features a 6-cylinder diesel liquid-cooled engine, paired with four-wheel drive and a powershift transmission. The tractor has a listed operating weight of 8660 to 10660 pounds and is suitable for operations of up to 200 ac.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

80 hp

Max power

50.0 kW

Weight

8660 to 10660 pounds

Catalogue coverage

Variants represented

Richest spec table

125 rows

Recorded power

80 hp

Transmissions

6-speed unsynchronized gear

Production years

1966-1969

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerOliverReference

Row-Crop tractorReference

Built in Charles City, Iowa, USAReference

Original price was $7,400 in 1969Reference

Two- or four-wheel driveReference

Steeringpower assistReference

Differential mechanical disc brakesReference

Open operator station. Oliver Continental Cab optional with available air-conditioning.Reference

Engine

Waukesha-Oliver 4.6L 6-cyl gasolineReference

Waukesha-Oliver 5.1L 6-cyl dieselReference

Plows5-6Reference

Drawbar (tested)50.0 kWReference

Waukesha-OliverReference

gasolineReference

6-cylinderReference

liquid-cooledReference

Displacement4.6 LReference

Bore/Stroke98 x 102 mmReference

Air cleanerdry with pre-cleanerReference

Compression8.5:1Reference

Rated RPM2400Reference

Starter volts12Reference

Oil capacity7.6 LReference

Coolant capacity18.9 LReference

dieselReference

Displacement5.1 LReference

Bore/Stroke98 x 111 mmReference

Compression16:1Reference

Oil capacity11.4 LReference

Power at rated engine speed59.9 kWReference

Max power50.0 kWReference

Power at rated engine speed59.7 kWReference

Max power48.7 kWReference

Transmission

6-speed unsynchronized gearReference

12-speed partial power shiftReference

18-speed partial power shiftReference

Typeunsynchronized gearReference

Gears6 forward and 2 reverseReference

TransmissionOliver Hydra-PowerReference

Typepartial power shiftReference

Gears12 forward and 4 reverseReference

Clutchdry discReference

Six gears (1-6) with two-range Hydra-Power power shift. Hydra-Power provdes a lower ratio and clutchless shifting between the Hydra-Power gear or direct drive.Reference

TransmissionHydraul-ShiftReference

Gears18 forward and 6 reverseReference

Introduced in late 1967, the Hydraul-Shift transmission provided an on-the-move shift to underdrive and overdrive.Reference

PTO & Hydraulics

PTO (claimed)59.7 kWReference

PTO (tested)59.9 kWReference

Hydraulic system18.9 LReference

Typeopen centerReference

Capacity18.9 LReference

Rear TypeIIReference

Rear TypeIIIReference

Rear lift (at 24"/610mm)2721 kgReference

Rear PTOindependentReference

Rear PTO Type540Reference

Engine RPM1000@2400Reference

Capacities

Gas Fuel130.6 LReference

Diesel Fuel119.2 LReference

Diesel Fuel295.2 LReference

Dimensions

2WD Wheelbase261 cmReference

4WD Wheelbase219 cmReference

Wheatland Wheelbase247 cmReference

Weight8660 to 10660 poundsReference

Front tire7.50-15Reference

Rear tire18.4-34Reference

Ag front7.50-15Reference

Ag rear18.4-34Reference

Ag front6.50-16Reference

Ag front7.50-16Reference

Ag front7.50-18Reference

Ag front11.00L-15Reference

Ag front11.00L-16Reference

Ag rear20.8-38Reference

Ag rear14.9-38Reference

Ag rear18.4-38Reference

Ag rear16.9-38Reference

Ag rear23.1-26Reference

Ag rear16.9-34Reference

Ag rear15.5-38Reference

2WD Length405 cmReference

4WD Length387 cmReference

2WD Width204 cmReference

4WD Width204 cmReference

Wheatland Width225 cmReference

Ground clearance64 cmReference

2WD Front tread23/36 cmReference

2WD Front tread172 to 227 cmReference

4WD Front tread167/179/203 cmReference

Wheatland Front tread176 cmReference

2WD Rear tread172 to 227 cmReference

4WD Rear tread172 to 227 cmReference

Wheatland Rear tread191 to 212 cmReference

2WD Shipping3928 kgReference

4WD Shipping4835 kgReference

Operating4427 kgReference

Ballasted5511 kgReference

2WD Steering wheel216 cmReference

4WD Steering wheel217 cmReference

Wheatland Steering wheel216 cmReference

Oliver 1750 attachments

front-end loaderReference

1750 Serial Numbers

Location:Serial number plate on the support panel for dashboard.Reference

1964140893Reference

1965149835Reference

1966181062Reference

1967185301Reference

1968200217Reference

1969214936Reference

FAQ: How to read a serial number table.Reference

Attachment overview

Oliver 1610 loaderReference

Oliver 1810 loaderReference

Test results

NTTL 961: gasoline Hydra-Power 2WDReference

NTTL 962: diesel Hydra-Power 2WDReference

Gasoline Hydra-Power 2WD5/22/1967Link: Nebraska Tractor Test 961 fileReference

PTO performanceReference

Fuel use26.5 l/hourReference

Drawbar performanceReference

Gear 4-Hydra used for power test.Reference

Max pull4398 kgReference

Gear 2-Hydra used for pull test.Reference

Diesel Hydra-Power 2WDMay 22 - June 12, 1967Link: Nebraska Tractor Test 962 fileReference

Fuel use20.4 l/hourReference

Fuel use20.1 l/hourReference

Max pull4503 kgReference

Speeds

With 18.4-34 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
