Tractor · 1960Unverified

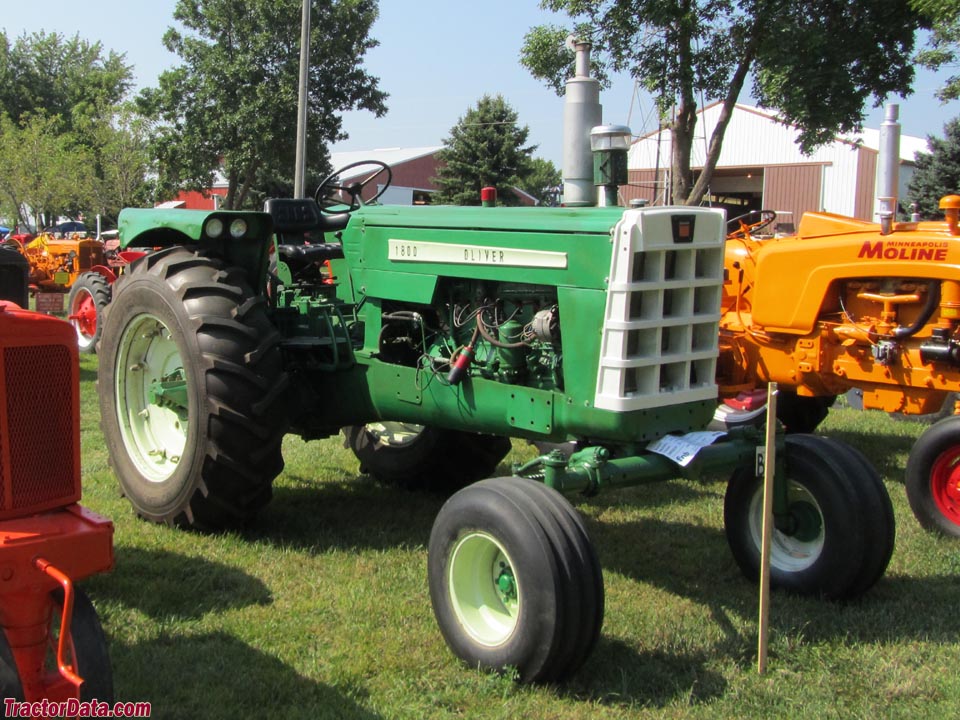

Oliver 1800 Series A
Oliver 1800 Series A — Model year 1960-19621962-1964 · 74 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
74 hp
Max power
46.0 kW
Weight
3894 kg
Hover a source tag to verify
Overview
ManufacturerOliverReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
Steeringpower assistReference
Disc brakesReference
Open operator station.Reference
Engine
Waukesha-Oliver 4.6L 6-cyl dieselReference
Waukesha-Oliver 4.3L 6-cyl gasolineReference
Gas Fuel tank138.2 LReference
Diesel Fuel tank119.2 LReference
Drawbar (tested)46.6 kWReference
Waukesha-OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.6 LReference
Bore/Stroke98 x 102 mmReference
Air cleaneroil bathReference
Compression16:1Reference
Rated RPM2000Reference
Starter volts12Reference
gasolineReference
Displacement4.3 LReference
Bore/Stroke95 x 102 mmReference
Compression8.5:1Reference
Firing order1-5-3-6-2-4Reference
Power at rated engine speed55.1 kWReference
Max power46.0 kWReference
Power at rated engine speed52.3 kWReference
Max power46.6 kWReference
Transmission
6-speed gearReference
12-speed partial power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
TransmissionHydra-PowerReference
Typepartial power shiftReference
Gears12 forward and 4 reverseReference
Hydra-Power Drive adds a power shift between direct engine drive and a lower gear.Reference
PTO & Hydraulics
PTO (tested)55.1 kWReference
Rear PTOindependentReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase261 cmReference
Weight3894 kgReference
Front tire7.50-15Reference
Rear tire15-34Reference
Ag front7.50-15Reference
Ag rear15-34Reference
Ag rear18.5-38Reference
Length405 cmReference
Width219 cmReference
Height (steering wheel)203 cmReference
Operating weight3894 kgReference
Ballasted weight6506 kgReference
Ground clearance64 cmReference
Front tread23/36 cmReference
Rear tread172 to 227 cmReference
1800 Serial Numbers
Location:Serial plate on instrument panel.Reference
196090-525Reference
1961111-025Reference
1962118-344Reference
Final124-395Reference
FAQ: How to read a serial number table.Reference
Test results
NTTL 766: gasoline 6-speed 2WDReference
NTTL 767: diesel 6-speed 2WDReference
Gasoline 6-speed 2WDOctober 3 - 11, 1960Link: Nebraska Tractor Test 766 fileReference
PTO performanceReference
Fuel use21.2 l/hourReference
Drawbar performanceReference
Fuel use20.1 l/hourReference
Gear 4 used for power test.Reference
Max pull4816 kgReference
Gear 1 used for pull test.Reference
Diesel 6-speed 2WDOctober 4 - 12, 1960Link: Nebraska Tractor Test 767 fileReference
Fuel use18.5 l/hourReference
Fuel use18.2 l/hourReference
Max pull5007 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
