Tractor · 1960Unverified

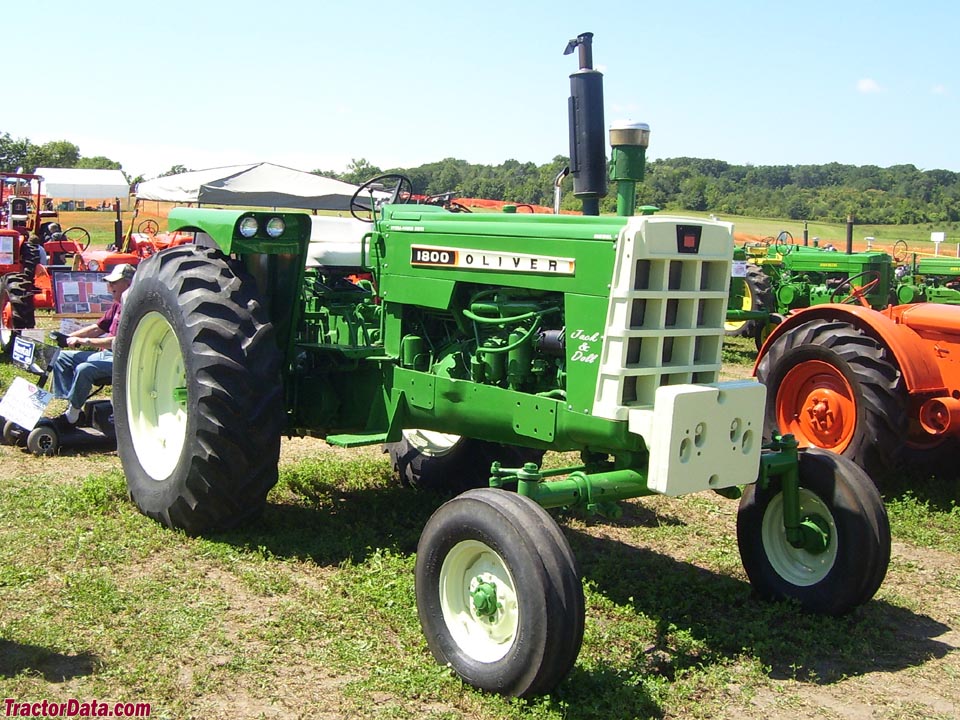

Oliver 1800 Series B/C

Name: Oliver 1800 Series B/C
Brand: Oliver

Oliver 1800 Series B/C — Model year 1960-19621962-1964 · 77 hp. Reference specifications; pending source verification.

The Oliver 1800 Series B/C is a tractor with a rated power output of 77 hp, positioning it in the middle power range for its class. Manufactured from 1960 to 1964, this model features a 6-cylinder diesel liquid-cooled engine, which drives four-wheel drive via a hydrostatic transmission. The listed weights for the tractor are 9205 to 10675 pounds. It is suited for tasks involving approximately 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

77 hp

Max power

48.1 kW

Weight

9205 to 10675 pounds

Catalogue coverage

Variants represented

Richest spec table

94 rows

Recorded power

77 hp

Transmissions

6-speed gear

Production years

1960-1964

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerOliverReference

Row-Crop tractorReference

Built in Charles City, Iowa, USAReference

Original price was $5,900 in 1964Reference

The "Series B" 1800 was released for the 1963 model year. Engine displacement was increased for both the gasoline and diesel engines. The "Series C" was released for the 1964 model year with tilt steering and improved hydraulics.Reference

Two- or four-wheel driveReference

Steeringpower assistReference

Steeringhydrostatic power (Series C)Reference

Disc brakesReference

Open operator station.Reference

Engine

Waukesha-Oliver 5.1L 6-cyl dieselReference

Waukesha-Oliver 4.6L 6-cyl gasolineReference

Fuel tank138.2 LReference

Fuel tank119.2 LReference

Drawbar (tested)51.0 kWReference

Waukesha-OliverReference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement5.1 LReference

Bore/Stroke98 x 111 mmReference

Air cleaneroil bathReference

Compression16.25:1Reference

Rated RPM2200Reference

Starter volts12Reference

gasolineReference

Displacement4.6 LReference

Bore/Stroke98 x 102 mmReference

Compression8.5:1Reference

Power at rated engine speed57.4 kWReference

Max power48.1 kWReference

Power at rated engine speed57.4 kWReference

Max power47.7 kWReference

Power at rated engine speed59.8 kWReference

Max power50.6 kWReference

Power at rated engine speed60.2 kWReference

Max power51.0 kWReference

Transmission

6-speed gearReference

12-speed partial power shiftReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutchdry discReference

TransmissionHydra-PowerReference

Typepartial power shiftReference

Gears12 forward and 4 reverseReference

Hydra-Power Drive adds a power shift between direct engine drive and a lower gear.Reference

PTO & Hydraulics

PTO (tested)60.2 kWReference

Rear PTOindependentReference

Rear PTO Type540/1000Reference

Dimensions

Wheelbase277 cmReference

Weight9205 to 10675 poundsReference

Front tire7.50-15Reference

Rear tire18.4-34Reference

Ag front7.50-15Reference

Ag rear18.4-34Reference

Length405 cmReference

Width219 cmReference

Height (steering wheel)202 cmReference

Front tread23/36 cmReference

Front tread152 to 213 cmReference

Front tread167/179 cmReference

Rear tread172 to 227 cmReference

Operating4175 kgReference

Operating4842 kgReference

Ballasted6506 kgReference

1800 Serial Numbers

Location:Serial plate on instrument panel.Reference

1962124 397 (Series B)Reference

1963129 286 (Series B)Reference

Final134 683 (Series B)Reference

1963129 286 (Series C)Reference

1964140 893 (Series C)Reference

Final149 818 (Series C)Reference

FAQ: How to read a serial number table.Reference

Test results

NTTL 831: diesel 12-speed 2WDReference

NTTL 832: diesel 12-speed 4WDReference

NTTL 839: gasoline 12-speed 2WDReference

NTTL 846: gasoline 12-speed 4WDReference

Diesel 12-speed 2WDNovember 6 - 15, 1962Link: Nebraska Tractor Test 831 fileReference

PTO performanceReference

Fuel use20.8 l/hourReference

Drawbar performanceReference

Gear 4H used for power test.Reference

Max pull4891 kgReference

Gear 2H used for pull test.Reference

Diesel 12-speed 4WDNovember 16 - December 1, 1962Link: Nebraska Tractor Test 832 fileReference

Max pull6366 kgReference

Gear 1D used for pull test.Reference

Gasoline 12-speed 2WDMay 22 - June 4, 1963Link: Nebraska Tractor Test 839 fileReference

Fuel use25.0 l/hourReference

Fuel use26.1 l/hourReference

Max pull4911 kgReference

Gasoline 12-speed 4WDSeptember 10 - 19, 1963Link: Nebraska Tractor Test 846 fileReference

Fuel use24.6 l/hourReference

Max pull6420 kgReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
