Tractor · 1971Unverified

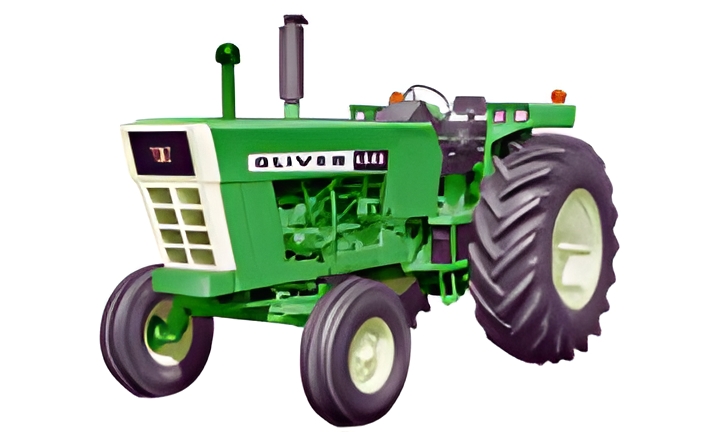

Oliver 1865

Name: Oliver 1865
Brand: Oliver

Oliver 1865 — Standard-tread tractor · 98 hp. Reference specifications; pending source verification.

The Oliver 1865 is a tractor with a rated power output of 98 hp, a mid-range figure for its class. Manufactured in 1971, the 1865 is equipped with a 6-cylinder diesel liquid-cooled engine and a two-wheel drive with powershift transmission. The operating weight of the tractor is 10530 to 10550 pounds. It is suitable for operations spanning 200–800 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

98 hp

Max power

62.1 kW

Weight

10530 to 10550 pounds

Catalogue coverage

Variants represented

Richest spec table

116 rows

Recorded power

98 hp

Recorded weight

4785 kg

Transmissions

10-speed two-speed power shift

Production years

1971-1971

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerOliver (a part of White)Reference

Standard-tread tractorReference

Built in Minneapolis, Minnesota, USAReference

Original price was $10,400 in 1971Reference

Two-wheel driveReference

Power steeringReference

Disc brakesReference

Open operator station.Reference

Engine

Minneapolis-Moline 7.4L 6-cyl dieselReference

Minneapolis-Moline 7.0L 6-cyl LP gasReference

Minneapolis-Moline 7.0L 6-cyl gasolineReference

Fuel tank151.4 LReference

Drawbar (claimed)65.6 kWReference

Drawbar (tested)65.5 kWReference

Minneapolis-Moline D451-6Reference

dieselReference

6-cylinderReference

liquid-cooledReference

Displacement7.4 LReference

Bore/Stroke111 x 127 mmReference

Air cleanerdryReference

Compression15.4:1Reference

Rated RPM1800Reference

Starter volts12Reference

Oil capacity12.3 LReference

Coolant capacity31.2 LReference

Minneapolis-Moline 425C-6Reference

LP gasReference

Displacement7.0 LReference

Bore/Stroke108 x 127 mmReference

Compression9:1Reference

Firing order1-5-3-6-2-4Reference

Coolant capacity28.4 LReference

gasolineReference

Compression7.1:1Reference

Power at rated engine speed72.9 kWReference

Max power62.1 kWReference

Power at rated engine speed72.8 kWReference

Max power62.7 kWReference

Power at rated engine speed72.9 kWReference

Max power65.5 kWReference

Transmission

10-speed two-speed power shiftReference

15-speed three-speed power shiftReference

TransmissionMinneapolis-Moline Ampli-TorcReference

Typetwo-speed power shiftReference

Gears10 forward and 2 reverseReference

Clutch355.6mm dry discReference

Oil capacity83.3 LReference

Five-speed transmission with power shift between drive drive (DD) and Ampli-Torc (AT).Reference

Typethree-speed power shiftReference

Gears15 forward and 3 reverseReference

Five-speed transmission with three-speed power shift.Reference

PTO & Hydraulics

PTO (claimed)72.3 kWReference

PTO (tested)72.9 kWReference

Typeclosed centerReference

Rear TypeIII/IIReference

Rear PTOindependentReference

Clutchwet discReference

Rear PTO Type1000 (1.375)Reference

Rear PTO Type540/1000 (1.375)Reference

Engine RPM540@1800Reference

Engine RPM1000@1800Reference

Dimensions

Wheelbase265 cmReference

Weight10530 to 10550 poundsReference

Front tire6.50-16Reference

Rear tire18.4-34Reference

Ag front6.50-16Reference

Ag rear18.4-34Reference

Ag rear18.4-38Reference

Ag rear23.1-34Reference

Ag rear24.5-32Reference

Length417 cmReference

Width239 cmReference

Diesel Weight4785 kgReference

LP-gas Weight4776 kgReference

Clearance (front axle)54 cmReference

Clearance (front axle)39 cmReference

Clearance (rear axle)60 cmReference

Front tread142 to 203 cmReference

Front tread137 cmReference

Rear tread152 to 243 cmReference

Steering wheel198 cmReference

1865 Serial Numbers

196943600001Reference

197043600211Reference

197143600416Reference

197243600830Reference

196943500001 (LP-gas)Reference

197043500061 (LP-gas)Reference

197143500086 (LP-gas)Reference

FAQ: How to read a serial number table.Reference

Electrical

GroundnegativeReference

Charging systemalternatorReference

LP-gas Batteries1Reference

Diesel Batteries2Reference

Battery volts12Reference

Oliver 1865 Height

Hood180 cmReference

Exhaust254 cmReference

Test results

NTTL 978: diesel Ampli-Torc 2WDReference

NTTL 979: LP gas Ampli-Torc 2WDReference

NTTL 980: gasoline Ampli-Torc 2WDReference

Diesel Ampli-Torc 2WDJune 4 - 20, 1968Link: Nebraska Tractor Test 978 fileReference

PTO performanceReference

Fuel use26.5 l/hourReference

Drawbar performanceReference

Fuel use25.7 l/hourReference

Gear 2DD used for power test.Reference

Max pull5422 kgReference

Gear 1AT used for pull test.Reference

LP gas Ampli-Torc 2WDJune 4 - 20, 1968Link: Nebraska Tractor Test 979 fileReference

Fuel use37.9 l/hourReference

Fuel use37.5 l/hourReference

Max pull5445 kgReference

Gasoline Ampli-Torc 2WDJune 11 - 20, 1968Link: Nebraska Tractor Test 980 fileReference

Fuel use31.8 l/hourReference

Max pull5356 kgReference

Speeds

With 18.4-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
