Tractor · 1949Unverified

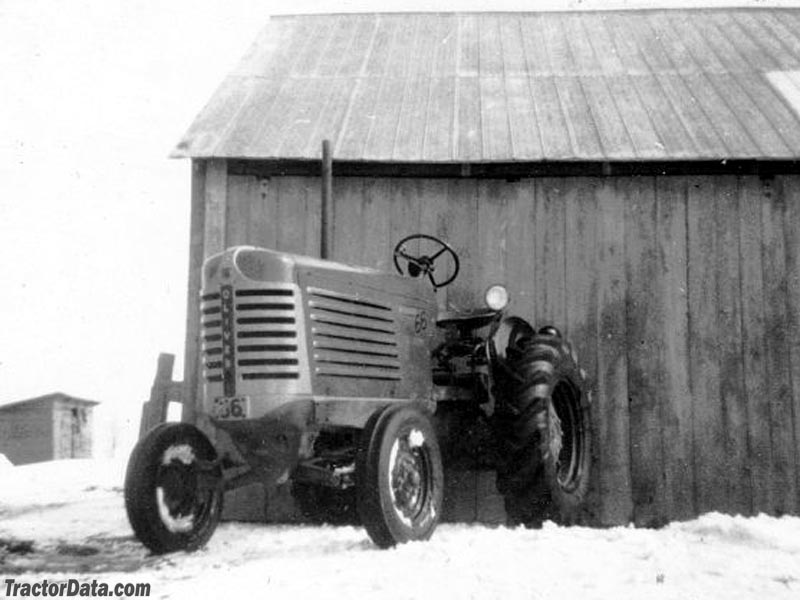

Oliver 66 Standard
Oliver 66 Standard — Fleetline Series · 22 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
22 hp
Max power
16.0 kW
Weight
1444 kg
Hover a source tag to verify
Overview
ManufacturerOliverReference
Standard-tread tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
SteeringmanualReference
Contracting band brakesReference
Open operator station.Reference
Variants
66Rrow-cropReference
66SstandardReference
Engine
Oliver-Waukesha 2.1L 4-cyl gasolineReference
Oliver-Waukesha 2.1L 4-cyl dieselReference
Fuel tank37.9 LReference
Plows2 (14-inch)Reference
Drawbar (tested)16.0 kWReference
Belt (tested)18.6 kWReference
Oliver-WaukeshaReference
gasolineReference
4-cylinderReference
liquid-cooled vertical I-headReference
Displacement2.1 LReference
Bore/Stroke84 x 95 mmReference
Fuel systemMarvel-Schebler carburetorReference
Air cleaneroil bathReference
Compression6.75:1Reference
Rated RPM1600Reference
Coolant capacity13.2 LReference
dieselReference
Displacement2.1 LReference
Compression15.5:1Reference
Belt power (max)18.6 kWReference
Max power16.0 kWReference
Transmission
6-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase186 cmReference
Weight1444 kgReference
Front tire5.00-15Reference
Rear tire10-24Reference
Ag front5.00-15Reference
Ag rear10-24Reference
Length314 cmReference
Height200 cmReference
Operating weight1444 kgReference
Ballasted weight2540 kgReference
Ground clearance29 cmReference
Front tread116/129 cmReference
Rear tread126/151 cmReference
66 Standard Serial Numbers
1949470001Reference
1950471051Reference
1951472391Reference
1952474233Reference
19533504001Reference
19544501624Reference
Final4504476Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter30 cmReference
Width18 cmReference
RPM987Reference
Speed934.21 meters/minReference
Test results
Gasoline 6-speed 2WDJune 6 - 25, 1949Link: Nebraska Tractor Test 413 fileReference
Belt fuel use (max)7.9 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1390 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
