Tractor · 1935Unverified

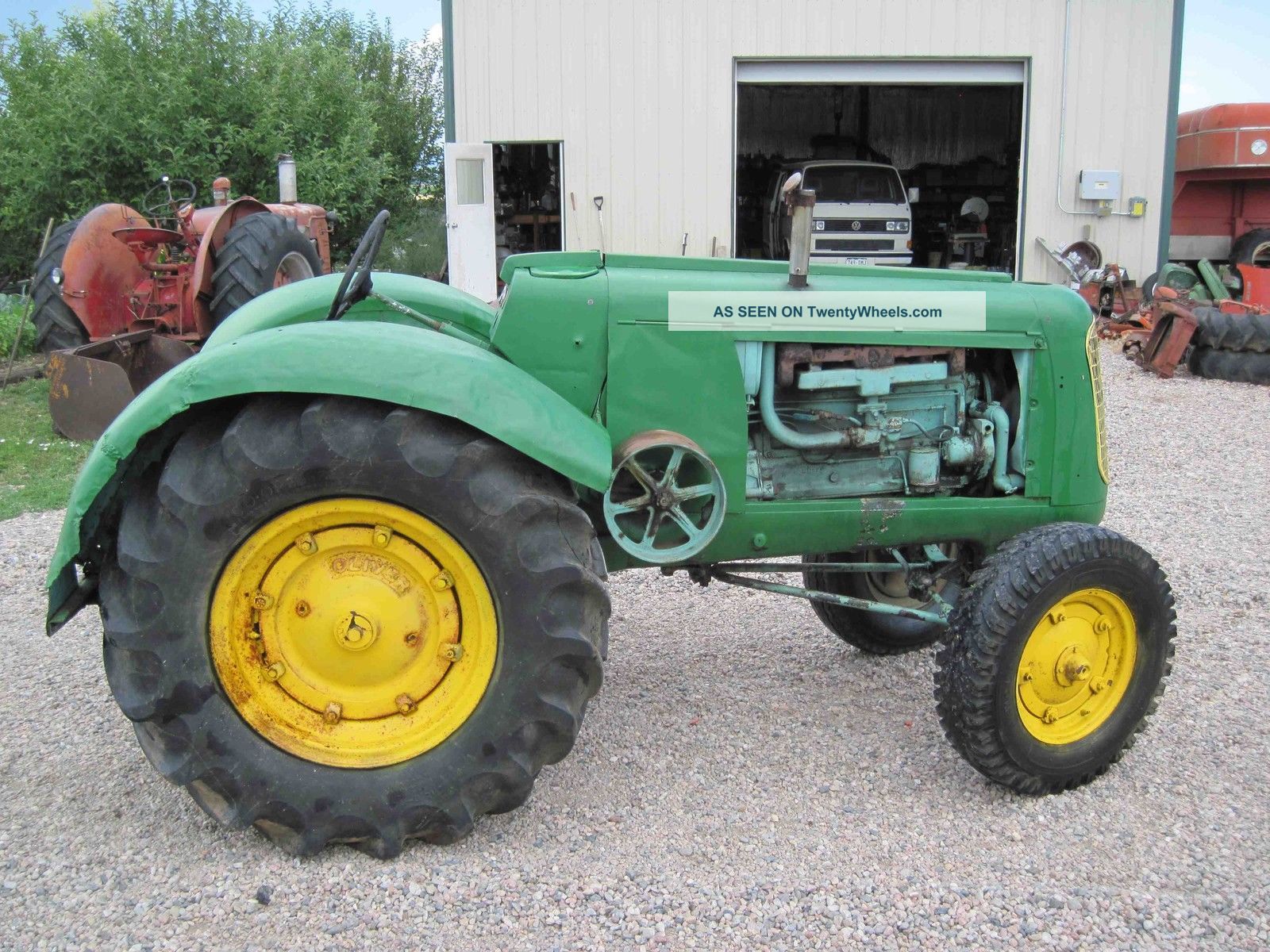

Oliver 70 Standard
Oliver 70 Standard — Standard-tread tractor · 20 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
20 hp
Max power
14.8 kW
Weight
1496 kg
Hover a source tag to verify
Overview
ManufacturerOliverReference
Standard-tread tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
Manual steeringReference
Open operator station.Reference
Variants
70 Row-Croptricycle chassisReference
70 Standardstandard chassisReference
70 Orchardlow-profileReference
25industrial tractorReference
Engine
Oliver 3.3L 6-cyl gasolineReference
Oliver 3.3L 6-cyl distillateReference
Plows2 (14-inch)Reference
Drawbar (tested)14.8 kWReference
Belt (tested)20.7 kWReference
OliverReference
gasolineReference
6-cylinderReference
liquid-cooledReference
The high-compression gasoline engine was used on the Oliver 70 Standard HC.Reference
Displacement3.3 LReference
Bore/Stroke79 x 111 mmReference
Fuel systemZenith carburetorReference
Air cleaneroil bathReference
Rated RPM1500Reference
Firing order1-5-3-6-2-4Reference
Coolant capacity4.3 LReference
distillateReference
The kerosene engine was used on the Oliver 70 Standard KD.Reference
Belt power (max)20.7 kWReference
Max power14.8 kWReference
Belt power (max)19.9 kWReference
Max power14.8 kWReference
Transmission
4-speed gearReference
TypegearReference
Gears4 forward and 1 reverseReference
Clutchdry discReference
Dimensions
Weight1496 kgReference
Front tire5.50-16Reference
Rear tire9.00-24Reference
Ag front5.50-16Reference
Ag rear9.00-24Reference
Length306 cmReference
70 Standard Serial Number Location
Serial number plate on the left side of the engine, behind the air cleaner.Reference
70 Standard Serial Numbers
1936300001 (Hart-Parr)Reference
1937300634 (Hart-Parr)Reference
1937301803 (Oliver)Reference
1938302084Reference
1939303465Reference
1940305362Reference
1941306594Reference
1942307580Reference
1943308188Reference
1944308484Reference
1945310218Reference
1946311116Reference
1947312690Reference
1948314221Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter32 cmReference
Width18 cmReference
RPM774Reference
Test results
NTTL 283: gasoline 4-speed 2WDReference
NTTL 284: kerosene 4-speed 2WDReference
Gasoline 4-speed 2WDJune 14 - 22, 1937Link: Nebraska Tractor Test 283 fileReference
Belt fuel use (max)10.6 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull1130 kgReference
Gear 1 used for pull test.Reference
Kerosene 4-speed 2WDJune 24 - 30, 1937Link: Nebraska Tractor Test 284 fileReference
Belt fuel use (max)12.9 l/hourReference
Max pull1194 kgReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
