Tractor · 1958Unverified

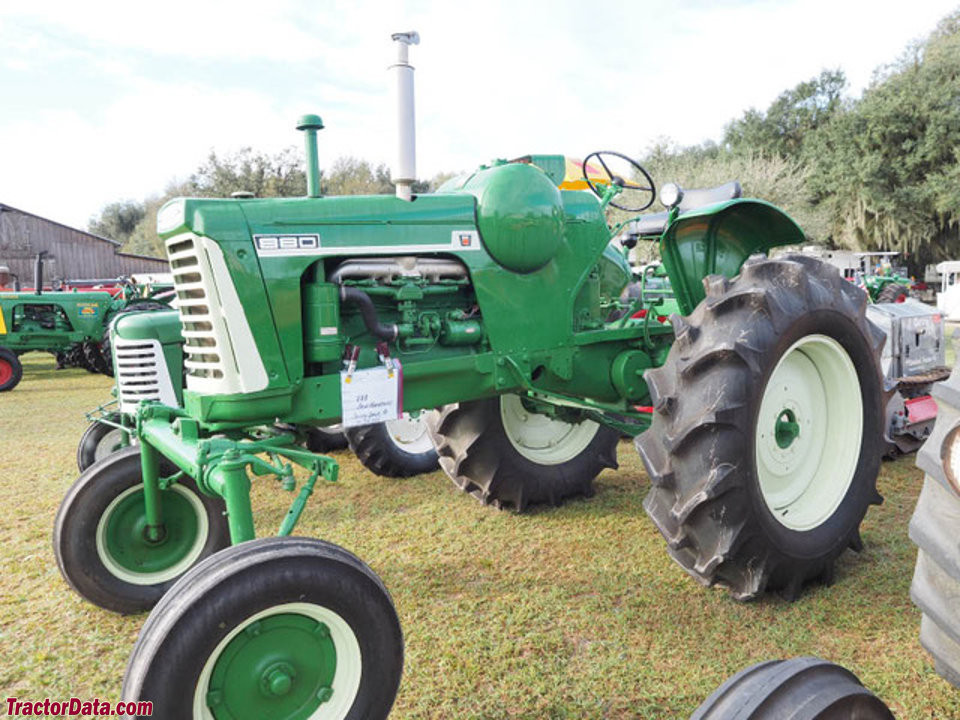

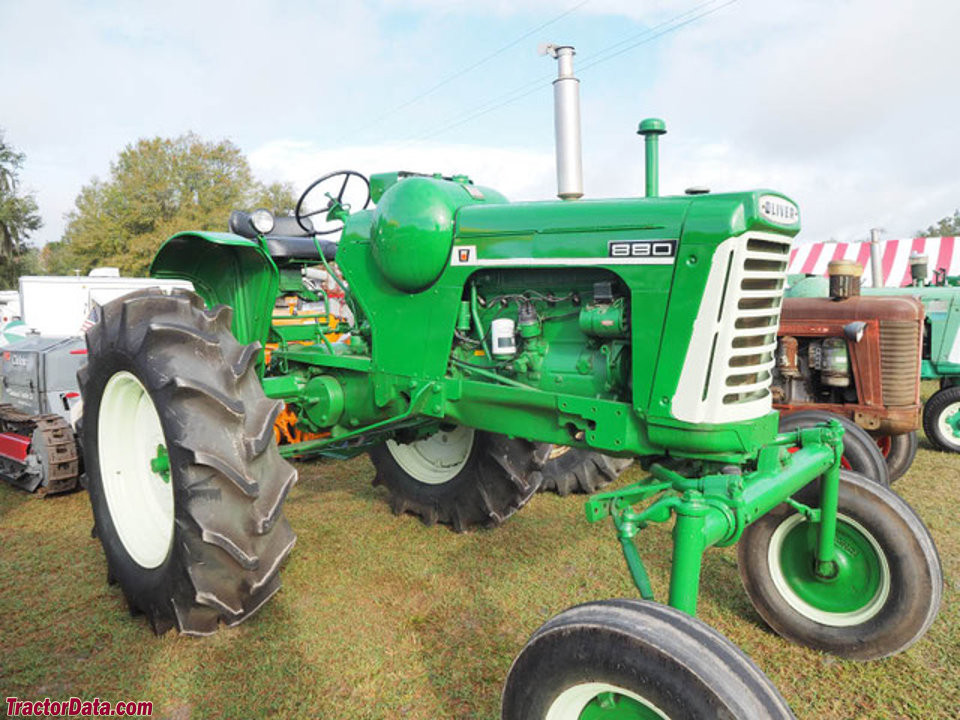

Oliver 880 Extra-High-Clearance

Oliver 880 Extra-High-Clearance — High-Clearance tractor · 55 hp. Reference specifications; pending source verification.

The Oliver 880 Extra-High-Clearance is a tractor model with a rated power output of 55 hp, which positions it at the lighter end of its class. It was manufactured from 1958 to 1963. The tractor features a 6-cylinder diesel liquid-cooled engine and two-wheel drive with a powershift transmission, and it has a listed operating weight of 2528 kg. It is capable of operating on areas of up to 200 acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power
55 hp
Weight
2528 kg

Catalogue coverage

Variants represented
2
Richest spec table
56 rows
Recorded power
55 hp
Recorded weight
2528 kg
Transmissions
6-speed gear
Production years
1958-1963
Verified variants
0

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerOliverReference
High-Clearance tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
Manual steeringReference
Mechanical disc brakesReference
Open operator station.Reference

Variants

880row-cropReference
880 WheatlandstandardReference
880 High-Crophigh-clearanceReference

Engine

Oliver 4.3L 6-cyl dieselReference
Oliver 4.3L 6-cyl LP-gasReference
Oliver 4.3L 6-cyl gasolineReference
OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke95 x 102 mmReference
Rated RPM1750Reference
Starter typeelectricReference
LP-gasReference
gasolineReference

Transmission

6-speed gearReference
12-speed two-speed power shiftReference
12-speed creeperReference
TypegearReference
Gears6 forward and 2 reverseReference
TransmissionPower-BoosterReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
TransmissionPower-Booster CreeperReference
TypecreeperReference

PTO & Hydraulics

PTO (claimed)41.0 kWReference
Rear TypeII/IReference
Rear PTO Type540Reference

Dimensions

Wheelbase255 cmReference
Weight2528 kgReference
Front tire7.50-18Reference
Rear tire13-38Reference
Ag front7.50-18Reference
Ag rear13-38Reference
Ag rear15.5-38Reference
Length387 cmReference
Width203 cmReference
Shipping weight2528 kgReference
Clearance (front axle)90 cmReference
Clearance (rear axle)80 cmReference
Front tread165 to 215 cmReference
Rear tread142 to 234 cmReference
Rear tread203 to 295 cmReference
Steering wheel223 cmReference

880 Extra-High-Clearance Serial Number Location

Serial number plate below the dashboard.Reference

Oliver 880 Extra-High-Clearance Height

Hood192 cmReference
Exhaust261 cmReference

Speeds

With 15.5-38 rear tires.Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
