Tractor · 1958Unverified

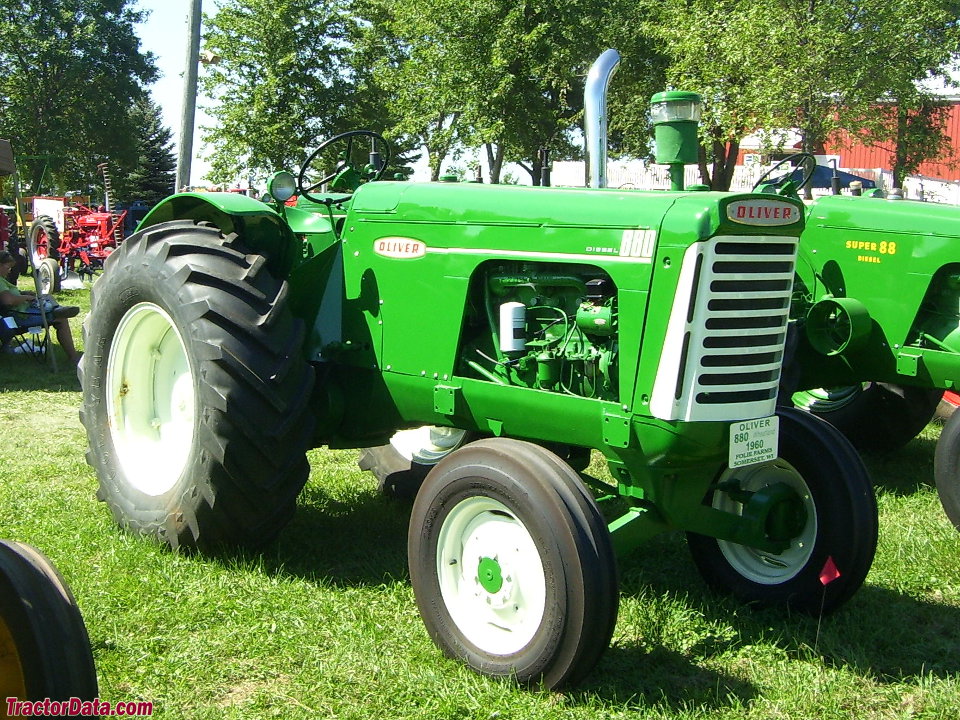

Oliver 880 Wheatland
Oliver 880 Wheatland — Row-Crop tractor. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
2404 kg
Hover a source tag to verify
Overview
ManufacturerOliverReference
Row-Crop tractorReference
Built in Charles City, Iowa, USAReference
Two-wheel driveReference
Manual steeringReference
Disc brakesReference
Open operator station.Reference
Variants
880row-cropReference
880 WheatlandstandardReference
880 High-Crophigh-clearanceReference
Engine
Oliver 4.3L 6-cyl dieselReference
Oliver 4.3L 6-cyl LP-gasReference
Oliver 4.3L 6-cyl gasolineReference
OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.3 LReference
Bore/Stroke95 x 102 mmReference
Rated RPM1750Reference
Starter typeelectricReference
LP-gasReference
gasolineReference
Transmission
6-speed gearReference
12-speed two-speed power shiftReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutch279.4mm mechanical dry discReference
TransmissionPower-BoosterReference
Typetwo-speed power shiftReference
Gears12 forward and 4 reverseReference
Dimensions
Wheelbase210 cmReference
Weight2404 kgReference
Front tire7.50x18Reference
Rear tire15-30Reference
Ag front7.50x18Reference
Ag rear15-30Reference
Length343 cmReference
Width192 cmReference
Height (steering wheel)189 cmReference
Front tread135 cmReference
Rear tread137 to 147 cmReference
Speeds
With 15-30 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
