Tractor · 1958Unverified

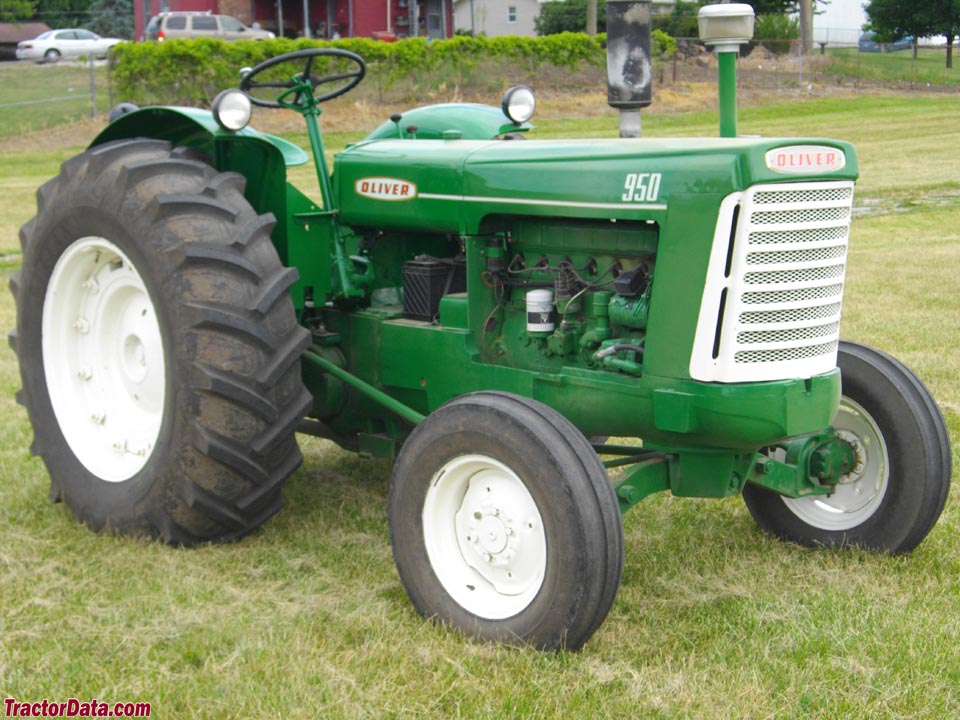

Oliver 950
Oliver 950 — 900 Series · 60 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
60 hp
Max power
45.8 kW
Weight
4717 kg
Hover a source tag to verify
Overview
ManufacturerOliverReference
Standard-tread tractorReference
Built in Charles City, Iowa, USAReference
Original price$5,900 (1961)Reference
Two-wheel driveReference
SteeringpowerReference
Disc brakesReference
Open operator station.Reference
Engine
Waukesha-Oliver 4.9L 6-cyl dieselReference
Waukesha-Oliver 4.9L 6-cyl gasolineReference
Drawbar (claimed)36.3 kWReference
Plows5-6Reference
Drawbar (tested)45.8 kWReference
Belt (tested)50.1 kWReference
Waukesha-OliverReference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement4.9 LReference
Bore/Stroke102 x 102 mmReference
Compression16:1Reference
Rated RPM1800Reference
Starter volts12Reference
gasolineReference
Belt power (max)50.1 kWReference
Max power45.8 kWReference
Transmission
6-speed gearReference
TypegearReference
Gears6 forward and 2 reverseReference
Clutchdry discReference
PTO & Hydraulics
PTO (claimed)44.6 kWReference
Rear PTOindependentReference
Rear PTO Type540Reference
Dimensions
Wheelbase202 cmReference
Weight4717 kgReference
Front tire7.50-18Reference
Rear tire18-26Reference
Ag front7.50-18Reference
Ag rear18-26Reference
Ag rear14-34Reference
Ag rear15-34Reference
Operating weight4717 kgReference
Ballasted weight6178 kgReference
Front tread152 cmReference
Rear tread157 cmReference
950 Serial Numbers
195867828Reference
195971245Reference
196084487Reference
1961110064Reference
Final115469Reference
FAQ: How to read a serial number table.Reference
Capacities
Diameter31 cmReference
Width22 cmReference
RPM1021Reference
Speed998.83 meters/minReference
Test results
Diesel 6-speed 2WDJuly 7 - 17, 1958Link: Nebraska Tractor Test 660 fileReference
Belt fuel use (max)18.2 l/hourReference
Drawbar performanceReference
Gear 3 used for power test.Reference
Max pull4540 kgReference
Gear 1 used for pull test.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
