Tractor · 1954Unverified

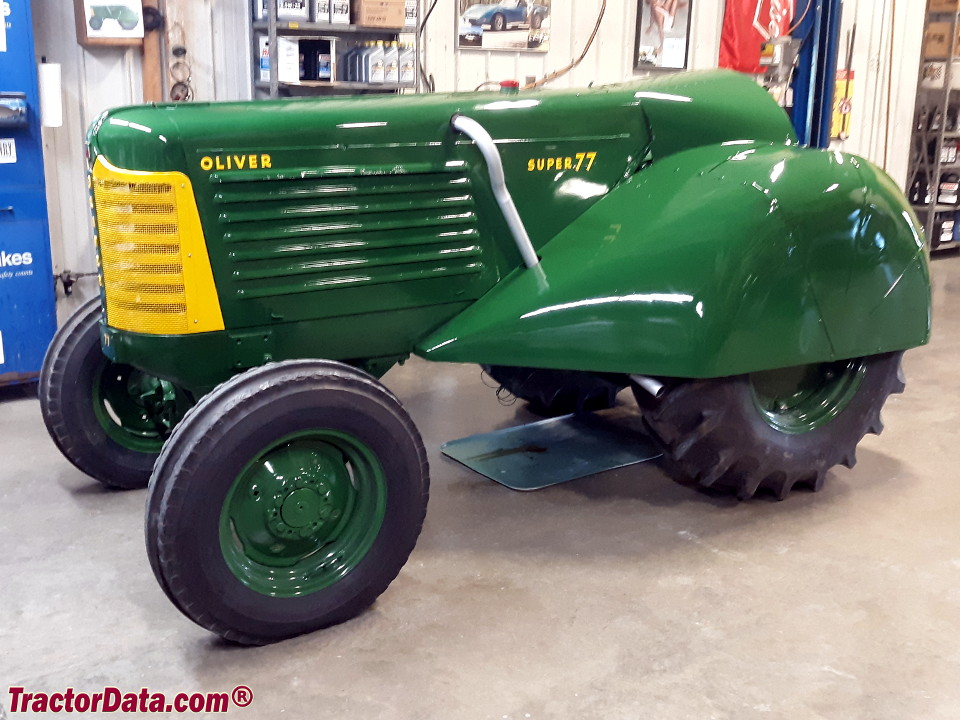

Oliver Super 77 Orchard

Name: Oliver Super 77 Orchard
Brand: Oliver

Oliver Super 77 Orchard — Orchard/Vineyard tractor. Reference specifications; pending source verification.

The Oliver Super 77 Orchard is a tractor. The Super 77 Orchard ran in production from 1954 to 1958. Under the hood is a 6-cylinder diesel liquid-cooled engine, paired with two-wheel drive with a 6-speed gearbox. It has a listed operating weight of 1916 kg, and it suits operations of varies. Recorded specifications in UK and US units are listed below.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Weight

1916 kg

Catalogue coverage

Variants represented

Richest spec table

57 rows

Recorded weight

1916 kg

Transmissions

6-speed gear

Production years

1954-1958

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerOliverReference

Orchard/Vineyard tractorReference

Two-wheel driveReference

Manual steeringReference

Differential mechanical disc brakesReference

Open operator station.Reference

Variants

Super 77row-cropReference

Super 77-SstandardReference

Super 77-OorchardReference

Engine

Waukesha-Oliver 3.5L 6-cyl gasolineReference

Oliver 3.5L 6-cyl dieselReference

Waukesha-Oliver 3.5L 6-cyl LP-gasReference

Plows3-4Reference

Waukesha-OliverReference

gasolineReference

6-cylinderReference

liquid-cooledReference

Displacement3.5 LReference

Bore/Stroke89 x 95 mmReference

Air cleaneroil bathReference

Pre-heatingcoolant heaterReference

Compression7.00:1Reference

Rated RPM1600Reference

Firing order1-5-3-6-2-4Reference

Starter volts6 (early)Reference

Starter volts12 (late)Reference

Oil capacity4.7 LReference

Coolant capacity17.0 LReference

OliverReference

dieselReference

Compression16:1Reference

Starter volts12Reference

LP-gasReference

Transmission

6-speed gearReference

TypegearReference

Gears6 forward and 2 reverseReference

Clutch254mm dry discReference

Oil capacity17.0 LReference

Capacities

Fuel62.5 LReference

PTO & Hydraulics

Hydraulic system9.1 LReference

Capacity9.1 LReference

Pump flow49.2 lpmReference

Rear PTOindependentReference

Rear PTO Type540 (1.375)Reference

Dimensions

Wheelbase207 cmReference

Weight1916 kgReference

Front tire7.50-18Reference

Rear tire14-26Reference

Ag front7.50-18Reference

Ag rear14-26Reference

Length338 cmReference

Width187 cmReference

Height155 cmReference

Shipping weight1916 kgReference

Ground clearance31 cmReference

Front tread129 cmReference

Rear tread132 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
