Tractor · 1935Unverified

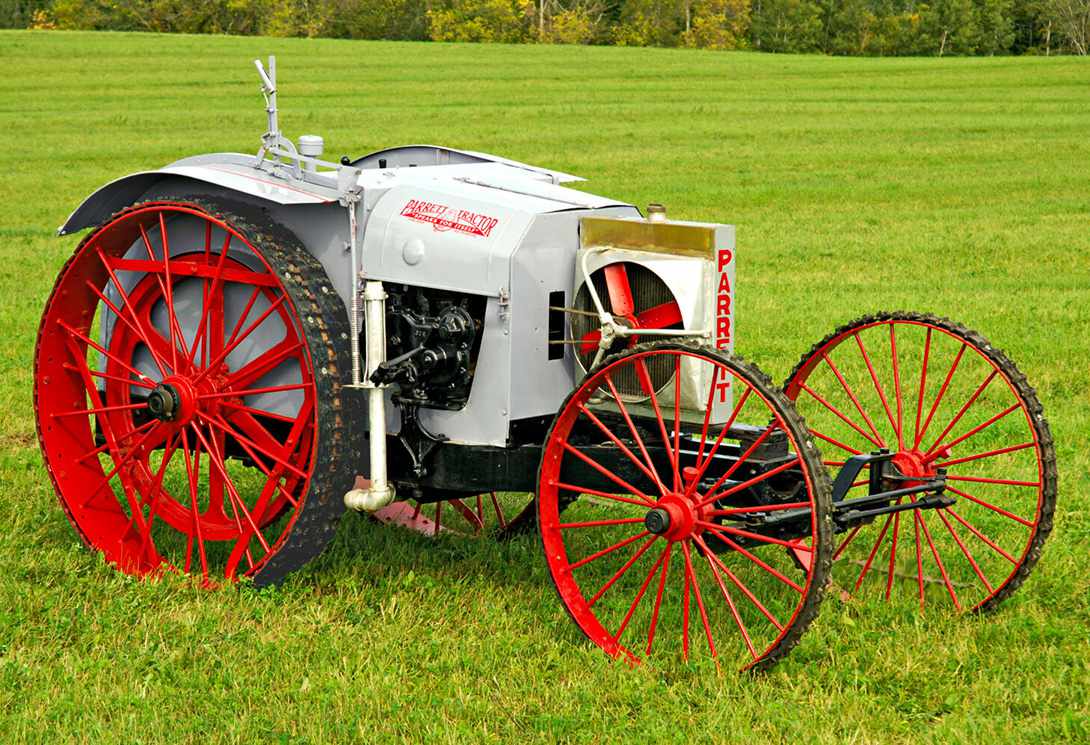

Parrett 6
Parrett 6 — Ross Carrier built. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Weight
1179 kg
Hover a source tag to verify
Overview
DistributorParrettReference
ManufacturerRoss CarrierReference
Built in Benton Harbor, Michigan, USAReference
Two-wheel driveReference
SteeringmanualReference
Open operator station.Reference
Engine
Hercules 3.7L 4-cyl gasolineReference
Plows2 (14-inch)Reference
Hercules IXBReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement3.7 LReference
Bore/Stroke108 x 102 mmReference
Fuel systemZenith 3/4-inch carburetorReference
Starter typeelectricReference
Transmission
3-speed sliding gearReference
Typesliding gearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight1179 kgReference
Rear tire11.25-24Reference
Ag rear11.25-24Reference
Length297 cmReference
Width152 cmReference
Height121 cmReference
Rear tread111 to 193 cmReference
Capacities
Diameter30 cmReference
Width16 cmReference
RPM830Reference
Speed792.48 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
