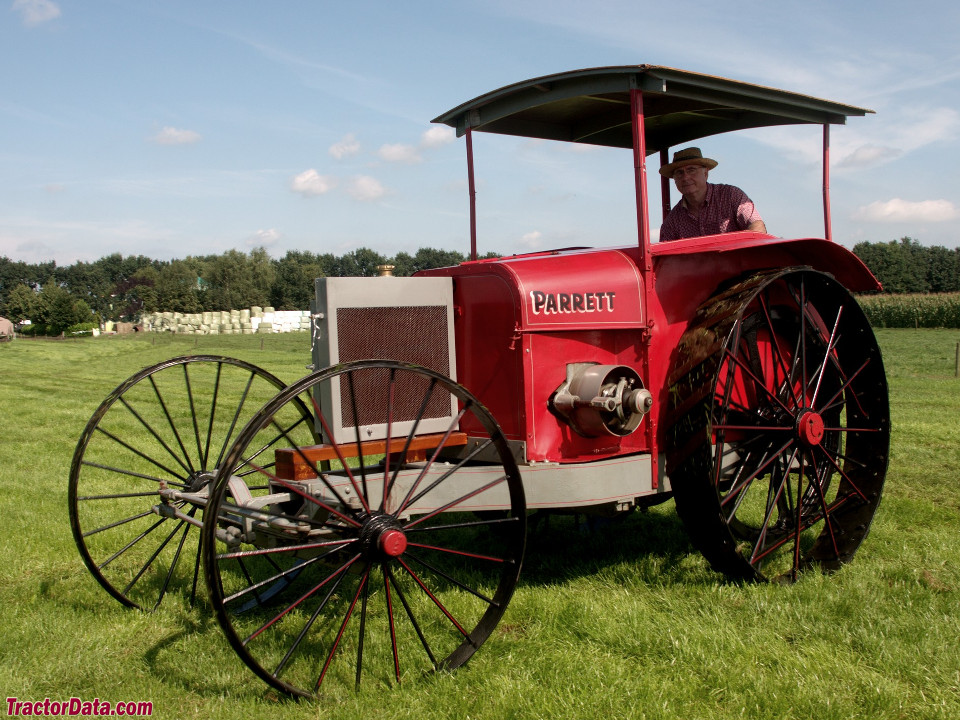

The Parrett E 10-20 is a compact tractor with a rated output of 10 horsepower. It was produced from 1915 to 1917, featuring a 4-cylinder liquid-cooled engine. The tractor is equipped with two-wheel drive and a 2-speed gearbox, and it has a listed weight of 2268 kilograms. It is designed for use on plots of land of approximately 200 acres.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
10 hp
Weight
2268 kg
Catalogue coverage
Variants represented
2
Richest spec table
30 rows
Recorded power
10 hp
Recorded weight
2268 kg
Transmissions
2-speed unsynchronized gear
Production years
1915-1917
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerParrettReference
Built in Chicago, Illinois, USAReference
Two-wheel driveReference
SteeringmanualReference
Four-post canopy.Reference
Engine
Buda 5.1L 4-cyl keroseneReference
Fuel tank68.1 LReference
Drawbar (claimed)7.5 kWReference
Belt (claimed)14.9 kWReference
BudaReference
keroseneReference
4-cylinderReference
liquid-cooledReference
Displacement5.1 LReference
Bore/Stroke108 x 140 mmReference
Fuel systemKingston carburetorReference
Rated RPM900Reference
Coolant capacity18.9 LReference
Transmission
2-speed unsynchronized gearReference
Typeunsynchronized gearReference
Gears2 forward and 1 reverseReference
Dimensions
Weight2268 kgReference
Rear tire60x10Reference
Ag rear60x10 steelReference
Length274 cmReference
Width182 cmReference
Height243 cmReference
Rear axle66 mmReference
Capacities
Diameter38 cmReference
Width17 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
