Tractor · 1918Unverified

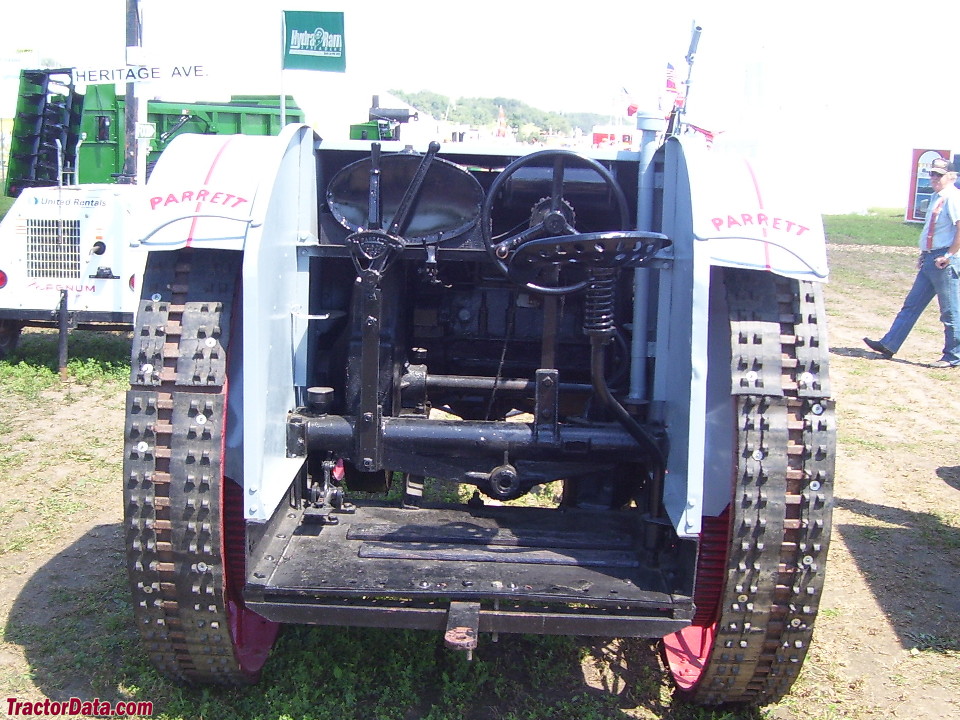

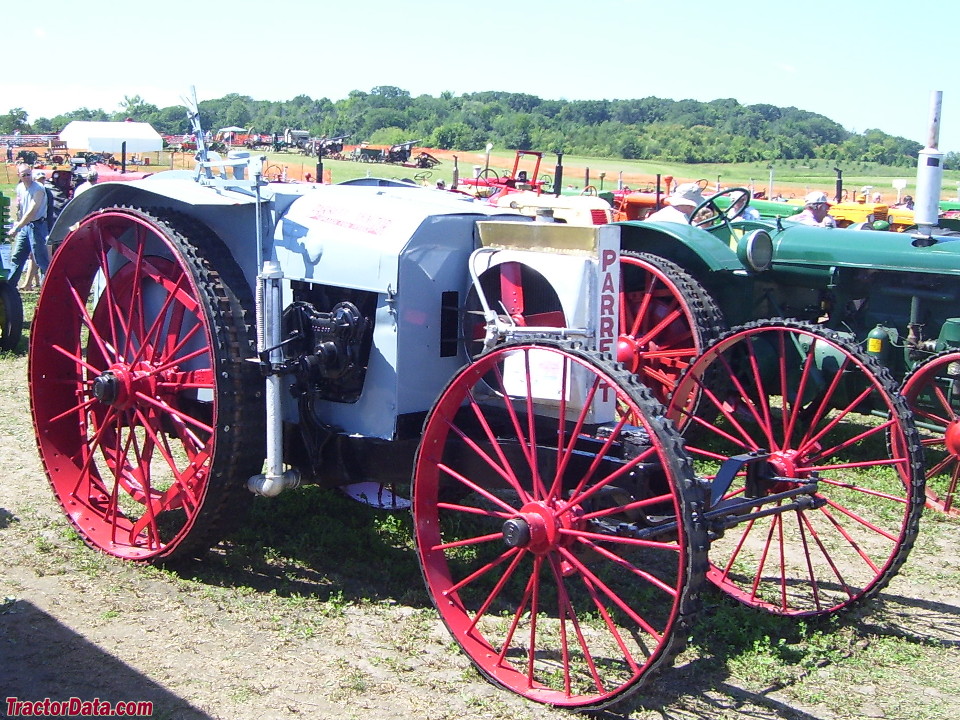

Parrett H 12-25

Name: Parrett H 12-25
Brand: Parrett

Parrett H 12-25 · 12 hp. Reference specifications; pending source verification.

The Parrett H 12-25 is a tractor rated at 12 hp — making it one of the more compact options in its class. The H 12-25 was manufactured from 1918 to 1920. Power comes from a 4-cylinder liquid-cooled engine, driving through two-wheel drive with a 2-speed gearbox. Listed weight is 2358 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

12 hp

Weight

2358 kg

Catalogue coverage

Variants represented

Richest spec table

29 rows

Recorded power

12 hp

Recorded weight

2358 kg

Transmissions

2-speed unsynchronized gear

Production years

1918-1920

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerParrettReference

Built in Chicago, Illinois, USAReference

Two-wheel driveReference

Open operator station.Reference

Engine

Buda 5.1L 4-cyl keroseneReference

Drawbar (claimed)8.9 kWReference

Belt (claimed)18.6 kWReference

Plows3 (14-inch)Reference

BudaReference

keroseneReference

4-cylinderReference

liquid-cooledReference

Displacement5.1 LReference

Bore/Stroke108 x 140 mmReference

Fuel systemKingston 1.25-inch carburetorReference

Air cleanerwater bathReference

Transmission

2-speed unsynchronized gearReference

Typeunsynchronized gearReference

Gears2 forward and 1 reverseReference

Dimensions

Weight2358 kgReference

Rear tire60x10Reference

Ag rear60x10 steelReference

Length370 cmReference

Width182 cmReference

Height170 cmReference

Capacities

Diameter30 cmReference

Width19 cmReference

RPM1000Reference

Speed957.56 meters/minReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
