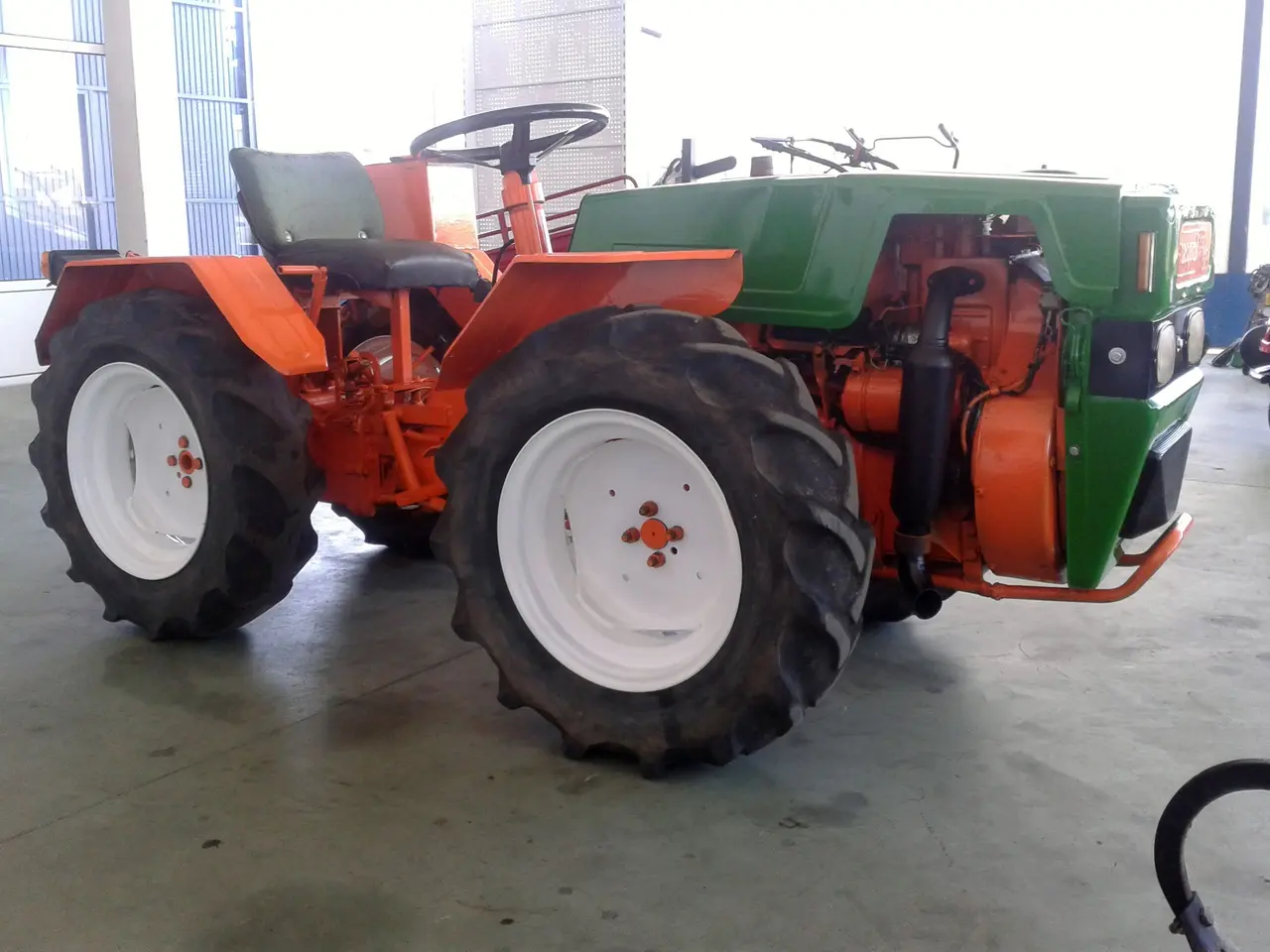

The Pasquali 409 is a tractor with a rated output of 17 hp — making it one of the more compact options in its class. Power comes from a 2-cylinder diesel air-cooled engine, driving through two-wheel drive with a 9-speed gearbox. Listed weight is 600 kg, and it is aimed at jobs of around up to 200 ac. Available dimensions and performance figures follow in both unit systems.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
17 hp
Weight
600 kg
Catalogue coverage
Variants represented
2
Richest spec table
33 rows
Recorded power
17 hp
Recorded weight
600 kg
Transmissions
9-speed gear
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerPasqualiReference
Built in ItalyReference
Two-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Mechanical disc brakesReference
Open operator station.Reference
Engine
0.8L 2-cyl dieselReference
Engine13.0 kWReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement0.8 LReference
Power13.0 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear PTOindependentReference
Rear PTO Type480/720Reference
Dimensions
Wheelbase127 cmReference
Weight600 kgReference
Front tire4.00-12Reference
Rear tire7.50-16Reference
Standard tires (ag)Front: 4.00-12. Rear: 7.50-16Reference
Length233 cmReference
Width103 cmReference
Height (steering wheel)110 cmReference
Ground clearance23 cmReference
Front tread91 cmReference
Rear tread81 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
