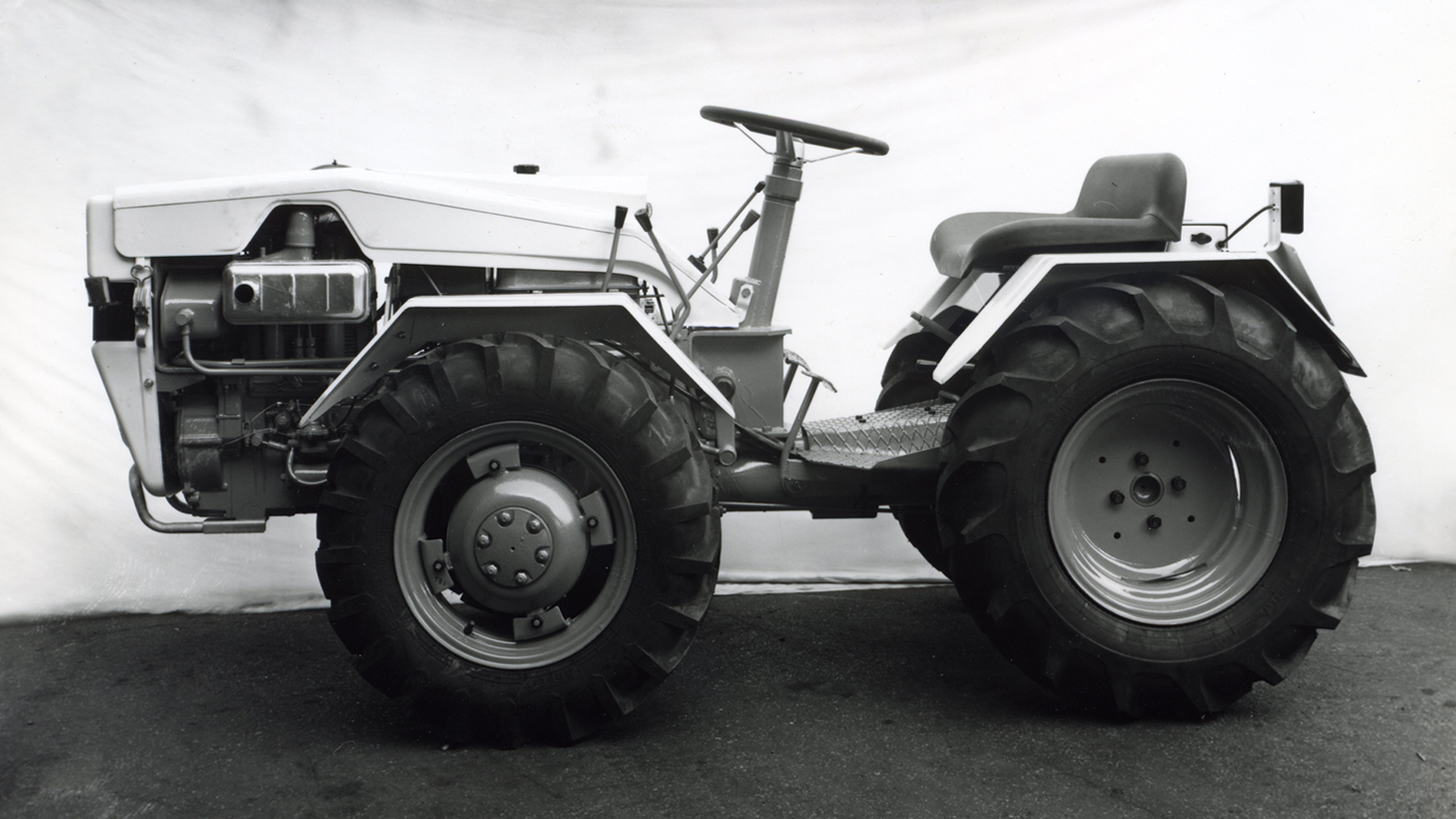

Pasquali 439
Pasquali 439 · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1210 kg
Hover a source tag to verify
Overview
ManufacturerPasqualiReference
Built in ItalyReference
Four-wheel driveReference
Differential lockmechanical front and rearReference
Articulated power steeringReference
Hydraulic disc brakesReference
Open operator station.Reference
Engine
Lombardini 1.6L 2-cyl dieselReference
Engine28.0 kWReference
LombardiniReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.6 LReference
Bore/Stroke100 x 105 mmReference
Power28.0 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type580/740Reference
Dimensions
Wheelbase131 cmReference
Weight1210 kgReference
Front tire7.50-16Reference
Rear tire9.50-20Reference
Standard tires (ag)Front: 7.50-16. Rear: 9.50-20Reference
Length276 cmReference
Width123 cmReference
Height (steering wheel)125 cmReference
Ground clearance32 cmReference
Front tread99 to 115 cmReference
Rear tread99 to 115 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
