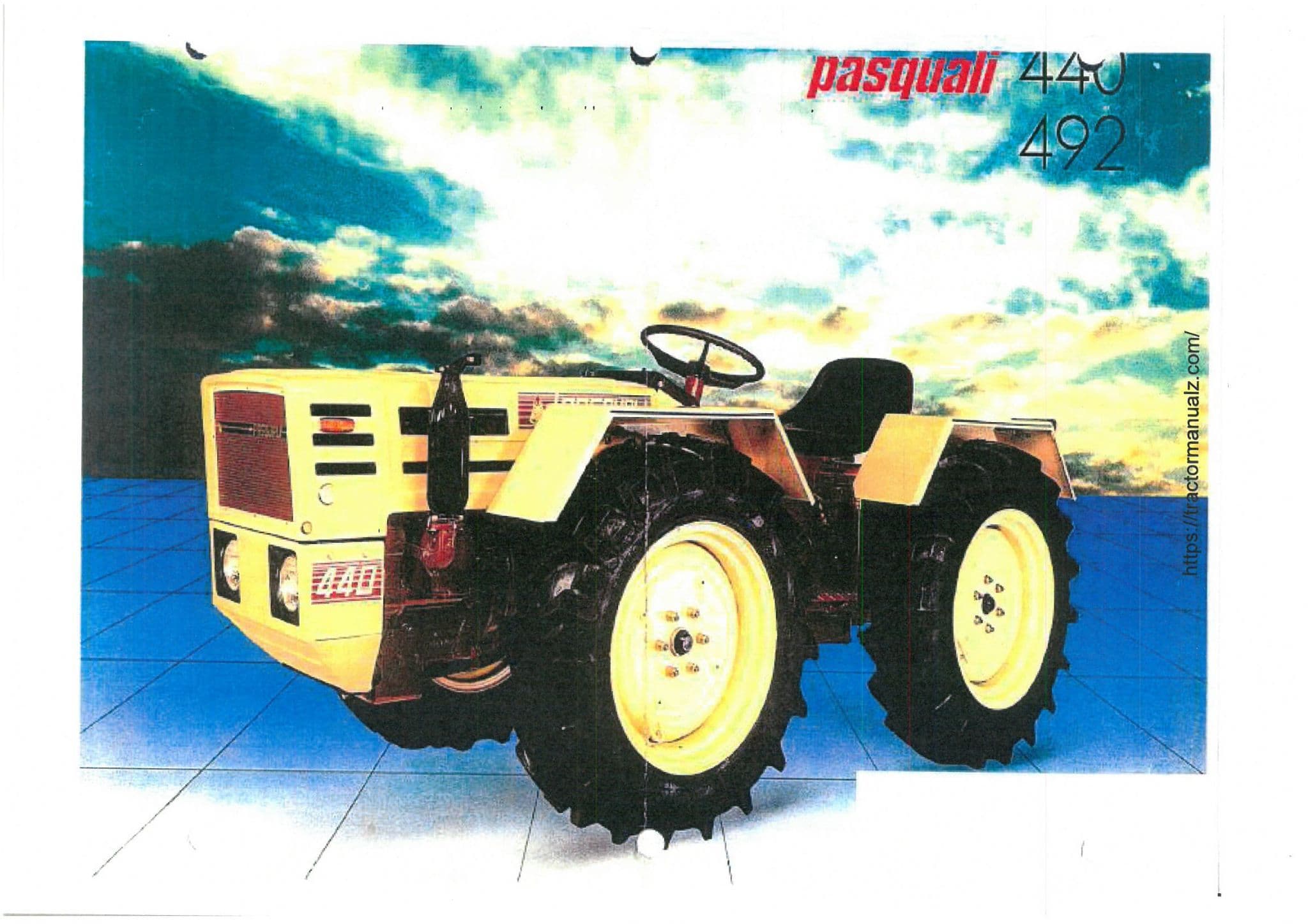

Pasquali 440
Pasquali 440 · 38 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
38 hp
Weight
1309 kg
Hover a source tag to verify
Overview
ManufacturerPasqualiReference
Built in ItalyReference
Four-wheel driveReference
Differential lockmechanical front and rearReference
Articulated power steeringReference
Hydraulic disc brakesReference
Open operator station.Reference
Engine
Lombardini 1.6L 2-cyl dieselReference
Engine28.0 kWReference
Lombardini 832Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.6 LReference
Bore/Stroke100 x 105 mmReference
Power28.0 kWReference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchdry discReference
PTO & Hydraulics
Rear TypeIReference
Rear PTOindependentReference
Rear PTO Type580/740Reference
Dimensions
Wheelbase132 cmReference
Weight1309 kgReference
Front tire9.50-20Reference
Rear tire9.50-20Reference
Standard tires (ag)Front: 9.50-20. Rear: 9.50-20Reference
Length309 cmReference
Width124 cmReference
Height (steering wheel)127 cmReference
Ground clearance33 cmReference
Front tread99 to 116 cmReference
Rear tread99 to 116 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
