Tractor · 1981Unverified

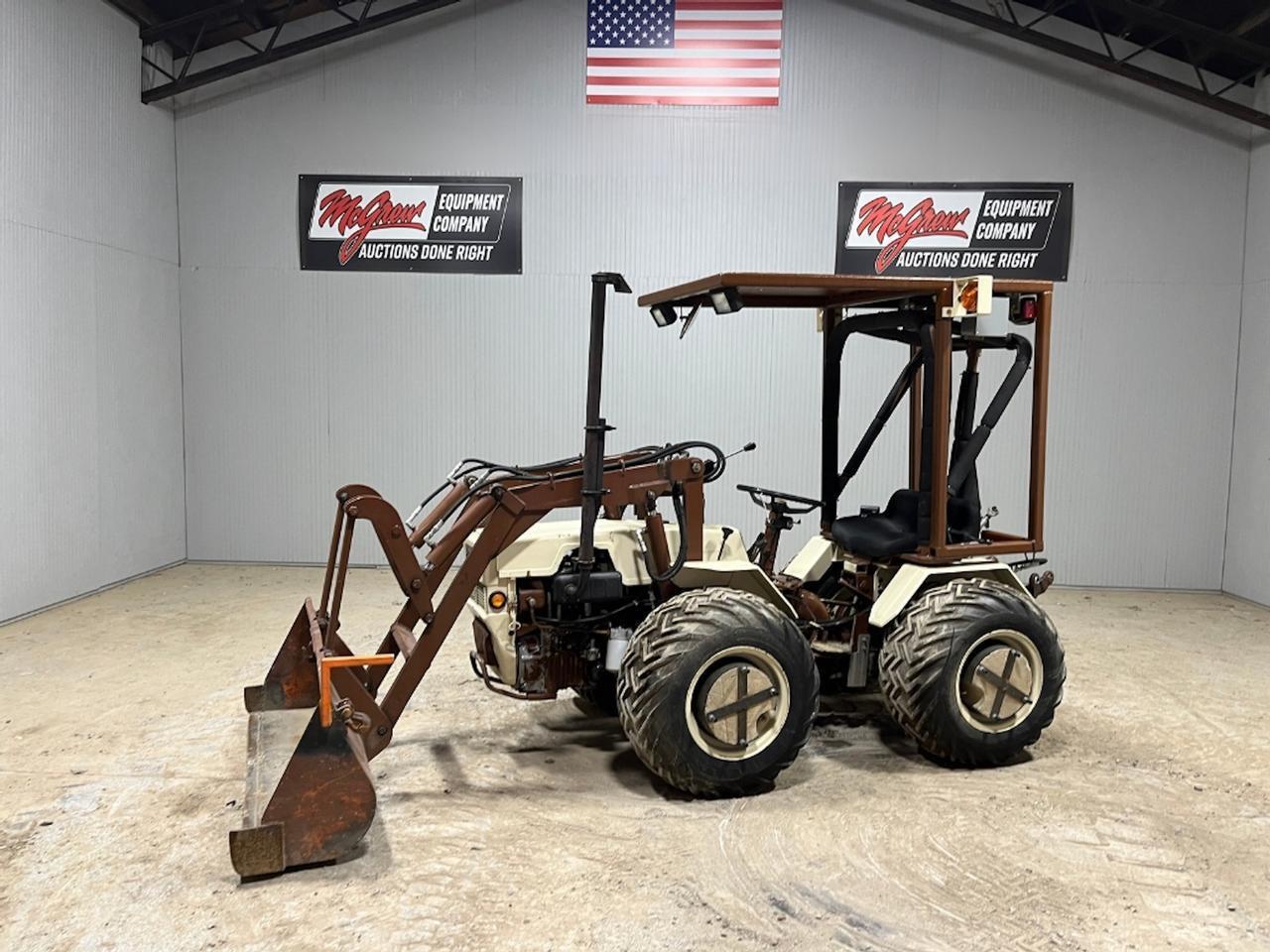

Pasquali 993
Pasquali 993 — Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
810 kg
Hover a source tag to verify
Overview
ManufacturerPasqualiReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Differential lockmechanical front and rearReference
SteeringmechanicalReference
SteeringpowerReference
Open operator station.Reference
Engine
Ruggerini 1.1L 2-cyl dieselReference
Engine22.4 kWReference
RuggeriniReference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.1 LReference
Bore/Stroke90 x 85 mmReference
Power22.4 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutch203.2mm dry discReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Rear TypeIReference
Controlposition controlReference
Rear PTO Type540/720Reference
Dimensions
Wheelbase118 cmReference
Weight810 kgReference
Front tire7.50x16Reference
Rear tire7.50x16Reference
Ag front7.50x16Reference
Ag rear7.50x16Reference
Length245 cmReference
Height (steering wheel)110 cmReference
Ground clearance30 cmReference
Front tread83 to 147 cmReference
Rear tread83 to 147 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH92Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
