Tractor · 1970Unverified

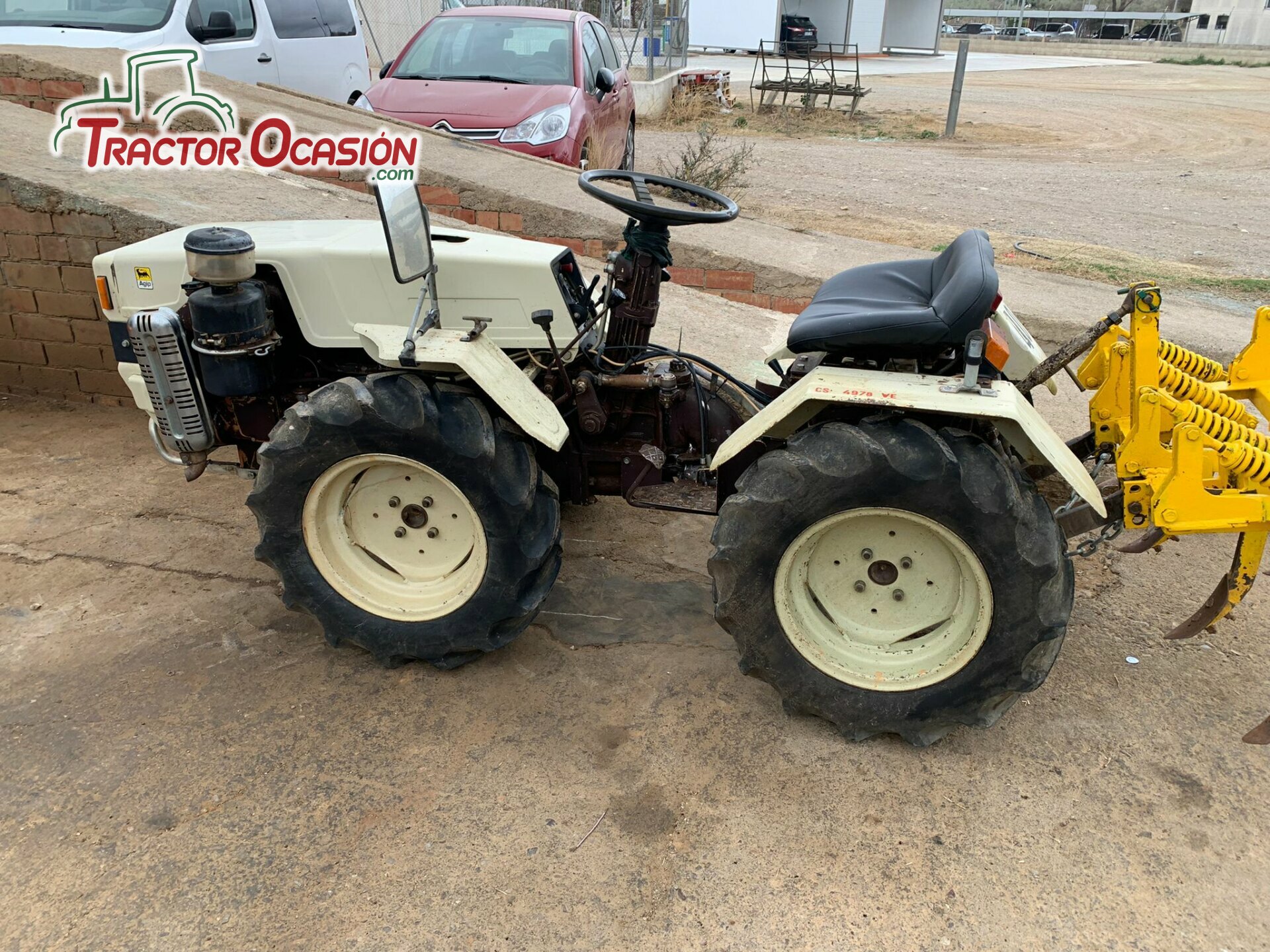

Pasquali 996
Pasquali 996 — Utility tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
899 kg
Hover a source tag to verify
Overview
ManufacturerPasqualiReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Differential lockmechanical rearReference
SteeringmechanicalReference
SteeringpowerReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Lombardini 1.3L 2-cyl dieselReference
Engine (net)22.0 kWReference
Lombardini LDA-672Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.3 LReference
Bore/Stroke95 x 95 mmReference
Power (net)22.0 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchmechanical dry discReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Pump flow9.8 lpmReference
Rear TypeIReference
Rear PTO Type540/750/groundReference
Dimensions
Wheelbase118 cmReference
Weight899 kgReference
Front tire7.50-16Reference
Rear tire7.50-16Reference
Ag front7.50-16Reference
Ag rear7.50-16Reference
Length245 cmReference
Height (steering wheel)106 cmReference
Ground clearance24 cmReference
Front tread67 to 103 cmReference
Rear tread67 to 103 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH92Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
