Tractor · 1970Unverified

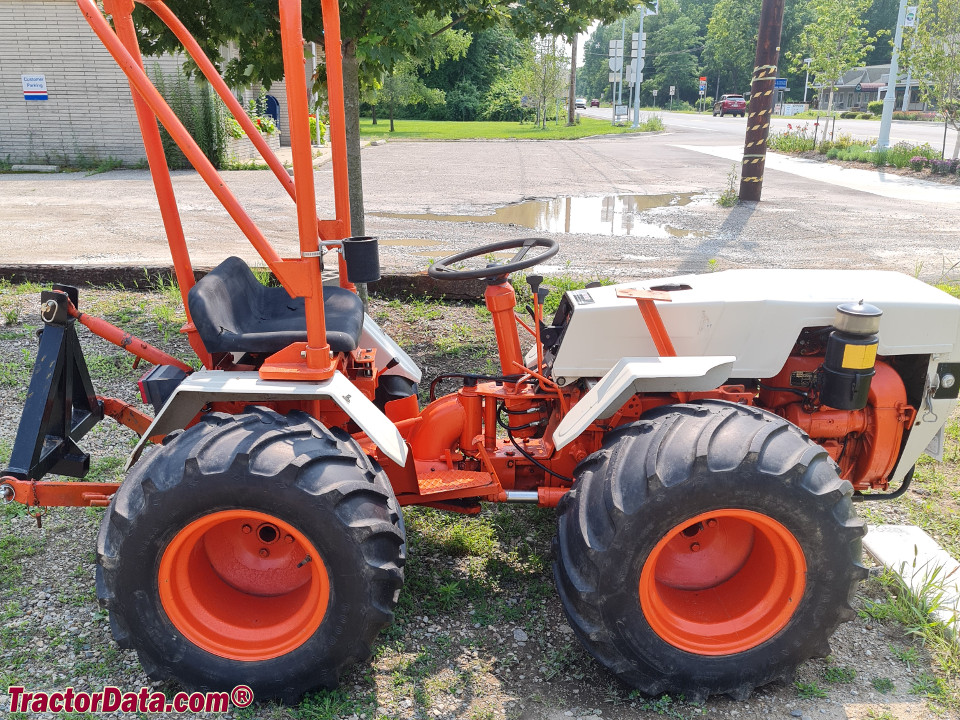

Pasquali 997
Pasquali 997 — Utility tractor · 26 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
26 hp
Weight
810 kg
Hover a source tag to verify
Overview
ManufacturerPasqualiReference
Utility tractorReference
Built in ItalyReference
Four-wheel driveReference
Differential lockmechanical rearReference
SteeringmechanicalReference
SteeringpowerReference
Mechanical drum brakesReference
Open operator station.Reference
Engine
Ruggerini 1.1L 2-cyl dieselReference
Engine (net)19.0 kWReference
Ruggerini RD-92/2Reference
dieselReference
2-cylinderReference
air-cooledReference
Displacement1.1 LReference
Bore/Stroke92 x 93 mmReference
Power (net)19.0 kWReference
Rated RPM3000Reference
StarterelectricReference
Starter volts12Reference
Transmission
9-speed gearReference
TypegearReference
Gears9 forward and 3 reverseReference
Clutchmechanical dry discReference
Three gears, plus reverse, in three ranges.Reference
PTO & Hydraulics
Typeopen centerReference
Valves0 or 1Reference
Pump flow9.8 lpmReference
Rear TypeIReference
Rear PTO Type540/750/groundReference
Dimensions
Wheelbase118 cmReference
Weight810 kgReference
Front tire7.50x16Reference
Rear tire7.50x16Reference
Ag front7.50x16Reference
Ag rear7.50x16Reference
Length245 cmReference
Height (steering wheel)106 cmReference
Ground clearance24 cmReference
Front tread83 to 147 cmReference
Rear tread83 to 147 cmReference
Electrical
GroundnegativeReference
Battery volts12Reference
Battery AH92Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
