Tractor · 2008Unverified

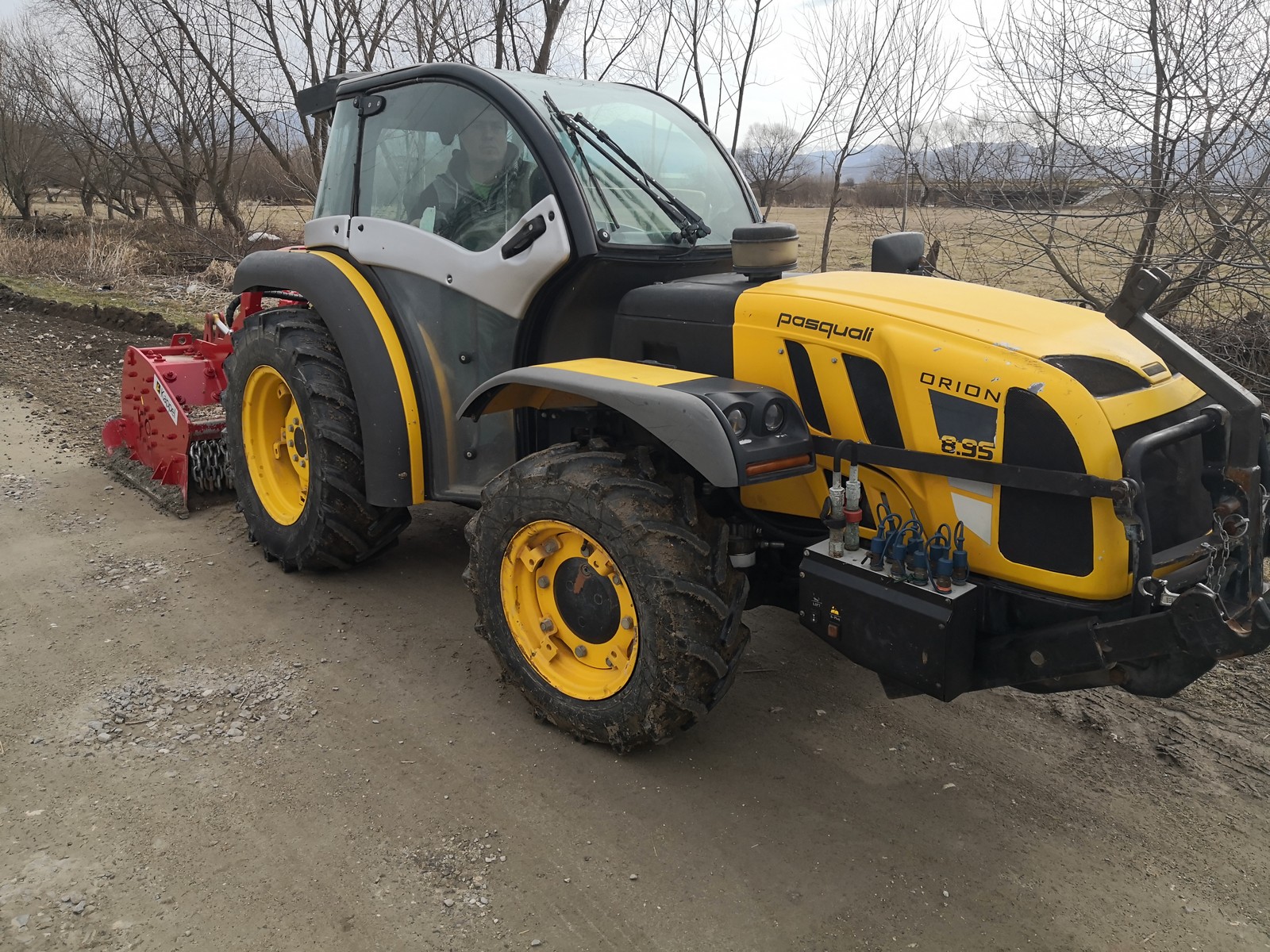

Pasquali ORION 8.95
Pasquali ORION 8.95 — Farm/Agricultural tractor · 91 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
91 hp
Hover a source tag to verify
Overview
ManufacturerPasqualiReference
Farm/Agricultural tractorReference
Built in ItalyReference
Four-wheel driveReference
Wet disc brakesReference
Engine
VM Daimler-Benz 3.0L 4-cyl dieselReference
Fuel tank54.9 LReference
Engine67.5 kWReference
VM Daimler-Benz D754 TE2Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement3.0 LReference
Power67.5 kWReference
Rated RPM2300Reference
Torque338.1 NmReference
Torque RPM1300Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Rear TypeII/IReference
Rear lift (at ends)2300 kgReference
Front HitchIReference
Front lift800 kgReference
Rear PTOindependentReference
Rear PTO Type540/750Reference
Dimensions
Wheelbase149 cmReference
Front tire9.50-20Reference
Rear tire9.50-20Reference
Ag front9.50-20Reference
Ag rear9.50-20Reference
Length320 cmReference
Height (steering wheel)112 cmReference
Height (ROPS)210 cmReference
Ground clearance23 cmReference
Electrical
Charging systemalternatorReference
Charging amps55Reference
Battery AH100Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
