Tractor · 1910Unverified
Pioneer Tractor 30
Pioneer Tractor 30 — Standard-tread tractor · 30 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
30 hp
Weight
10704 kg
Hover a source tag to verify
Overview
ManufacturerPioneer TractorReference
Standard-tread tractorReference
Built in Winona, Minnesota, USAReference
Two-wheel driveReference

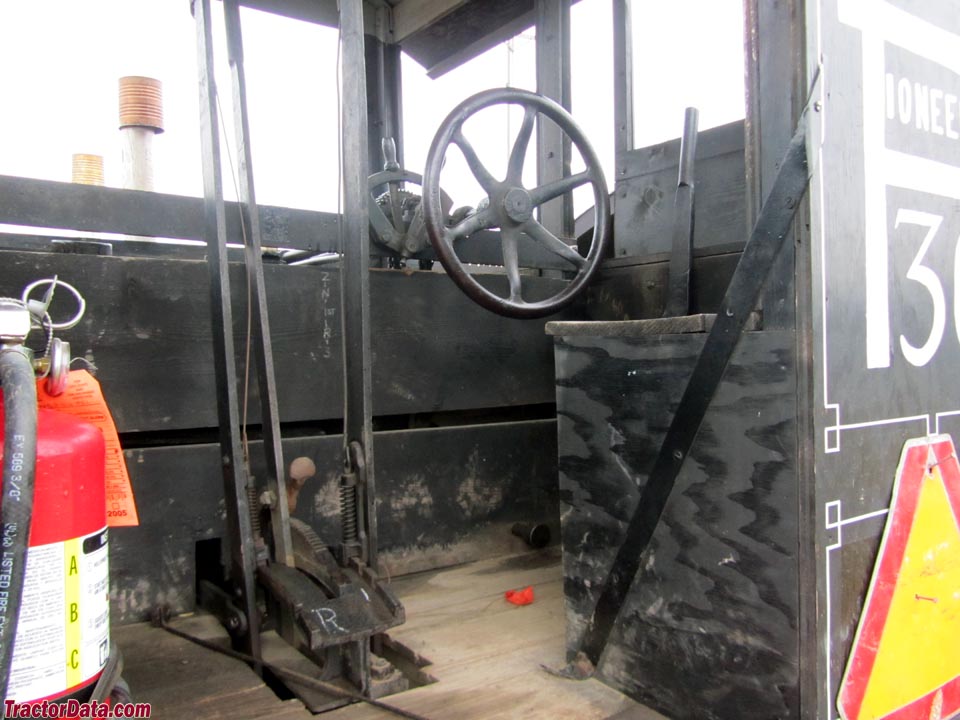

SteeringmanualReference
Cab standard with upholstered seat.Reference
Engine
Pioneer Tractor 20.2L 4-cyl gasolineReference
Fuel tank340.7 LReference
Aux. fuel56.8 LReference
Drawbar (claimed)22.4 kWReference
Belt (claimed)44.7 kWReference
Plows10 (14-inch)Reference
Pioneer TractorReference
gasolineReference
4-cylinderReference
liquid-cooled horizontally-opposedReference
Displacement20.2 LReference
Bore/Stroke178 x 203 mmReference
Fuel systemKingston 2.5-inch carburetorReference
Rated RPM625Reference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Wheelbase396 cmReference
Weight10704 kgReference
Rear tire96x24Reference
Ag rear96x24 (steel)Reference
Length601 cmReference
Width304 cmReference
Height365 cmReference
Links
Pioneer 30-60: Restoration of a Pioneer 30-60 at Gas Engine MagazineReference
Capacities
Diameter45 cmReference
Width38 cmReference
RPM625Reference
Speed861.67 meters/minReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
