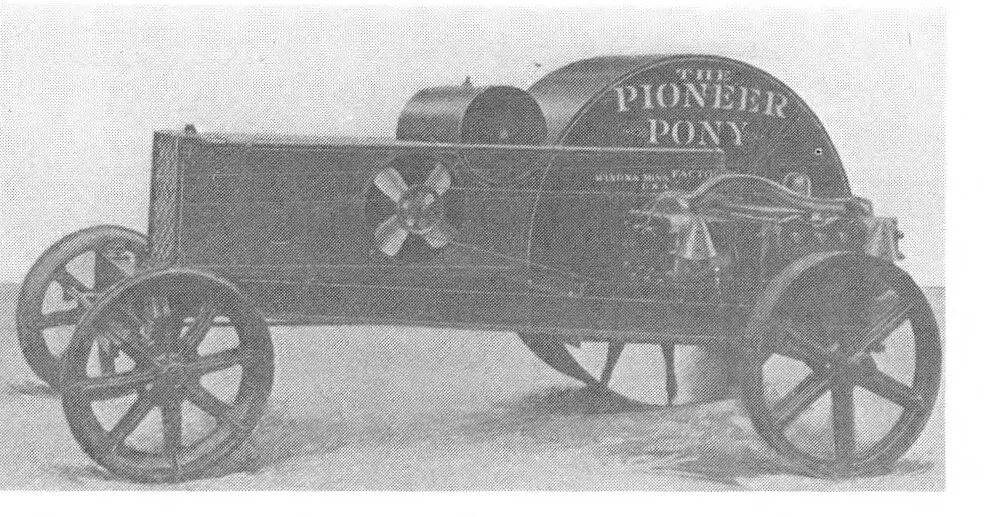

The Pioneer Tractor Pony is a tractor with a rated power of 12 hp, which places it at the lighter end of its class. The Pony was built in 1916. It is powered by a 4-cylinder petrol liquid-cooled engine, paired with a 3-speed gearbox. It has a listed operating weight of 2721 kg, and it suits operations of up to 200 ac. Recorded specifications in UK and US units are listed below.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
2721 kg
Catalogue coverage
Variants represented
2
Richest spec table
26 rows
Recorded power
12 hp
Recorded weight
2721 kg
Transmissions
3-speed gear
Production years
1916-1916
Verified variants
0
No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.
Hover a source tag to verify
Overview
ManufacturerPioneer TractorReference
Standard-tread tractorReference
Built in Winona, Minnesota, USAReference
Drive3x1 1WDReference
SteeringmanualReference
Open operator station.Reference
Engine
Pioneer Tractor 7.7L 4-cyl gasolineReference
Fuel tank124.9 LReference
Drawbar (claimed)8.9 kWReference
Belt (claimed)17.9 kWReference
Pioneer TractorReference
gasolineReference
4-cylinderReference
liquid-cooledReference
Displacement7.7 LReference
Bore/Stroke127 x 152 mmReference
Rated RPM650Reference
Transmission
3-speed gearReference
TypegearReference
Gears3 forward and 1 reverseReference
Dimensions
Weight2721 kgReference
Length401 cmReference
Width243 cmReference
Height162 cmReference
Capacities
Diameter25 cmReference
Width20 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
