Tractor · 1977Unverified

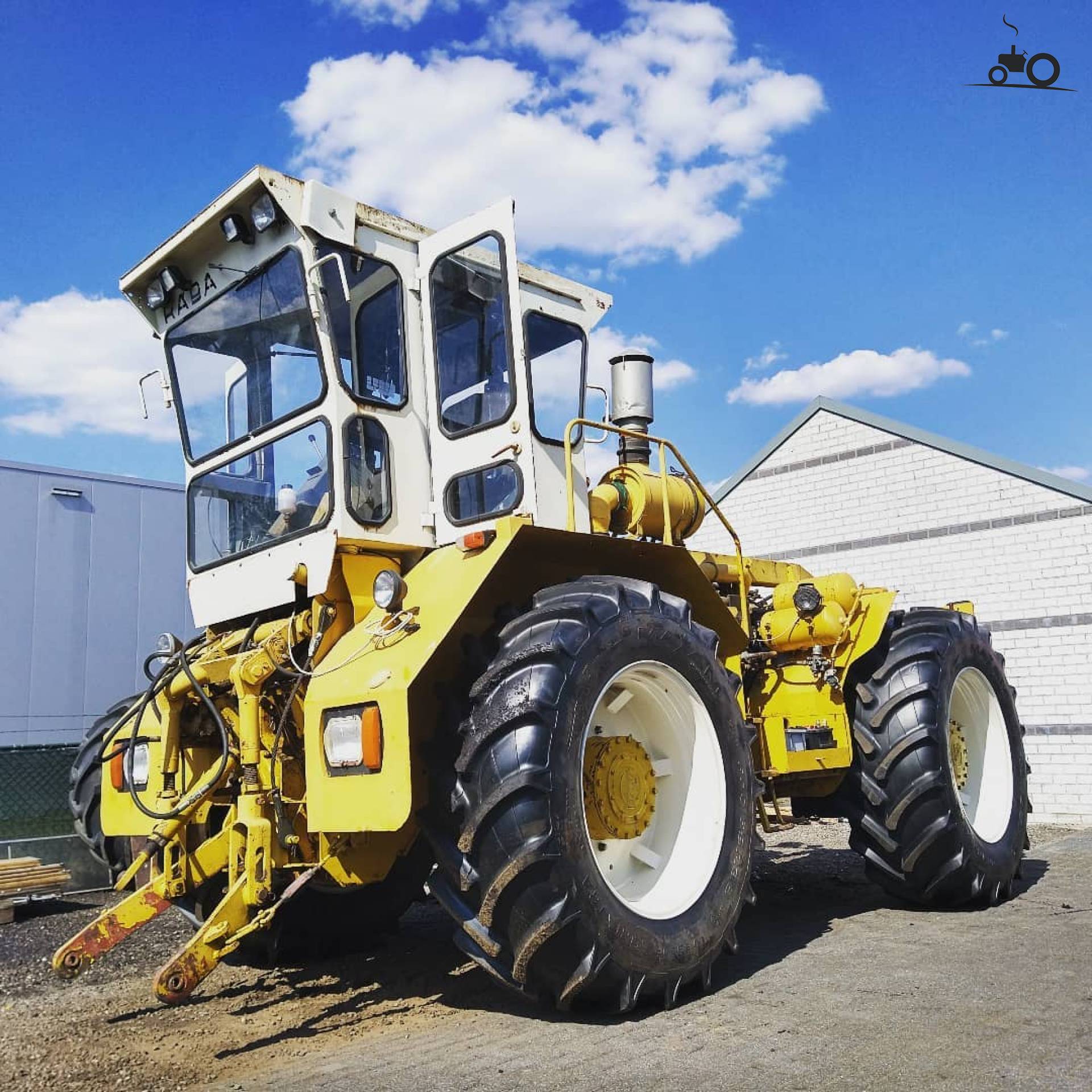

Raba 180
Raba 180 — Tool Carrier tractor · 180 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
180 hp
Weight
10500 kg
Hover a source tag to verify
Overview
ManufacturerRabaReference
Tool Carrier tractorReference
Built in Gyor, HungaryReference
Drive4x4 4WDReference
Power steeringReference
Pneumatic drum brakesReference
Cab standard with air-conditioning.Reference
Engine
Raba-MAN 10.3L 6-cyl dieselReference
Fuel tank400.1 LReference
Engine134.2 kWReference
Raba-MAN D2156Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.3 LReference
Bore/Stroke121 x 150 mmReference
Power134.2 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2000Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speedReference
Gears10 forward and 2 reverseReference
PTO & Hydraulics
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Weight10500 kgReference
Length678 cmReference
Width249 cmReference
Height335 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
