Tractor · 1974Unverified

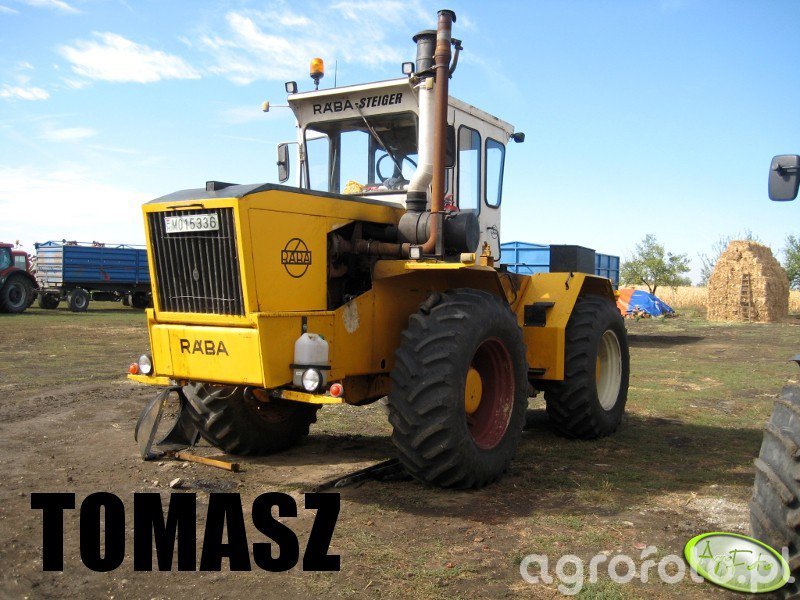

Raba 245
Raba 245 — Raba-Steiger Series · 245 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
245 hp
Weight
12580 kg
Hover a source tag to verify
Overview
ManufacturerRabaReference
Four-wheel Drive (4WD) tractorReference
Built in Gyor, HungaryReference
Four-wheel driveReference
Articulated power steeringReference
Hydraulic brakesReference
Cab standard.Reference
Engine
Raba-MAN 10.3L 6-cyl dieselReference
Fuel tank780.1 LReference
Engine182.7 kWReference
Raba-MAN D2156Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement10.3 LReference
Bore/Stroke121 x 150 mmReference
Power182.7 kWReference
Air cleanerdryReference
Compression17:1Reference
Rated RPM2100Reference
StarterelectricReference
Starter volts12Reference
Transmission
10-speedReference
TransmissionDana-Spicer 1010-2AReference
Gears10 forward and 2 reverseReference
Dimensions
Wheelbase307 cmReference
Weight12580 kgReference
Front tire20.8R34Reference
Rear tire20.8R34Reference
Standard tires (ag)Front: 20.8R34. Rear: 20.8R34Reference
Optional tires (ag)Front: 18.4R34. Rear: 18.4R34Reference
Optional tires (ag)Front: 30.5R32. Rear: 30.5R32Reference
Length671 cmReference
Width376 cmReference
Height (exhaust)389 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
