Tractor · 1998Unverified

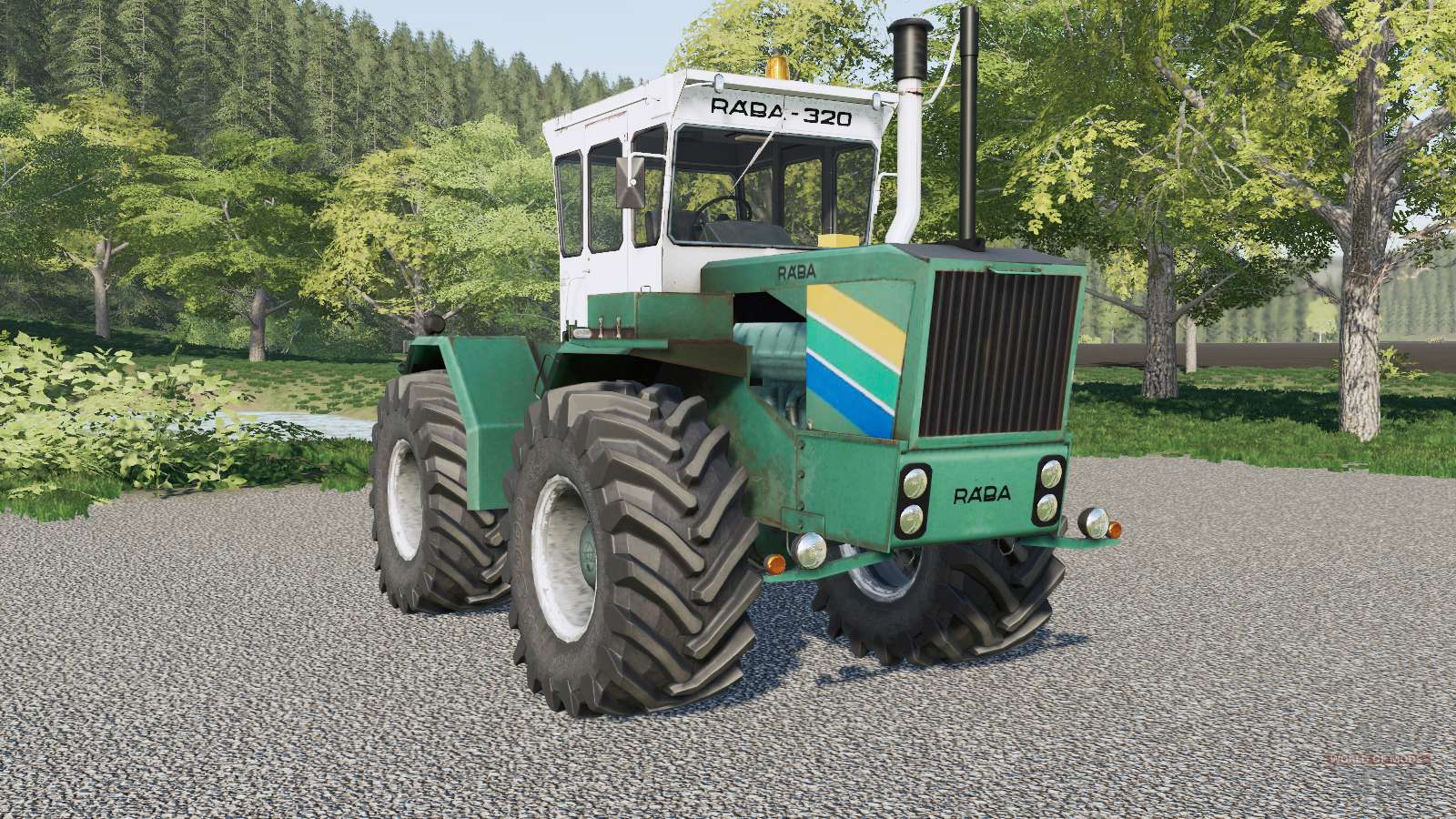

Raba 320

Name: Raba 320
Brand: Raba

Raba 320 — Four-wheel Drive (4WD) tractor · 320 hp. Reference specifications; pending source verification.

The Raba 320 is a tractor model rated at 320 hp, categorising it among the more powerful machines in its class. Manufactured from 1998 to 2001, this model features a 6-cylinder turbocharged diesel liquid-cooled engine, transmitting power through a four-wheel drive system with a 10-speed gearbox. The listed weight is 12580 kg, suitable for large-scale operations equivalent to around 1,500+ acres.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

320 hp

Weight

12580 kg

Catalogue coverage

Variants represented

Richest spec table

27 rows

Recorded power

320 hp

Recorded weight

12580 kg

Transmissions

10-speed

Production years

1998-2001

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerRabaReference

Four-wheel Drive (4WD) tractorReference

Built in Gyor, HungaryReference

Four-wheel driveReference

Articulated power steeringReference

Cab standard.Reference

Engine

Raba 10.3L 6-cyl dieselReference

Fuel tank780.1 LReference

Engine238.6 kWReference

Raba D10 TLL-235Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement10.3 LReference

Bore/Stroke121 x 150 mmReference

Power238.6 kWReference

Fuel systemdirect injectionReference

Rated RPM2100Reference

StarterelectricReference

Starter volts12Reference

Transmission

10-speedReference

TransmissionDana-Spicer 1010-2AReference

Gears10 forward and 2 reverseReference

Dimensions

Wheelbase307 cmReference

Weight12580 kgReference

Length616 cmReference

Height (cab)335 cmReference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
