Tractor · 1980Unverified

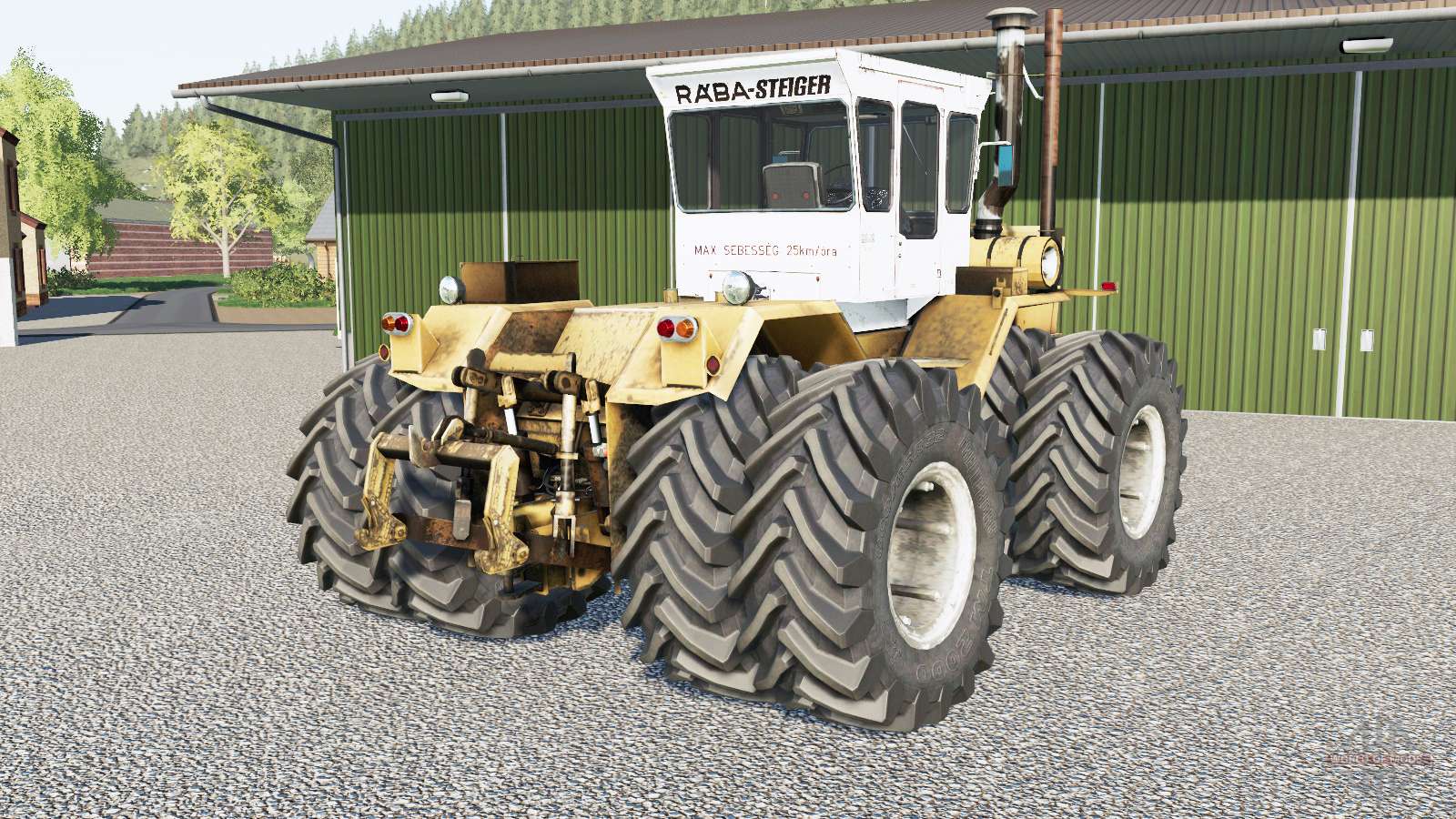

Raba 360

Name: Raba 360
Brand: Raba

Raba 360 — Raba-Steiger Series · 310 hp. Reference specifications; pending source verification.

The Raba 360 is a tractor with a rated output of 310 horsepower, categorising it among the higher-powered machines in its class. It was manufactured from 1980 to 1989. The 360 is powered by a 6-cylinder turbocharged diesel liquid-cooled engine, which drives through a four-wheel drive system with a 10-speed gearbox. It is suited to tasks requiring approximately 1,500 acres of coverage.

Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.

Rated power

310 hp

Catalogue coverage

Variants represented

Richest spec table

24 rows

Recorded power

310 hp

Transmissions

10-speed

Production years

1980-1989

Verified variants

No linked source document is currently displayed; verify critical figures with the manufacturer or dealer.

Hover a source tag to verify

Overview

ManufacturerRabaReference

Four-wheel Drive (4WD) tractorReference

Built in Gyor, HungaryReference

Four-wheel driveReference

Articulated power steeringReference

Cab standard.Reference

Engine

Cummins 14.0L 6-cyl dieselReference

Fuel tank780.1 LReference

Engine231.2 kWReference

Cummins NTA-855Reference

turbocharged dieselReference

6-cylinderReference

liquid-cooledReference

Displacement14.0 LReference

Bore/Stroke140 x 152 mmReference

Power231.2 kWReference

Rated RPM2100Reference

Transmission

10-speedReference

TransmissionDana-SpicerReference

Gears10 forward and 2 reverseReference

Dimensions

Front tire20.8R34Reference

Rear tire20.8R34Reference

Standard tires (ag)Front: 20.8R34. Rear: 20.8R34Reference

Optional tires (ag)Front: 30.5R34. Rear: 30.5R34Reference

Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
