Lawn Tractor · 2013Unverified

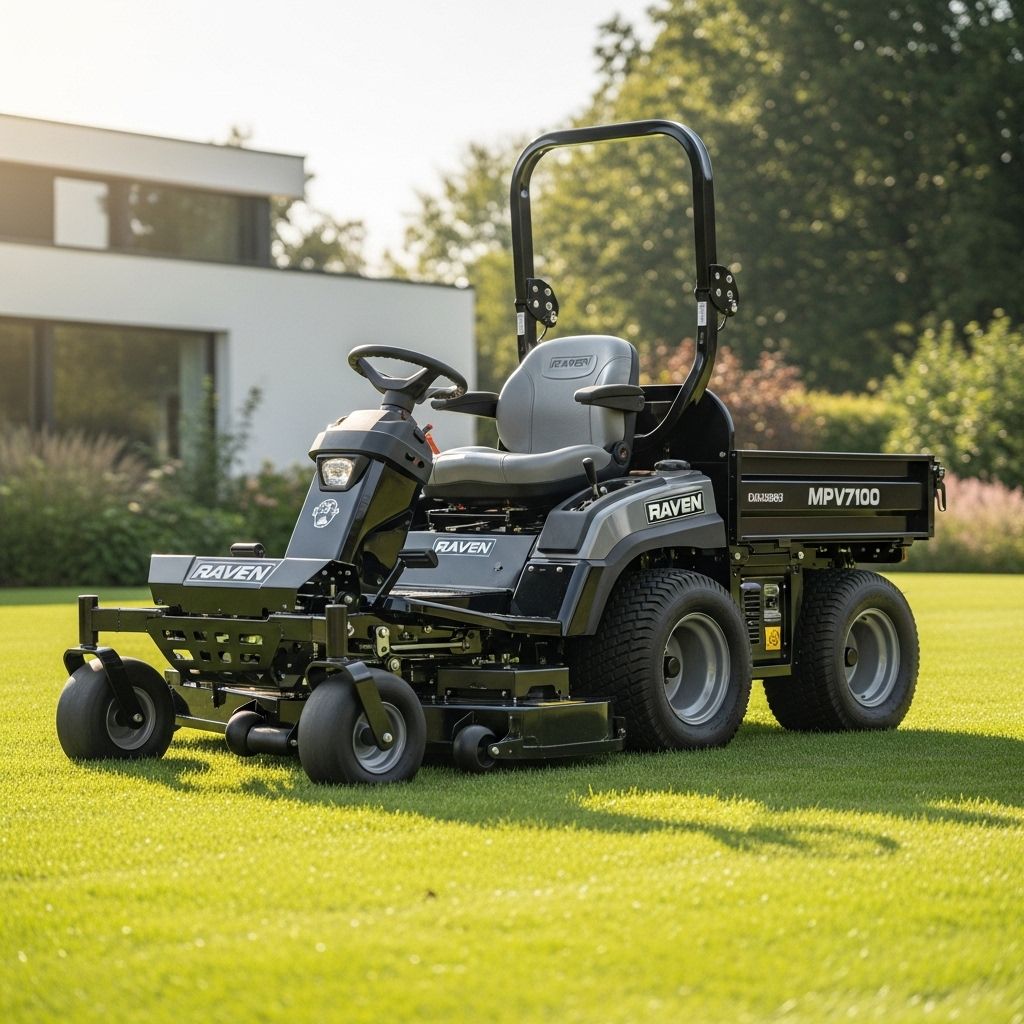

Raven MPV-710
Raven MPV-710 — Garden tractor · 12 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
12 hp
Weight
335 kg
Hover a source tag to verify
Overview
ManufacturerRaven (a part of RATO)Reference
Garden tractorReference
Original price was $2,999 in 2013Reference
The Raven MPV-710 is a hybrid vehicle using an electric driveline with a gasoline engine to power the generator. The MPV-710 is capable of operating in electric-only mode. At the end of 2013 all Raven MPV-710 models were recalled.Reference
Drive4x4 4WDReference
SteeringmanualReference
Open operator station.Reference
Engine
12HP RATO 420cc 1-cyl gasolineReference
Fuel tank17.0 LReference
RATOReference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement25.63 ciReference
Power8.9 kWReference
Fuel systemcarburetorReference
StarterelectricReference
Starter volts12Reference
SparkplugTorch F7TCReference
Oil capacity1.1 LReference
Oil change25 hReference
Transmission
electric-driveReference
Typeelectric-driveReference
Gearsinfinite forward and reverse (2-range)Reference
PTO & Hydraulics
Mid PTOindependentReference
Clutchelectric-driveReference
Dimensions
Wheelbase111 cmReference
Weight335 kgReference
Front tire18x8.5-8Reference
Rear tire20x8-10Reference
Lawn/turf front18x8.5-8Reference
Lawn/turf rear20x8-10Reference
Length193 cmReference
Height127 cmReference
Raven MPV-710 attachments
46" mid-mount mower deckReference
Electrical
GroundnegativeReference
Charging systemAC generatorReference
Watts (rated)6500Reference
Watts (max)7100Reference
Batteries2Reference
Battery volts12 (starting)Reference
Battery volts48 (main)Reference
Attachment overview
The Raven was advertised as having a 500-pound maximum towing capacity.Reference
46" Mower deck
Typemid-mount RavenReference
Type2-bladeReference
Cutting width116 cmReference
Beltelectric-driveReference
Overall width142 cmReference
Cut height2 to 12 cmReference
Cut positions10Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
