Lawn Tractor · 2014Unverified

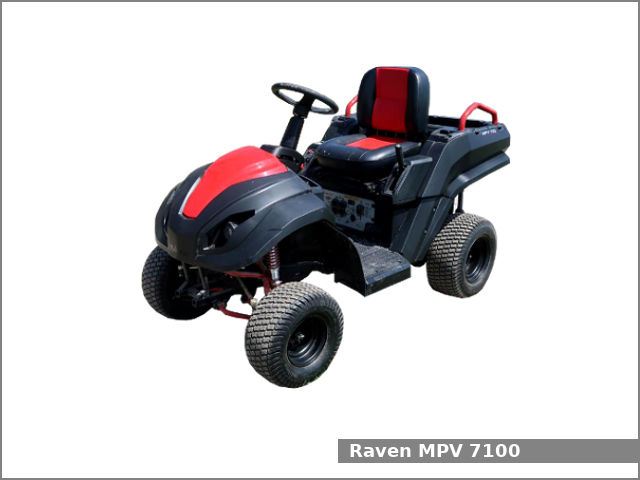

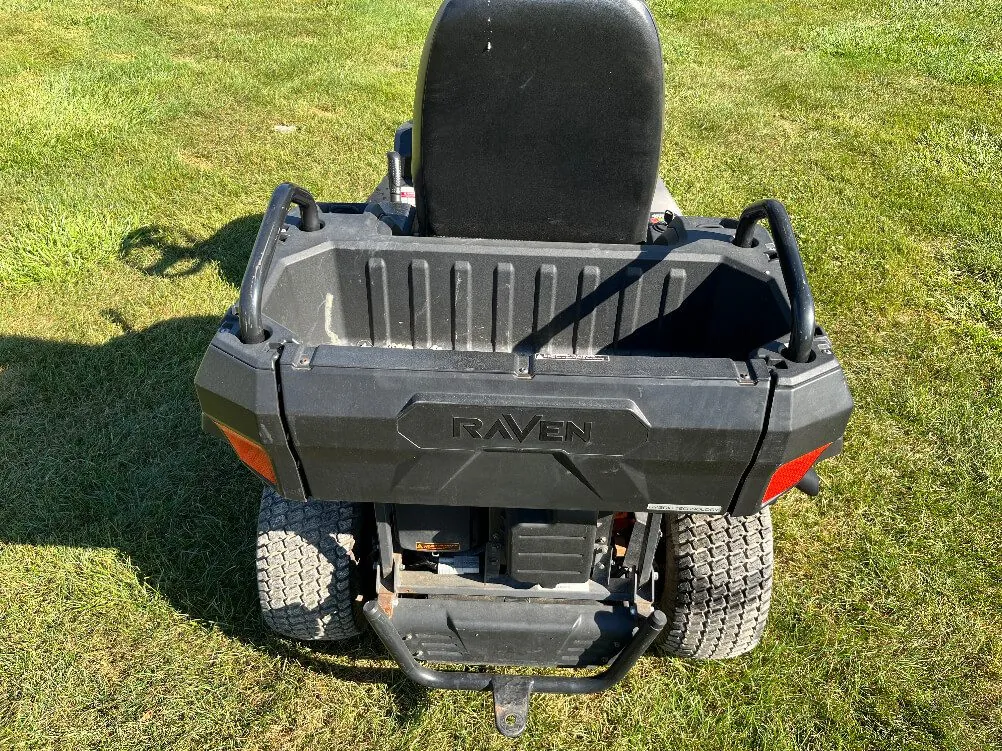

Raven MPV-7100
Raven MPV-7100 — Garden tractor · 13 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
13 hp
Weight
396 kg
Hover a source tag to verify
Overview
ManufacturerRaven (a part of RATO)Reference
Garden tractorReference
The Raven MPV-7100 is a hybrid vehicle using an electric driveline with a gasoline engine to power the generator. The MPV-7100 is capable of operating in electric-only mode.Reference
Two-wheel driveReference
Open operator station.Reference
Variants
7100red/blackReference
7100BblackReference
7100STrue Timber camoReference
Engine
12.7HP 382cc 1-cyl gasolineReference
Fuel tank18.9 LReference
gasolineReference
1-cylinderReference
air-cooledReference
Displacement23.31 ciReference
Bore/Stroke90 x 66 mmReference
Power9.5 kWReference
StarterelectricReference
Starter volts12Reference
Dimensions
Weight396 kgReference
Front tire18x8.5-8Reference
Rear tire20x8-10Reference
Lawn/turf front18x8.5-8Reference
Lawn/turf rear20x8-10Reference
Length215 cmReference
Width109 cmReference
Height127 cmReference
Raven MPV-7100 attachments
46" mid-mount mower deckReference
Electrical
GroundnegativeReference
Battery volts12Reference
46" Mower deck
Typemid-mount RavenReference
Type2-bladeReference
Cutting width116 cmReference
Overall width139 cmReference
Transmission
Gearsinfinite forward and reverseReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
