Tractor · 1986Unverified

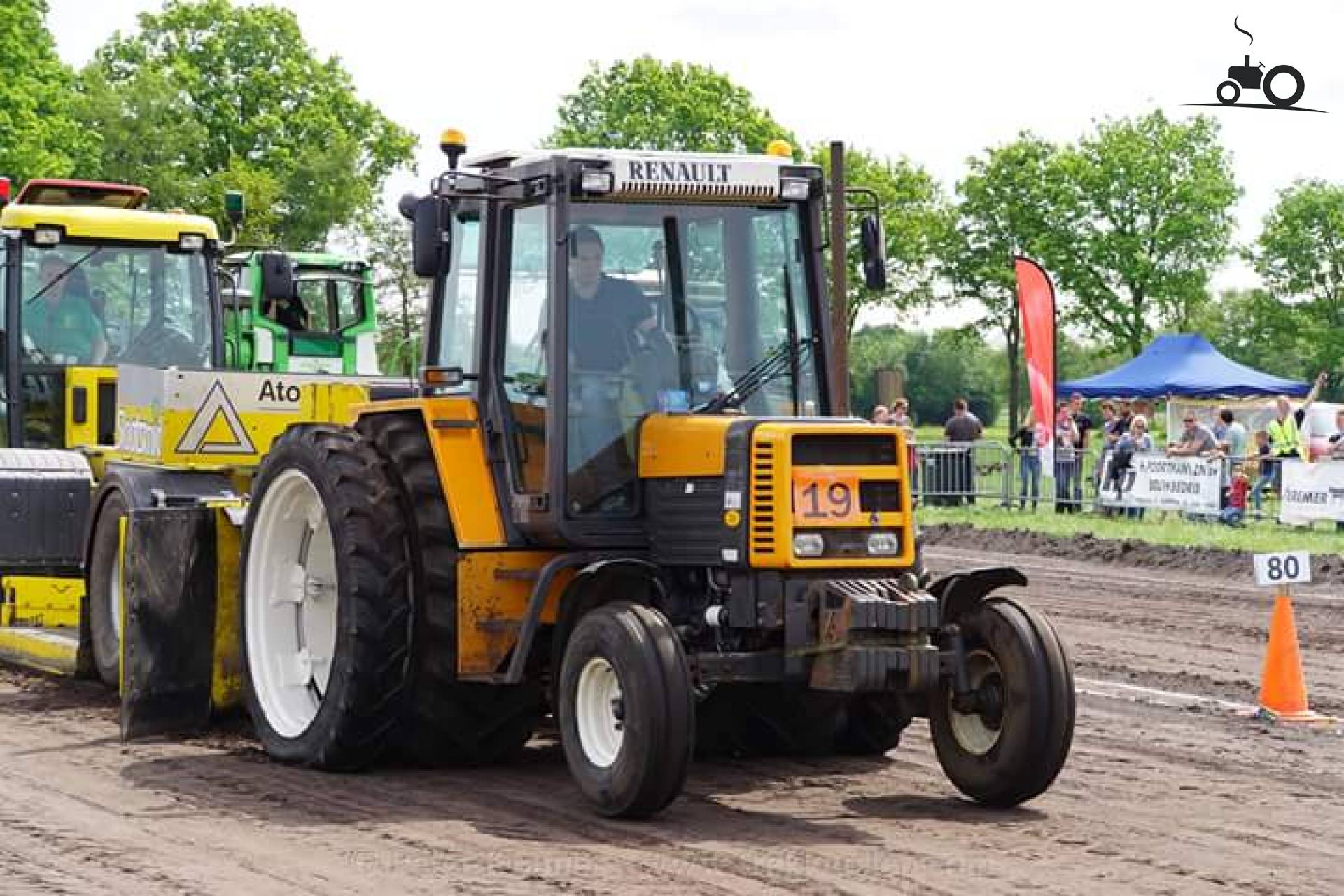

Renault 103-12
Renault 103-12 · 93 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
93 hp
Weight
4687 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Two-wheel driveReference
Steeringhydrostatic powerReference
Dry disc brakesReference
standardReference
Variants
103-144WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank124.9 LReference
Engine69.4 kWReference
MWM TD226-4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power69.4 kWReference
Rated RPM2350Reference
Torque318.1 NmReference
Torque RPM1500Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Total flow42.8 lpmReference
Total flow60.9 lpmReference
Rear TypeIIReference
Rear lift7121 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase247 cmReference
Weight4687 kgReference
Front tire9.00-16Reference
Rear tire16.9-38Reference
Ag front9.00-16Reference
Ag rear16.9-38Reference
Length430 cmReference
Height281 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
