Tractor · 1981Unverified

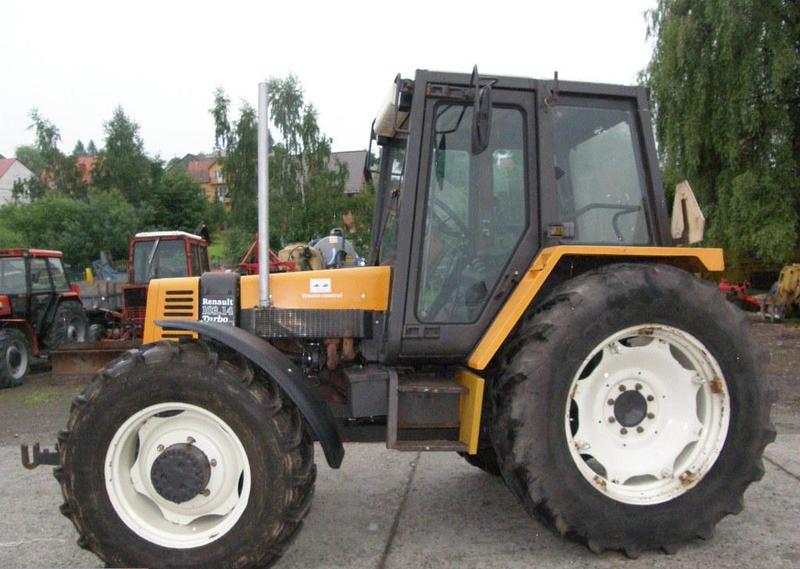

Renault 103-14 TX
Renault 103-14 TX — TX Series · 87 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
87 hp
Weight
4921 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heat.Reference
Variants
103-122WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank124.9 LReference
Engine68.0 kWReference
MWM TD226-4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power68.0 kWReference
Air cleaneroil bathReference
Rated RPM2350Reference
Torque310.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and reverseReference
Clutch310mm cerametallic discReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)65.1 kWReference
Pressure180.0 barReference
Total flow41.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4252 kgReference
Rear lift4874 kgReference
Rear PTOindependentReference
ClutchorganicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM644@2350Reference
Engine RPM1105@2350Reference
Dimensions
Wheelbase247 cmReference
Weight4921 kgReference
Front tire14.9-28Reference
Rear tire16.9-38Reference
Standard tires (ag)Front: 14.9-28. Rear: 16.9-38Reference
Optional tires (ag)Front: 12.4-28. Rear: 13.6-38Reference
Length430 cmReference
Width202 cmReference
Height281 cmReference
Max weight6650 kgReference
Clearance (front axle)49 cmReference
Clearance (rear axle)53 cmReference
Front tread160 to 199 cmReference
Rear tread139 to 199 cmReference
Electrical
Charging amps50Reference
Battery volts12Reference
Battery AH90Reference
Speeds
With 16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
