Tractor · 1991Unverified

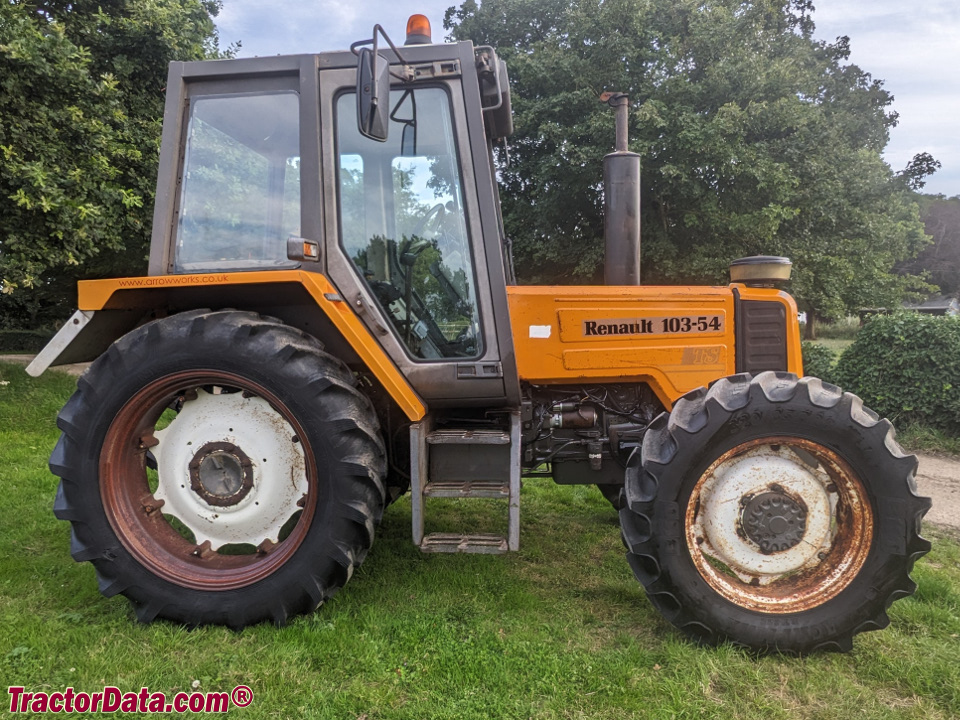

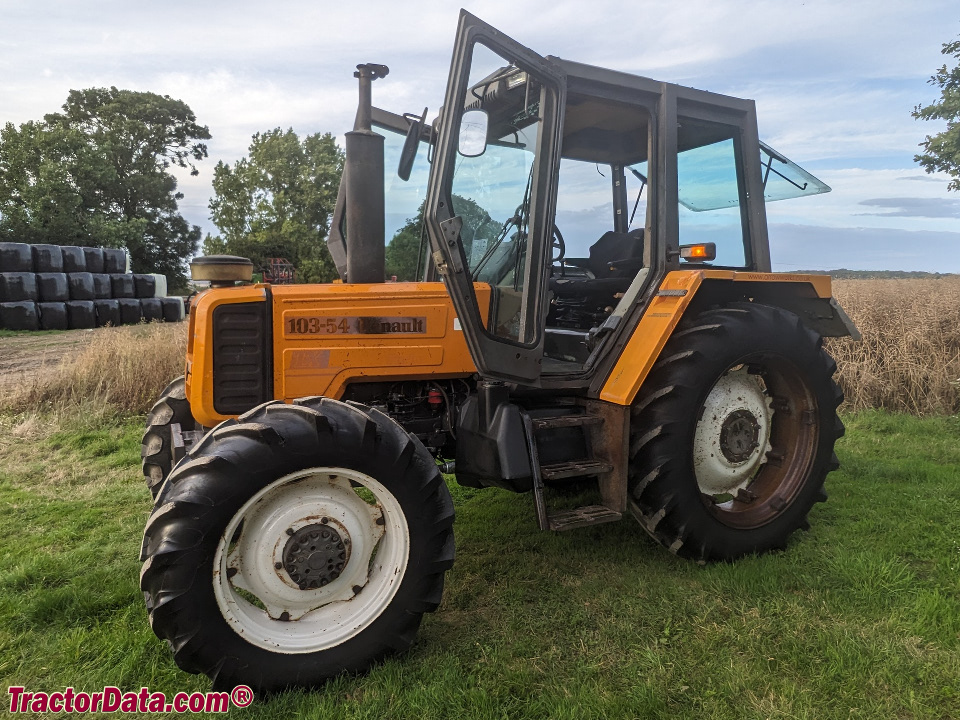

Renault 103-54
Renault 103-54 — Row-Crop tractor · 102 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
102 hp
Weight
10051 to 10371 pounds
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Four-wheel driveReference
Differential lockmechanical rearReference
Power steeringReference
Wet disc brakesReference
Cab standard with air-conditioning.Reference
Variants
103-522WDReference
103-544WDReference
Engine
MWM 4.2L 4-cyl dieselReference
Fuel tank129.8 LReference
Engine (gross)76.1 kWReference
Engine (net)69.4 kWReference
MWM TD226-4Reference
turbocharged dieselReference
4-cylinderReference
liquid-cooledReference
Displacement4.2 LReference
Bore/Stroke105 x 120 mmReference
Power (net)69.4 kWReference
Power (gross)76.1 kWReference
Air cleanerdryReference
Rated RPM2350Reference
Torque316.1 NmReference
Torque RPM1500Reference
Starter typeelectricReference
Transmission
16-speedReference
24-speedReference
Gears16 forward and reverseReference
Four gears in two ranges with two-speed splitterReference
Gears24 forward and 8 reverseReference
PTO & Hydraulics
Valves2 to 4Reference
Pump flow41.6 lpmReference
Total flow73.8 lpmReference
Steering flow27.3 lpmReference
Controllower-link draft sensingReference
Rear lift3722 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM644@2350Reference
Engine RPM1105@2350Reference
Front PTOindependentReference
Front PTO Type540 (1.375)Reference
Engine RPM1036@2350Reference
Dimensions
Wheelbase247 cmReference
Weight10051 to 10371 poundsReference
Front tire14.9-28Reference
Rear tire16.9-38Reference
Standard tires (ag)Front: 14.9-28. Rear: 16.9-38Reference
Optional tires (ag)Front: 16.9-38 12.4-28. Rear: 13.6-38Reference
Optional tires (ag)Front: 13.6-28. Rear: 16.9-38Reference
Optional tires (ag)Front: 13.6-28. Rear: 18.4-38Reference
Length430 cmReference
Width202 cmReference
Height (cab)290 cmReference
ROPS Weight4559 kgReference
Cab Weight4704 kgReference
Clearance (front axle)50 cmReference
Clearance (rear axle)41 cmReference
Speeds
With 16.9-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
