Tractor · 1992Unverified

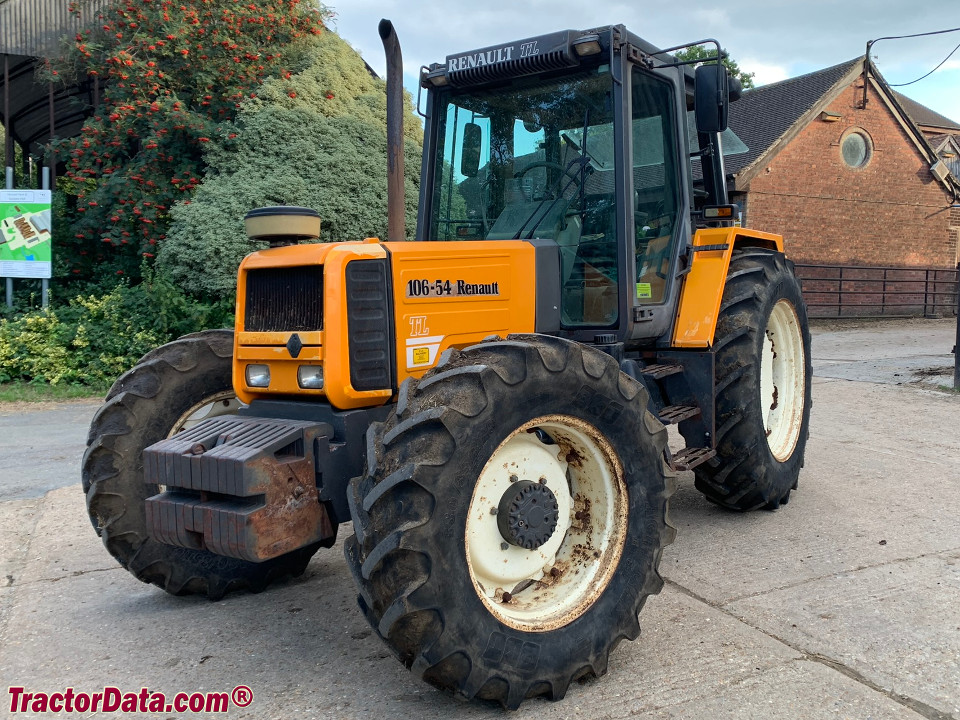

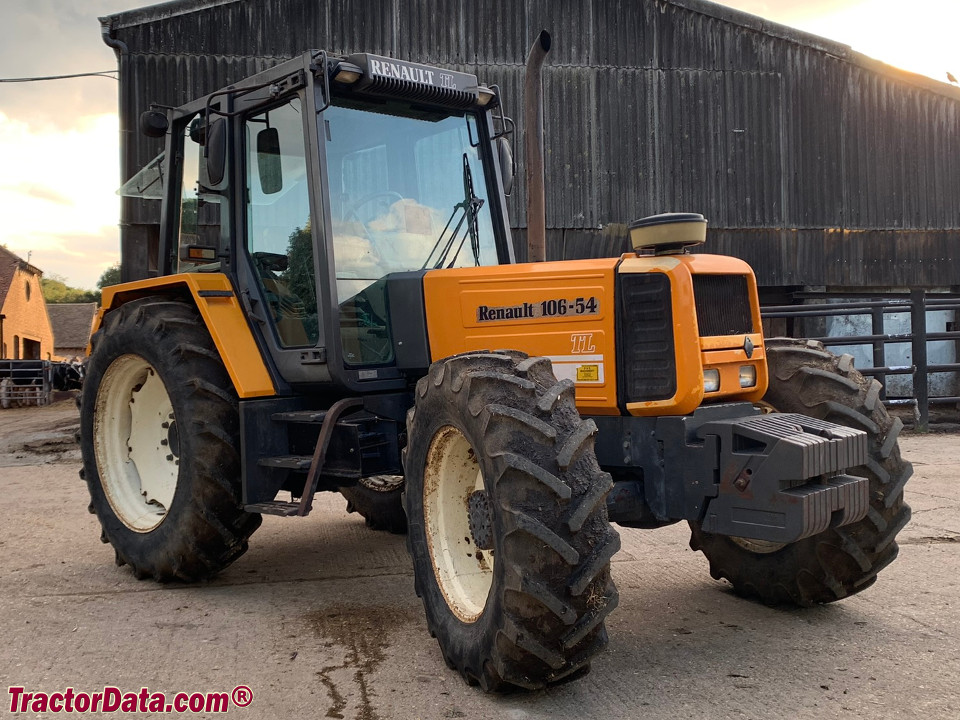

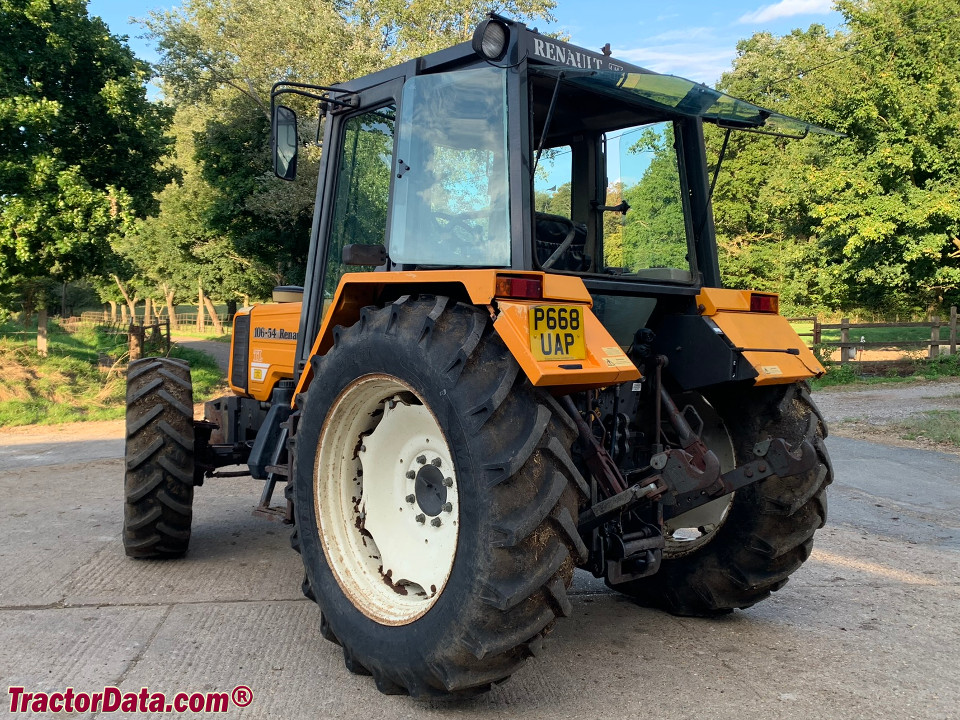

Renault 106-54 TL
Renault 106-54 TL — Row-Crop tractor · 100 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
100 hp
Weight
4785 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Four-wheel driveReference
Steeringhydrostatic powerReference
Wet disc brakesReference
Cab tandardReference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank129.8 LReference
Engine74.6 kWReference
MWM D226-B6Reference
dieselReference
6-cylinderReference
Displacement6.2 LReference
Bore/Stroke100 x 120 mmReference
Power74.6 kWReference
Rated RPM2350Reference
Torque376.0 NmReference
Torque RPM1500Reference
Transmission
16-speedReference
Gears16 forward and reverseReference
PTO & Hydraulics
Total flow46.6 lpmReference
Rear lift7121 kgReference
Rear PTO Type540/1000Reference
Dimensions
Wheelbase274 cmReference
Weight4785 kgReference
Front tire14.9-28Reference
Rear tire16.9-38Reference
Ag front14.9-28Reference
Ag rear16.9-38Reference
Length454 cmReference
Height290 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
