Tractor · 1981Unverified

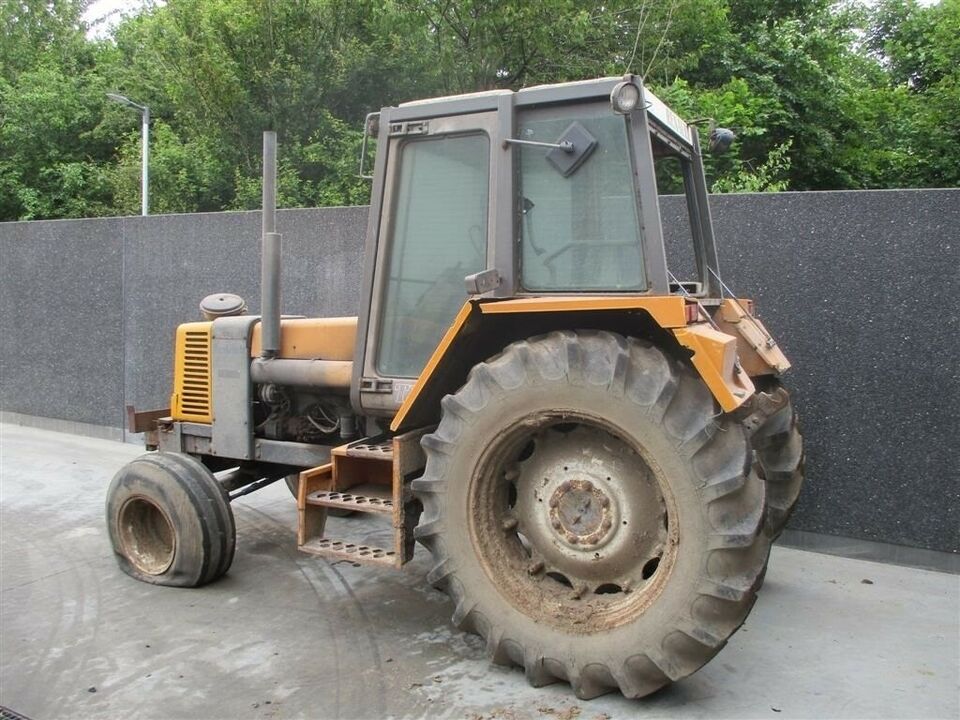

Renault 113-12 TX
Renault 113-12 TX — TX Series · 97 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
97 hp
Weight
5220 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Two-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heat.Reference
Variants
113-144WDReference
Engine
MWM 5.7L 6-cyl dieselReference
Fuel tank199.8 LReference
Engine76.0 kWReference
MWM D227-6Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement5.7 LReference
Bore/Stroke98 x 120 mmReference
Power76.0 kWReference
Air cleanerdryReference
Rated RPM2350Reference
Torque347.0 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and reverseReference
Clutch330mm cerametallic discReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)72.3 kWReference
Pressure180.0 barReference
Total flow41.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4670 kgReference
Rear lift5292 kgReference
Rear PTOindependentReference
ClutchorganicReference
Rear PTO Type540/1000 (1.375)Reference
Dimensions
Wheelbase274 cmReference
Weight5220 kgReference
Front tire16.9-28Reference
Rear tire18.4-38Reference
Ag front16.9-28Reference
Ag rear18.4-38Reference
Length508 cmReference
Height292 cmReference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
