Tractor · 1986Unverified

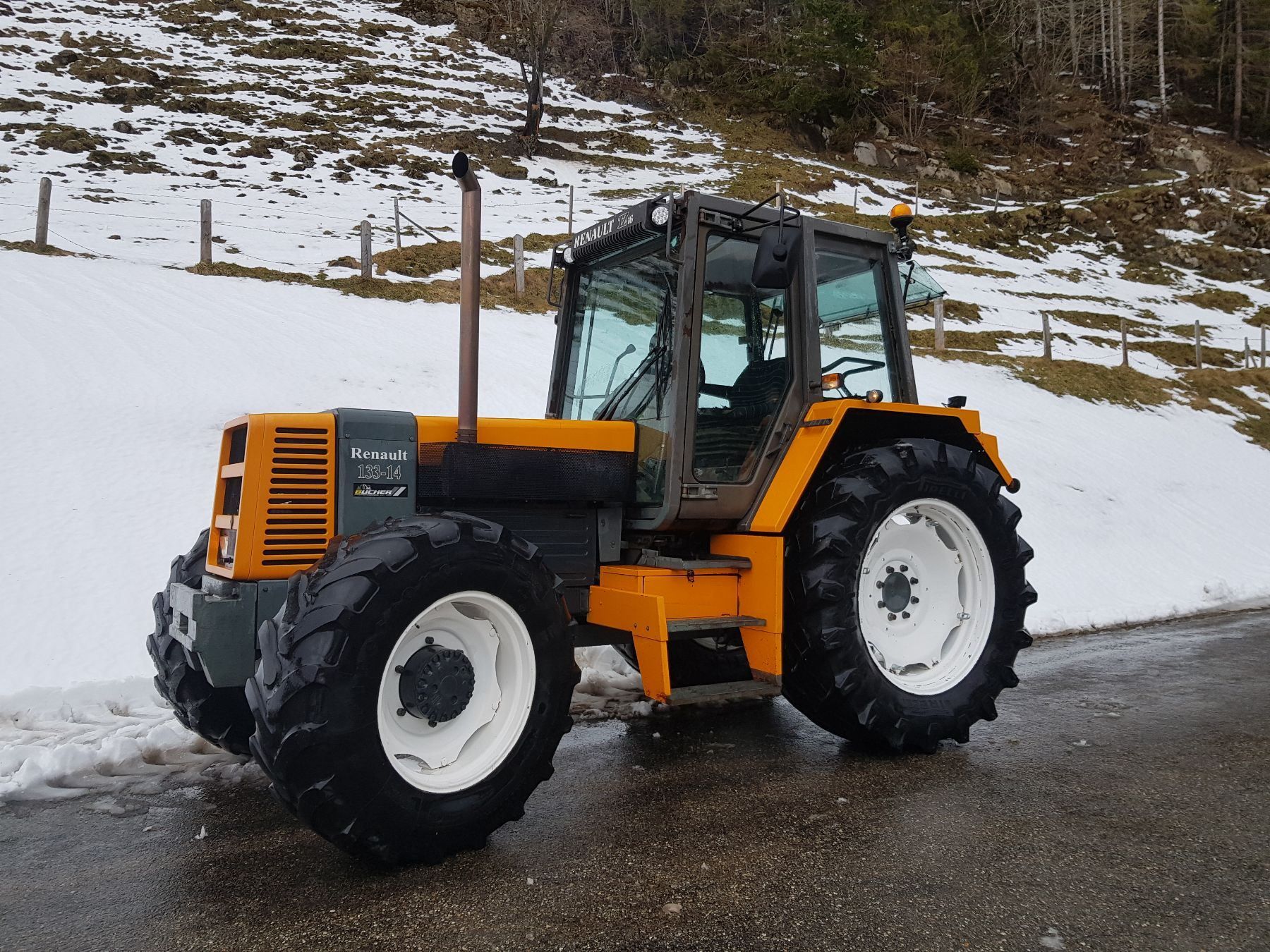

Renault 133-14
Renault 133-14 · 123 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
123 hp
Weight
5316 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Four-wheel driveReference
Power steeringReference
Dry disc brakesReference
Cab standard with air-conditioning.Reference
Variants
TE-16exportReference
TX-16standardReference
TZ-16deluxeReference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank199.8 LReference
Engine91.7 kWReference
MWM D226-6Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power91.7 kWReference
Air cleanerdryReference
Rated RPM2350Reference
Torque412.1 NmReference
Torque RPM1500Reference
Transmission
16-speed mechanical shuttleReference
Typemechanical shuttleReference
Gears16 forward and reverseReference
Clutchdry discReference
PTO & Hydraulics
Pressure200.0 barReference
Total flow60.9 lpmReference
Rear TypeIIReference
Rear TypeIIIReference
Rear lift8681 kgReference
Rear PTOindependentReference
Rear PTO Type540 (1.375)Reference
Engine RPM644@2350Reference
Engine RPM1105@2350Reference
Front PTOindependentReference
Front PTO Type540 (1.375)Reference
Engine RPM1036@2350Reference
Dimensions
Wheelbase274 cmReference
Weight5316 kgReference
Front tire16.9-28Reference
Rear tire18.4-38Reference
Ag front16.9-28Reference
Ag rear18.4-38Reference
Length496 cmReference
Width205 cmReference
Height (cab)292 cmReference
Clearance (front axle)52 cmReference
Clearance (rear axle)56 cmReference
Front tread160 to 199 cmReference
Rear tread150 to 199 cmReference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
