Tractor · 1981Unverified

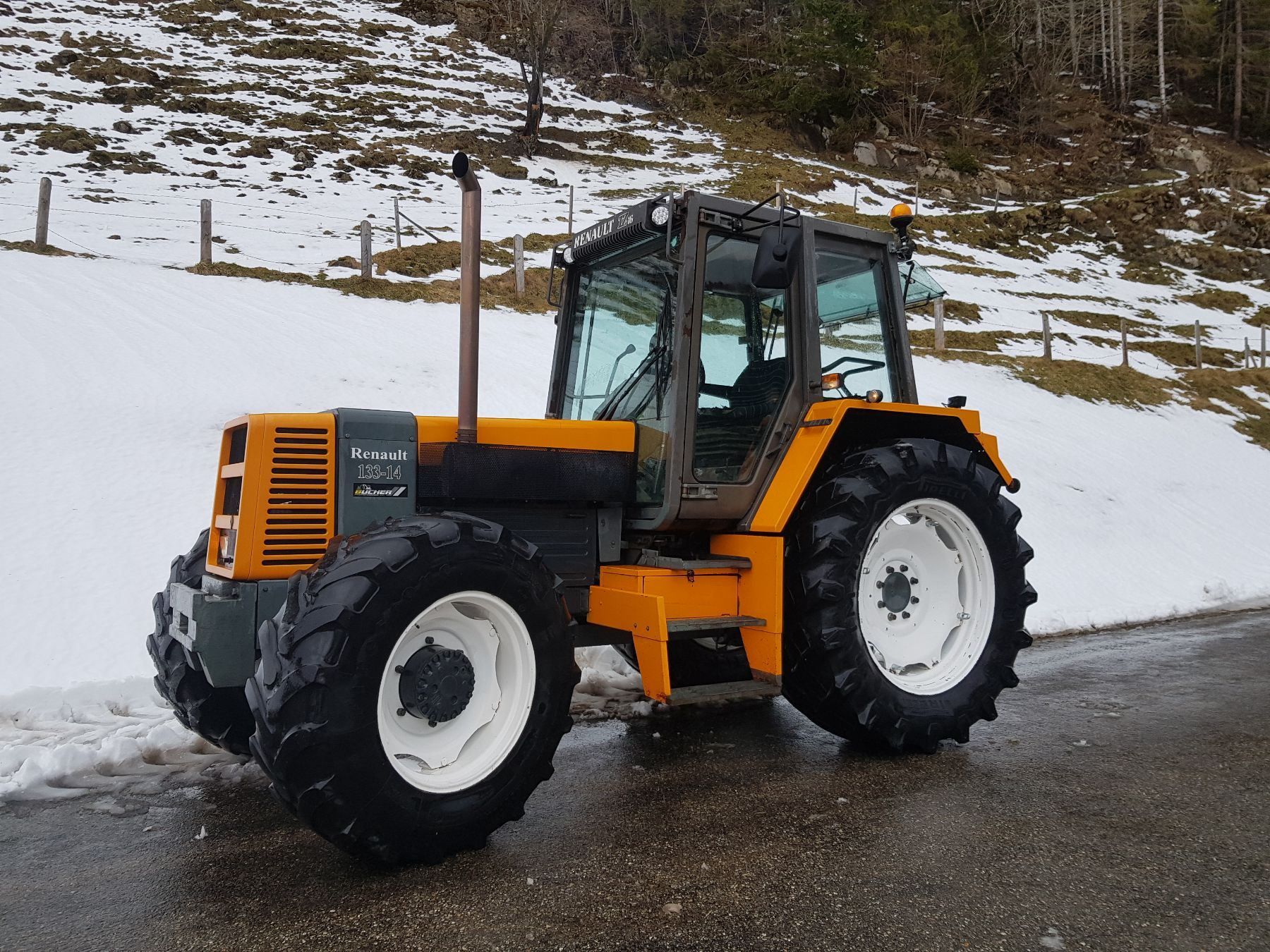

Renault 133-14 TX
Renault 133-14 TX — TX Series · 115 hp. Reference specifications; pending source verification.
Provisional listing — the headline figure is shown; full specifications are auto-generated and pending verification against published sources.
Rated power
115 hp
Weight
5315 kg
Hover a source tag to verify
Overview
ManufacturerRenaultReference
Row-Crop tractorReference
Four-wheel driveReference
Power steeringReference
Hydraulic dry disc brakesReference
Cab standard with heat.Reference
Engine
MWM 6.2L 6-cyl dieselReference
Fuel tank199.8 LReference
Engine90.0 kWReference
MWM D226-6Reference
dieselReference
6-cylinderReference
liquid-cooledReference
Displacement6.2 LReference
Bore/Stroke105 x 120 mmReference
Power90.0 kWReference
Air cleanerdryReference
Rated RPM2350Reference
Torque412.1 NmReference
Torque RPM1500Reference
Starter volts12Reference
Transmission
12-speed synchronizedReference
16-speed creeperReference
TypesynchronizedReference
Gears12 forward and reverseReference
Clutch330mm cerametallic discReference
TypecreeperReference
Gears16 forward and reverseReference
PTO & Hydraulics
PTO (claimed)86.0 kWReference
Pressure180.0 barReference
Total flow41.6 lpmReference
Rear TypeIIReference
Controlposition and draft controlReference
Rear lift4670 kgReference
Rear lift5292 kgReference
Rear PTOindependentReference
ClutchorganicReference
Rear PTO Type540/1000 (1.375)Reference
Engine RPM644@2350Reference
Engine RPM1105@2350Reference
Dimensions
Wheelbase274 cmReference
Weight5315 kgReference
Front tire16.9-28Reference
Rear tire18.4-38Reference
Standard tires (ag)Front: 16.9-28. Rear: 18.4-38Reference
Length508 cmReference
Width205 cmReference
Height292 cmReference
Max weight8500 kgReference
Clearance (front axle)53 cmReference
Clearance (rear axle)56 cmReference
Front tread160 to 199 cmReference
Rear tread150 to 199 cmReference
Electrical
Charging amps50Reference
Batteries2Reference
Battery volts12Reference
Battery AH150Reference
Speeds
With 18.4-38 rear tires.Reference
Values normalized to UK metric units. Every figure is traced to at least one source; verified specs are cross-checked against two or more.
